Schneider ATV71HU75N4Z Replacement for Altivar 71: Seamless Migration to Modern Drive Control

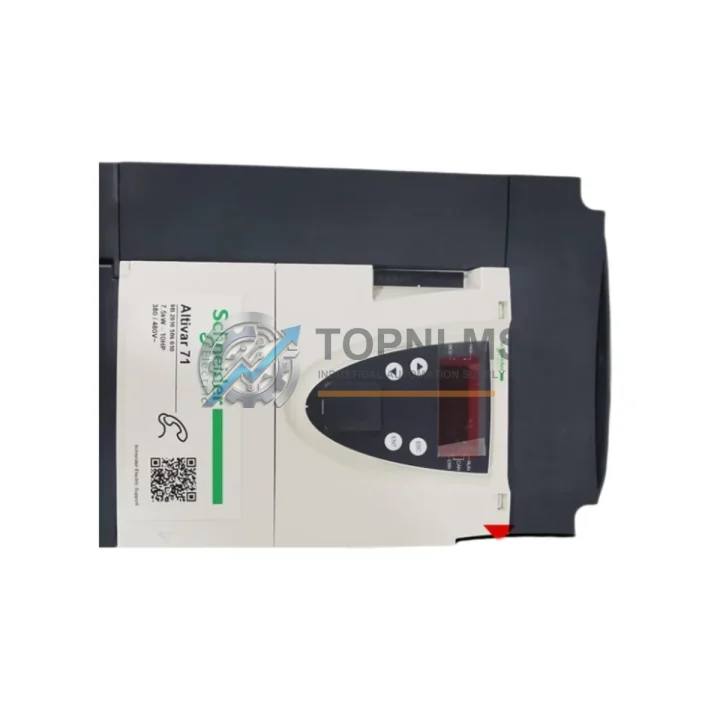

The Schneider Electric ATV71HU75N4Z is a 7.5 kW (10 HP) three-phase variable frequency drive from the Altivar 71 series, designed for demanding industrial applications including pumps, fans, compressors, hoists, and conveyor systems. As legacy Altivar 71 units approach end-of-service life or become increasingly difficult to source as original spares, plant engineers and procurement teams are actively seeking verified replacement units that preserve existing wiring infrastructure, communication architecture, and control cabinet footprint. TOPNLMS supplies tested ATV71HU75N4Z drives from bonded stock, enabling rapid like-for-like substitution with minimal engineering intervention.

The ATV71HU75N4Z accepts a 380–480 V AC three-phase input and delivers a continuous output current of 17 A at 7.5 kW, making it a direct electrical match for the majority of Altivar 71 installations in this power class. The drive retains the standard RJ45 Modbus RTU port and the integrated CANopen interface, meaning existing fieldbus wiring to a Modicon M340, Modicon Premium, or Modicon Quantum PLC rack does not require re-termination. Where the upstream controller communicates via Profibus DP or DeviceNet, the corresponding VW3A3607 or VW3A3609 option card slots remain physically and electrically compatible with this replacement unit, preserving the original communication topology without reprogramming the master PLC.

From a mechanical standpoint, the ATV71HU75N4Z occupies the same DIN-rail and panel-mount envelope as earlier Altivar 71 units in the same power bracket. Control cabinet integrators will find that the existing cable entry points, cooling clearances, and mounting hole pattern align directly, eliminating the need for bracket adapters or cabinet modifications. The 24 V DC logic supply input, the relay output terminals, and the analog I/O pinout on the control terminal block are pin-compatible with the original wiring harness, so field technicians can reconnect the existing cable loom without rewiring or relabelling conductors.

For sites running Altivar 71 drives alongside ATV71 I/O extension modules such as the VW3A3201 encoder feedback card or the VW3A3202 extended I/O card, these option modules transfer directly into the replacement drive’s option slots. This is particularly relevant in tension-control and positioning applications where encoder feedback is critical to process accuracy. Similarly, the braking resistor connection terminals and the DC bus choke wiring points are dimensionally identical, so existing braking resistor assemblies and line reactors remain in service without modification.

Parameter migration is straightforward. If the original drive’s parameter set was saved to a VW3A1101 keypad or backed up via SoMove software over the USB/RJ45 interface, the configuration file can be restored to the replacement ATV71HU75N4Z in minutes. SoMove recognises the drive type automatically and flags any parameter differences for review before writing, reducing commissioning risk on live production lines. For sites without a saved parameter file, TOPNLMS can supply a factory-default unit pre-configured to a customer-specified parameter list upon request, further reducing on-site commissioning time.

In multi-drive installations where the ATV71HU75N4Z operates alongside other Altivar 71 variants — such as the ATV71HU55N4Z (5.5 kW), ATV71HD11N4Z (11 kW), or ATV71HD15N4Z (15 kW) — the replacement unit integrates into the existing CANopen or Modbus network without requiring changes to the master node address table or the PLC function block library. Power supply modules, 24 V SMPS units, and surge protection devices already installed in the control cabinet continue to serve the replacement drive without derating.

For applications transitioning from older Altivar 58 or Altivar 66 platforms to the Altivar 71 architecture, the ATV71HU75N4Z provides a well-documented migration path supported by Schneider Electric’s published cross-reference guides. Terminal adapters and parameter conversion utilities are available to bridge the wiring and software differences, and TOPNLMS technical staff can advise on the specific adapter references required for a given legacy installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Altivar 71 migration or retrofit typically involves more than the drive itself. When replacing the ATV71HU75N4Z, procurement teams commonly source the VW3A1101 remote keypad for parameter backup and on-site commissioning, the VW3A3607 Profibus DP communication card where the plant network runs on Profibus, and the VW3A3202 extended I/O option card for applications requiring additional analog or digital channels. Line-side protection is typically provided by a GV2ME or GV3ME motor circuit breaker sized to the drive’s input current, while a 24 V DC PHASEO ABL8 power supply module feeds the control circuit logic. In cabinet layouts where the drive shares a backplane with a Modicon M340 BMX P34 CPU and BMX DDI or BMX AMI I/O modules, the replacement ATV71HU75N4Z connects to the same Modbus segment without any changes to the rack configuration. For multi-axis applications, a shared DC bus connection to adjacent Altivar 71 units via the PA/PC terminals reduces overall energy consumption and simplifies the braking resistor sizing calculation. TOPNLMS can supply all associated components as part of a consolidated shipment to reduce lead time and freight cost.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor cable and contactor wiring?
Yes. The U/V/W output terminals and the R/S/T input terminals maintain the same physical layout and torque specifications as the original Altivar 71 unit. No rewiring of the power circuit is required.

Q: Will my existing Modbus RTU program work without modification?
Yes. The ATV71HU75N4Z uses the same Modbus register map as other Altivar 71 drives. The PLC function blocks and communication parameters do not need to be changed.

Q: Does the replacement drive fit in the same cabinet cutout?
Yes. The mechanical envelope and mounting hole pattern are identical to the original Altivar 71 unit in this power class. No cabinet modification is required.

Q: How do I restore my original parameter set?
If you have a SoMove backup file (.scs) or a VW3A1101 keypad with the saved configuration, the parameter set can be written to the replacement drive in minutes. TOPNLMS can also pre-load a customer-supplied parameter file before shipment.

Q: What if my site uses CANopen instead of Modbus?
The ATV71HU75N4Z includes an integrated CANopen port. No additional communication card is required for CANopen networks. The node address and baud rate are set via the drive keypad or SoMove.

Q: Is the replacement suitable for hoist and crane applications?
Yes. The Altivar 71 series is approved for hoisting applications. The replacement unit supports the same motor control laws (SVC, FVC, ENA) and safety functions applicable to hoist duty cycles.

Warranty Assurance

Every ATV71HU75N4Z supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection to verify that the drive initialises correctly, displays no fault codes, and that all terminal blocks and option card slots are undamaged. Units are packed in anti-static foam with original-style carton protection to prevent transit damage.

In the event of a confirmed warranty claim, TOPNLMS will arrange a replacement unit or issue a credit note within the agreed response window. Our technical team is available to assist with installation queries, parameter configuration, and fault diagnosis by email or phone throughout the warranty period. All shipments include a test report and packing list. Export documentation, including commercial invoice and certificate of origin, is provided as standard for international orders.

For urgent breakdown situations, expedited shipping via DHL Express or FedEx International Priority is available to most destinations, with same-day dispatch for orders confirmed before 14:00 CST.
