Schneider Electric PN072549P703 Original Industrial Spare ATV71 Compatible

Product Overview

Schneider Electric PN072549P703 Original Industrial Spare ATV71 Compatible: Ensuring System Stability in Critical Drive Applications

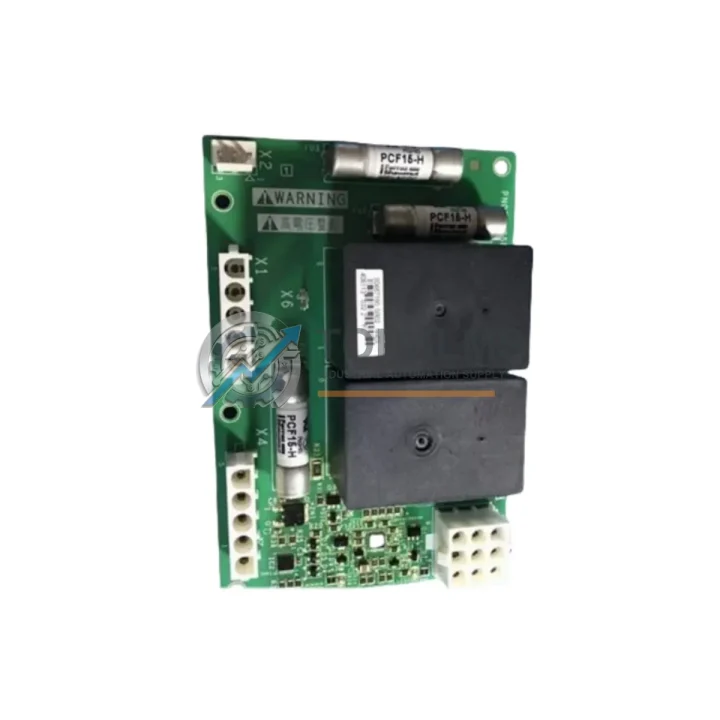

The Schneider Electric PN072549P703 is an original Gate Drive PCB Board engineered specifically for the Altivar 71 (ATV71) variable frequency drive series. In industrial environments where motor control reliability is non-negotiable — from heavy manufacturing lines and HVAC systems to water treatment facilities and material handling conveyors — this board sits at the heart of the drive’s IGBT switching logic. Its failure is one of the most common causes of ATV71 drive shutdown, making it a high-priority spare for any maintenance team managing Schneider Electric drive assets.

Sourced directly from authorized supply channels, every PN072549P703 unit stocked by TOPNLMS undergoes pre-shipment functional verification. Each unit ships with a 12-month quality warranty, ensuring your procurement team can plan with confidence. Whether you are responding to an unplanned drive fault or building a preventive spare parts inventory, this board delivers the exact electrical and mechanical compatibility required for a drop-in replacement without firmware reconfiguration or mechanical modification.

Critical Technical Specs

Preventive Maintenance Strategy for ATV71 Drive Systems

A gate drive board failure rarely occurs in isolation. In most field cases, the root cause traces back to a cascade of stress events — DC bus voltage spikes, cooling degradation, or sustained overload — that affect multiple components within the same drive cabinet simultaneously. A disciplined preventive maintenance strategy for ATV71 installations should therefore treat the PN072549P703 replacement as part of a broader inspection and spare parts review.

When replacing or inspecting the gate drive PCB, maintenance engineers should simultaneously evaluate the ATV71 control board (the logic interface that issues gate signals) for signs of corrosion, burnt traces, or connector fatigue. The ATV71 power board and associated IGBT module should be checked for thermal damage, as a shorted IGBT is frequently the upstream cause of gate drive board failure. If the IGBT has failed short-circuit, replacing only the gate drive board without inspecting the power stage will result in repeat failure.

The ATV71 fan assembly and internal cooling ducts deserve attention during every scheduled shutdown. Blocked airflow is a leading contributor to thermal stress on PCB components. Alongside the fan, inspect the DC bus capacitor bank for bulging, leakage, or elevated ESR — capacitor degradation creates voltage ripple that directly stresses gate drive circuitry. Many experienced maintenance teams keep a set of ATV71 bus capacitors as standard shelf stock alongside the gate drive board.

At the cabinet level, check the input line reactor or EMC filter module for continuity and insulation integrity. These upstream components protect the drive from grid-side disturbances; a degraded line reactor allows voltage transients to propagate into the drive’s rectifier and DC bus, accelerating wear on downstream PCBs. Similarly, inspect all control wiring terminal blocks and signal cable connectors between the ATV71 and the PLC or DCS controller — loose or corroded terminals cause intermittent faults that are often misdiagnosed as board failures.

For facilities running multiple ATV71 drives in parallel or in multi-drive panel configurations, it is advisable to maintain at least one spare ATV71 keypad / HMI display unit for rapid fault code retrieval during emergency shutdowns, as well as a spare communication option card (Modbus, Profibus, or CANopen, depending on your network topology) to avoid extended downtime caused by communication module failure. Rounding out a complete ATV71 spare parts kit with a spare braking resistor assembly and output contactor ensures that your maintenance team can address the most statistically common failure modes without waiting on procurement lead times.

Strategic Replacement Solutions

The ATV71 series, while a mature and widely deployed platform, remains in active service across thousands of industrial installations globally. Schneider Electric’s transition toward the Altivar Process ATV600 and ATV900 series has created a growing challenge for maintenance teams: OEM support timelines are finite, but installed base replacement cycles are long. The PN072549P703 gate drive board addresses this gap directly by providing a genuine, original-specification replacement that preserves full compatibility with the existing ATV71 drive hardware, firmware, and control architecture.

Unlike third-party or refurbished alternatives, an original PN072549P703 requires no parameter re-entry, no firmware patching, and no mechanical adaptation. The replacement procedure follows the standard ATV71 service manual sequence: isolate and discharge the drive, remove the defective board, seat the replacement, and restore power. Drive parameters stored in the control board memory are unaffected, meaning the drive returns to service with the same application configuration — a critical advantage in processes where re-commissioning time is costly.

For facilities managing aging ATV71 fleets, a proactive procurement strategy — purchasing one or two spare PN072549P703 boards ahead of need — significantly reduces mean time to repair (MTTR) when a drive fault occurs. Given that unplanned motor drive downtime in manufacturing environments can cost thousands of dollars per hour, the inventory carrying cost of a spare gate drive board is negligible by comparison. TOPNLMS maintains ready stock to support both emergency single-unit orders and bulk procurement for multi-site maintenance programs.

Support FAQ

Q1: Is the PN072549P703 compatible with all ATV71 drive power ratings?
The PN072549P703 is designed for specific power range variants within the ATV71 series. Please confirm compatibility by cross-referencing your drive’s nameplate model number (e.g., ATV71HD11N4, ATV71HD15N4) with the board part number listed on your existing gate drive PCB before ordering. Our technical team at [email protected] can assist with compatibility verification.

Q2: What pre-shipment testing is performed on each unit?
Every PN072549P703 unit undergoes functional verification prior to dispatch. Units are inspected for physical integrity, connector condition, and electrical continuity. Each board ships with a test record and is covered by a 12-month warranty against manufacturing defects and functional failure from the date of receipt.

Q3: How quickly can I receive the board, and what shipping options are available?
TOPNLMS ships worldwide via DHL, FedEx, and UPS with full tracking. In-stock units typically dispatch within 1 business day of order confirmation. Expedited shipping options are available for emergency maintenance situations — contact us directly at +86 18359293191 to arrange priority dispatch.

Q4: What is your returns and warranty claims process?
Units that exhibit functional failure within the 12-month warranty period are eligible for replacement or refund. Claims are processed upon receipt of the defective unit and a brief fault description. We recommend retaining the original packaging and test documentation shipped with the unit to facilitate any warranty claim. Contact [email protected] to initiate a claim.
