Schneider PN072130P905 Altivar VFD Control Board Upgrade

Product Overview

Schneider PN072130P905 Altivar VFD Control Board Upgrade: Seamless Transition from Legacy Drive Systems

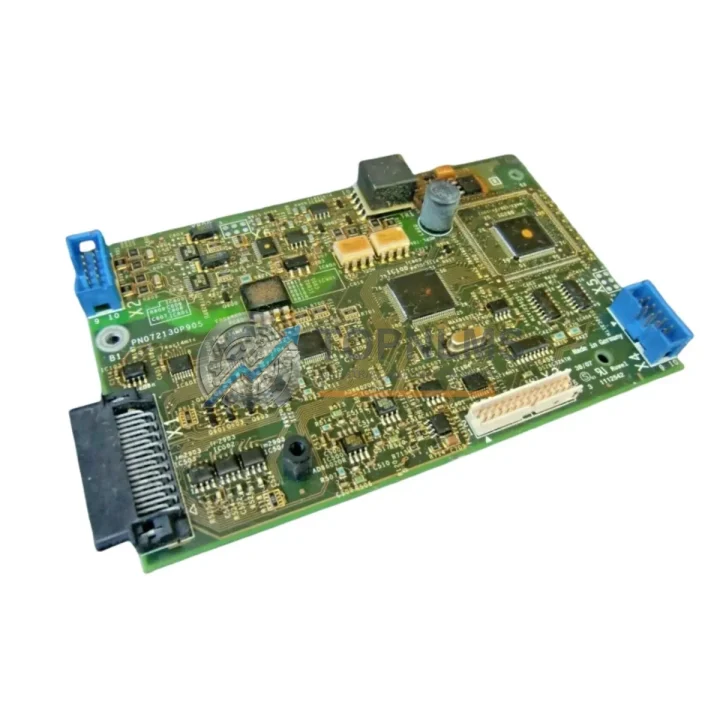

The Schneider Electric PN072130P905 is a genuine control board designed for the Altivar series variable frequency drive (VFD) platform. As industrial facilities worldwide accelerate the retirement of aging drive systems — including discontinued ATV28, ATV58, and early ATV61 variants — the PN072130P905 provides a technically validated, drop-in-compatible upgrade path that minimizes engineering rework, reduces downtime risk, and preserves existing wiring infrastructure.

Whether your maintenance team is responding to an unplanned board failure, executing a scheduled modernization project, or building a critical spare inventory, the PN072130P905 is stocked, tested, and ready to ship from our Xiamen facility. Each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Altivar drive modernization rarely involves a single component. When replacing the PN072130P905 control board, field engineers typically review the broader drive assembly to ensure all subsystems are aligned. During the retrofit process, the ATV61 power board should be inspected for capacitor aging — if the drive has been in service for more than eight years, simultaneous replacement of the power stage is advisable to avoid repeat failures. The ATV71 keypad display unit (VW3A1101) is fully compatible with the PN072130P905 and provides enhanced parameter visibility during commissioning.

For facilities running Modbus RTU networks, the existing RS-485 wiring can be retained without modification. Sites requiring Profibus DP integration should add the VW3A3607 Profibus DP communication card, which slots directly into the ATV61/71 option bay alongside the PN072130P905. Where CANopen topology is in use, the VW3A3608 CANopen card provides equivalent plug-in compatibility.

Control cabinet space is frequently a constraint during retrofits. The PN072130P905 occupies the same physical envelope as the outgoing board, so no cabinet modification or busbar relocation is required. If the retrofit scope extends to the I/O layer, the Advantys STB NIM211 network interface module and associated STB DDI3230 digital input modules integrate cleanly with the Altivar platform over Modbus, preserving the existing field wiring from sensors and actuators.

For sites where the legacy Twido TWDLCAE40DRF or Modicon M340 BMXP342020 PLC is the upstream controller, no program changes are required — the PN072130P905 presents an identical Modbus register map to the host controller, ensuring transparent substitution. Engineers using Unity Pro or EcoStruxure Machine Expert for PLC programming will find that existing drive function blocks remain valid after the board swap.

Where the retrofit includes updating the HMI layer, the Magelis HMIGTO2310 touchscreen panel communicates natively with the ATV61/71 platform via Modbus TCP/IP or serial, and its pre-built drive control faceplates reduce commissioning time significantly. Power supply integrity should also be verified: the Phaseo ABL7RE2402 24 VDC power supply is the recommended logic supply for the control board and associated I/O modules in the same cabinet.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when installing the PN072130P905?
A: No. The PN072130P905 uses the same terminal block pinout as the outgoing Altivar control board. All analog inputs (AI1, AI2), digital inputs (DI1–DI6), relay outputs (R1, R2), and the 24 VDC logic supply connect to identical positions. Field wiring can remain in place during the board swap.

Q: Will my existing PLC program need modification after the replacement?
A: In most cases, no. The PN072130P905 maintains register map compatibility with legacy ATV firmware. If your Modicon M340 or Premium PLC is polling standard drive registers (output frequency, motor current, fault codes, run/stop commands), those addresses remain unchanged. Verify using the ATV61 Modbus communication manual (BBV28581).

Q: Is the PN072130P905 compatible with Profibus DP networks?
A: The base board supports Modbus RTU and CANopen natively. Profibus DP requires the VW3A3607 option card, which installs in the drive’s communication option slot. This card is available separately and does not affect the control board replacement procedure.

Q: What is the physical installation procedure?
A: Power down the drive and wait a minimum of 15 minutes for DC bus capacitors to discharge. Verify bus voltage with a multimeter before opening the drive enclosure. Remove the four retaining screws on the control board, disconnect the ribbon cable and terminal blocks, and reverse the procedure with the PN072130P905. Restore parameters using SoMove software or the keypad — a parameter backup from the original board is strongly recommended before replacement.

Q: Can the PN072130P905 be used in a cabinet with limited vertical clearance?
A: Yes. The board dimensions are identical to the OEM part. No additional clearance is required. Ensure the drive’s ventilation slots remain unobstructed after reassembly, as per ATV61 installation guide (BBV28580).

Q: What if the replacement board develops a fault within the warranty period?
A: TOPNLMS provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Contact [email protected] with your order number and fault description. Replacement or refund is processed within 5 business days of fault confirmation.

Warranty Assurance

Every PN072130P905 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes power-on functional testing, communication interface verification, and visual inspection for ESD damage or mechanical defects. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. We support replacement dispatch, return merchandise authorization (RMA), and — where the fault is confirmed as a manufacturing defect — full refund processing. Our warranty terms are not voided by installation in the intended Altivar drive platform, provided the unit has not been subjected to overvoltage, physical damage, or unauthorized modification.

For procurement teams managing critical spare inventories, we offer batch testing reports and serialized shipment documentation on request. Lead time for stocked units is 1–3 business days to most destinations, with DHL Express and FedEx International Priority available for urgent requirements.

For volume orders, OEM procurement inquiries, or technical pre-sales support, contact our engineering team directly.
