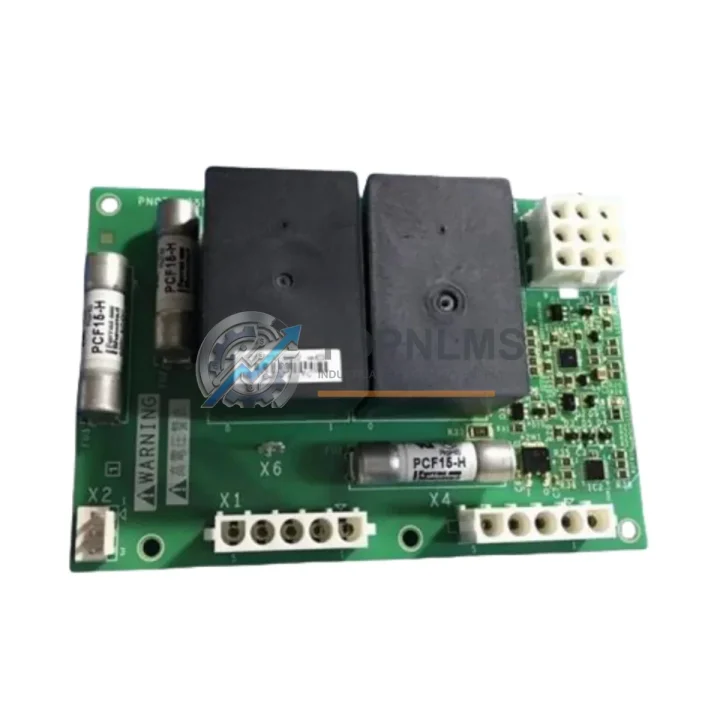

Schneider PN072546P702 Replacement for Altivar Drive: Smooth Transition & Legacy System Compatibility

When your Altivar variable speed drive system signals a control board fault or when the original PN072546P702 board reaches end-of-life, the priority is clear: restore production with zero architectural compromise. The Schneider Electric PN072546P702 is a drive control board engineered for the Altivar series of AC variable frequency drives, governing motor speed regulation, torque control, I/O signal processing, and fieldbus communication. This replacement and upgrade solution is designed to slot into your existing drive enclosure with minimal rewiring, preserving your existing motor cabling, terminal block assignments, and PLC program logic.

Industrial facilities running Altivar 28, Altivar 31, Altivar 58, or Altivar 61 series drives frequently encounter situations where the control board — not the power stage — is the failed component. Replacing only the PN072546P702 control board rather than the entire drive unit dramatically reduces downtime, avoids costly motor recalibration, and eliminates the need to re-engineer the control cabinet layout. The board interfaces directly with the existing power board assembly, retaining the original terminal strip wiring for analog inputs (AI1, AI2), digital inputs (DI1–DI6), relay outputs, and the RJ45 communication port used for Modbus RTU or CANopen fieldbus connections.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PN072546P702 control board replacement rarely happens in isolation. In most Altivar drive retrofit projects, the control board swap is one step in a broader system modernization effort. During the commissioning phase, engineers typically verify the integrity of the Altivar power board — the companion component that supplies internal DC voltage to the control board — to ensure the fault originated in the control section rather than the power stage. If the power board shows signs of capacitor aging or IGBT stress, it is replaced concurrently to avoid repeat failures.

For facilities running Schneider Electric Modicon M340 or Modicon M580 PLCs as the upstream controller, the Modbus RTU register map used by the PN072546P702 board remains unchanged after replacement, meaning the existing PLC ladder logic and function blocks require no modification. Engineers working with Modicon Premium or Quantum series PLCs connected via a TSX SCY 21601 serial communication module will similarly find the replacement board fully transparent to the control program.

In multi-drive control cabinet installations, the PN072546P702 replacement is often performed alongside inspection of the Altivar keypad display unit (VW3A1101 or equivalent), which shares the RJ45 port for parameter upload and drive diagnostics. Retaining the original keypad allows parameter sets — acceleration ramp, deceleration ramp, motor rated current, and frequency reference source — to be uploaded directly to the replacement board without manual re-entry, significantly reducing commissioning time.

Where the drive communicates over a CANopen network to a Schneider Electric Magelis HMI or a third-party SCADA system, the node address and baud rate settings stored in the original board’s non-volatile memory must be re-entered on the replacement board. This is a straightforward procedure using the drive’s integrated keypad or the SoMove PC configuration software connected via a VW3A8104 USB-RJ45 programming cable. The SoMove parameter file from the original drive can be reloaded in minutes, restoring the full drive configuration including PID control parameters, preset speeds, and fault response settings.

For installations where the Altivar drive is mounted in a control cabinet alongside Schneider Electric Zelio Logic smart relays, Preventa safety modules, or Tesys motor starters, the physical replacement of the PN072546P702 board does not affect the hardwired interlock circuits connected to the drive’s digital input terminals. The existing 24 VDC control wiring from the safety relay output to DI3 (run enable) and DI4 (fault reset) remains fully intact.

In applications where the Altivar drive feeds a conveyor, pump, or HVAC fan system monitored by a Schneider Electric PowerLogic energy meter over Modbus, the replacement board restores full Modbus slave functionality immediately upon power-up, allowing the energy management system to resume data logging without reconfiguration.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal block after installing the PN072546P702 replacement board?
No. The replacement board uses the same terminal strip layout as the original. All analog input, digital input, relay output, and 24 VDC external power wiring connects to identical terminal positions. Simply transfer the existing wiring harness to the replacement board.

Q: Will my PLC program need to be modified after the board swap?
No. The PN072546P702 replacement board retains the same Modbus RTU register map as the original. Your Modicon or third-party PLC program continues to read drive status, write frequency setpoints, and issue run/stop commands using the same register addresses without any code changes.

Q: Is the CANopen node address preserved after replacement?
The node address and baud rate must be re-entered on the replacement board, as these are stored in the original board’s non-volatile memory. This takes approximately 5 minutes using the drive keypad or SoMove software via a VW3A8104 programming cable.

Q: Does the replacement board fit in the same physical space inside the drive enclosure?
Yes. The PN072546P702 replacement board has an identical PCB footprint and uses the same snap-in mounting points as the original. No cabinet modification, DIN rail adjustment, or additional mounting hardware is required.

Q: Can I upload the original drive parameter file to the replacement board?
Yes. If you have a SoMove parameter backup file (.smd) from the original drive, it can be loaded directly onto the replacement board via the VW3A8104 USB-RJ45 cable, restoring all motor parameters, ramp settings, and communication configuration in a single operation.

Q: What if the fault is in the power board rather than the control board?
If diagnostics indicate a power stage fault (IGBT failure, DC bus overvoltage, or internal power supply failure), the Altivar power board should be inspected and replaced separately. TOPNLMS can supply both the control board and the power board for a complete drive restoration.

Warranty Assurance

Every PN072546P702 drive control board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including power-up self-test, communication port integrity check, and I/O signal validation to confirm the unit meets original Schneider Electric performance specifications.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit with priority dispatch to minimize production downtime. Our technical support team is available to assist with installation guidance, parameter configuration, and fault diagnosis throughout the warranty period. Boards are shipped from our Xiamen warehouse with full export documentation, commercial invoice, and packing list to support customs clearance for international orders.

For procurement teams requiring batch quantities for MRO inventory or planned maintenance programs, TOPNLMS offers volume pricing, lead-time commitments, and certificate of conformance documentation upon request. Contact our sales team to discuss stocking agreements and consignment options for critical spare parts.
