Schneider PN072545P1 Replacement for Altivar Drive Series

Product Overview

Schneider PN072545P1 Replacement for Altivar Drive Series: Smooth Transition & Legacy System Compatibility

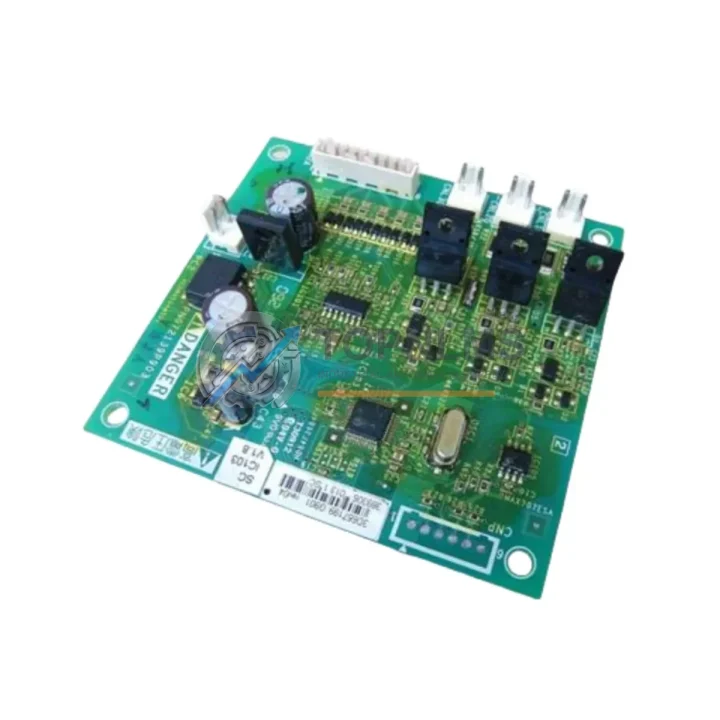

The Schneider Electric PN072545P1 is a drive control board engineered for the Altivar series of variable frequency drives (VFDs). As industrial facilities face the end-of-life cycle of legacy Altivar drive platforms — including the Altivar 58, Altivar 61, and Altivar 71 families — the PN072545P1 serves as a critical replacement and upgrade component that enables engineers to restore full drive functionality without replacing the entire drive cabinet or rewriting the control program from scratch.

This control board governs the core logic, gate-drive signals, and communication interface of the Altivar drive. When the original board fails due to capacitor aging, IGBT driver faults, or firmware corruption, a direct board-level replacement with the PN072545P1 eliminates the need for a full drive swap, dramatically reducing both downtime and capital expenditure. The board is factory-tested and ships with all original firmware pre-loaded, ensuring compatibility with existing Modbus RTU and CANopen communication networks already wired into the control cabinet.

For facilities running multi-drive systems — where the Altivar drive is networked alongside a Schneider Electric Modicon M340 or Modicon M580 PLC via Modbus TCP/IP or Profibus DP — the PN072545P1 maintains the same device address and parameter map as the original board. This means the PLC program, including all speed reference registers, fault-handling logic, and PID loop parameters, requires no modification after the board swap. Engineers working with SoMachine or EcoStruxure Machine Expert programming environments will find the replacement board immediately recognized without re-commissioning the drive profile.

Physical installation is straightforward. The PN072545P1 uses the same PCB mounting footprint, connector pinout, and DIN-rail-compatible chassis interface as the original Altivar control board. No additional wiring adapters or bracket modifications are required. The 24 VDC logic supply input, analog reference inputs (0–10 V / 4–20 mA), and digital I/O terminals are pin-for-pin compatible, allowing technicians to transfer the existing wiring harness directly. For sites where the Altivar drive is paired with a Schneider Electric LXM32 servo drive or a Lexium MDrive axis controller on the same machine, the PN072545P1 replacement does not affect the motion coordination logic or the CANmotion network topology.

In distributed I/O architectures where the Altivar drive receives speed commands from a Schneider Electric STB NIP 2212 Ethernet network interface module or an STBDDI3725 digital input module on an Advantys STB island, the PN072545P1 preserves the existing EtherNet/IP or Modbus TCP device instance configuration. No IP address reassignment or EDS file re-import is needed in the network scanner. This is particularly valuable in continuous-process industries — such as water treatment, HVAC, and conveyor systems — where even a brief reconfiguration window can trigger process alarms or safety interlocks.

For retrofit projects involving older Altivar 58 or Altivar 66 drives that are being migrated to the Altivar 71 or Altivar Process ATV630/ATV930 platform, the PN072545P1 can serve as an interim board-level repair to extend the service life of the existing drive while the full migration is planned and budgeted. During this transition period, the existing VW3A3608 communication card and VW3A3301 remote keypad remain fully functional with the replacement board, protecting the investment in peripheral accessories already installed in the control cabinet.

All units are sourced from authorized distribution channels, individually inspected, and tested under load conditions prior to shipment. Each PN072545P1 ships with anti-static packaging, a test report, and a 12-month warranty covering manufacturing defects and functional failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Altivar drive control board replacement rarely happens in isolation. In most retrofit and migration scenarios, the PN072545P1 is installed alongside a coordinated set of components to ensure the entire drive system is restored to full operational integrity.

When the control board is replaced, it is best practice to simultaneously inspect and, if necessary, replace the Altivar power board and IGBT driver board, as these components share the same thermal and electrical stress history as the failed control board. In multi-axis machine tool applications, the PN072545P1 is commonly deployed alongside a replacement Schneider Electric VW3A3608 EtherNet/IP communication card, which restores the drive’s network visibility to the plant SCADA system without requiring a new IP allocation from the IT department.

For control cabinets where the Altivar drive is powered from a Schneider Electric Phaseo ABL8 24 VDC power supply, the logic supply rail should be verified for voltage stability before the new board is energized — a degraded power supply is a common secondary cause of control board failure. In systems where the drive communicates with a Modicon Premium TSX P57 CPU or a Modicon Quantum 140 CPU via Modbus Plus or Modbus TCP, the replacement board’s device address must be confirmed to match the original configuration stored in the PLC’s I/O map.

Facilities upgrading from the Altivar 58 to the Altivar Process ATV630 platform will also need to evaluate the VW3A3301 remote display terminal and VW3A1006 braking resistor assembly for compatibility with the new drive generation. During the transition, the PN072545P1 board-level repair keeps the existing Altivar 58 operational, providing a controlled migration window rather than a forced emergency replacement. Signal isolators — such as the Schneider Electric XMLA010B2S11 pressure transmitter interface or third-party DIN-rail signal conditioners — may also need to be verified for loop impedance compatibility when the new board’s analog input specifications are applied.

Retrofit Guidance FAQ

Q: Will the PN072545P1 work with my existing Modbus RTU wiring?
A: Yes. The PN072545P1 uses the same RS-485 Modbus RTU interface as the original Altivar control board. The device address, baud rate, and parity settings are retained in the drive’s non-volatile memory and do not need to be reconfigured after the board swap.

Q: Do I need to re-enter all drive parameters after replacing the board?
A: In most cases, no. The Altivar drive stores its parameter set in a separate EEPROM on the power board, not on the control board. If the power board is intact, all motor parameters, ramp times, and protection thresholds are preserved. We recommend using the VW3A3301 remote keypad or SoMachine to verify critical parameters after installation.

Q: Is the physical installation space the same as the original board?
A: Yes. The PN072545P1 uses the identical PCB dimensions and chassis mounting points as the original Altivar control board. No modifications to the drive enclosure or DIN rail mounting are required.

Q: Can this board be used in a Profibus DP network?
A: The base PN072545P1 supports Modbus RTU and CANopen natively. Profibus DP connectivity requires the optional VW3A3607 Profibus DP communication card, which slots into the drive’s option card bay and is not affected by the control board replacement.

Q: What is the lead time and shipping arrangement?
A: Units are held in stock at our Xiamen warehouse. Orders confirmed before 3:00 PM CST typically ship the same business day via DHL Express, FedEx International Priority, or SF International, with tracking provided within 24 hours of dispatch.

Warranty Assurance

Every Schneider Electric PN072545P1 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional test including logic supply verification, digital I/O continuity check, analog input calibration verification, and communication port integrity test. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are required to return the defective unit with the original test report included in the shipment. Warranty claims are typically processed within 3–5 business days of receiving the returned unit. Our after-sales team is reachable at [email protected] or +86 18359293191 for pre-shipment technical consultation, compatibility verification, and post-installation support.

We maintain a standing inventory of Altivar series spare parts to support emergency procurement requirements. For customers managing planned maintenance schedules, we offer reserved stock arrangements to guarantee availability for scheduled shutdown windows.
