Schneider ATV312HU22N4 Ruggedized VFD for Harsh Environments

Product Overview

Schneider ATV312HU22N4 Ruggedized VFD for Harsh Environments

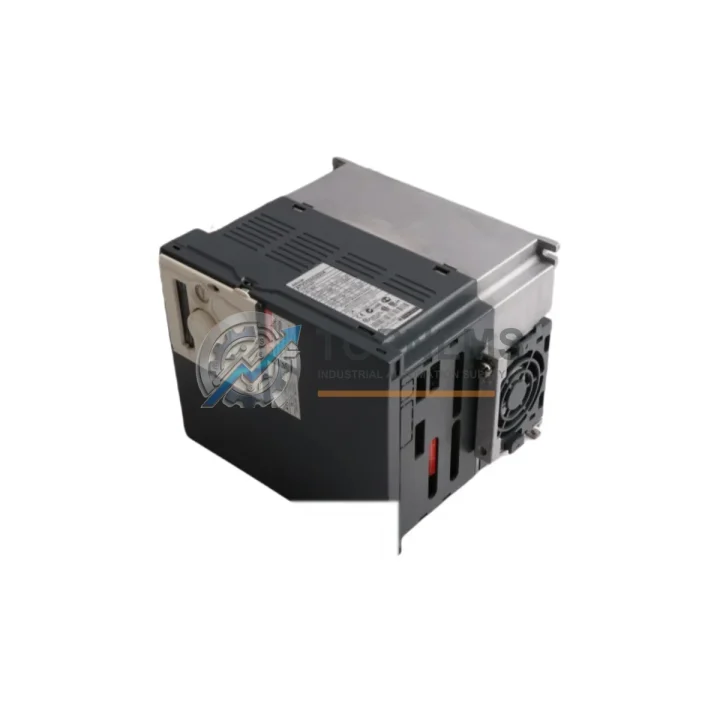

The Schneider Electric ATV312HU22N4 is a 2.2 kW, 3-phase 380–500 V AC variable frequency drive from the Altivar 312 series — engineered to deliver consistent, reliable motor control in the most demanding industrial environments. Whether deployed on a continuous production line in a steel mill, inside a control cabinet exposed to high ambient temperatures, or in a coastal chemical plant where salt-laden humidity accelerates corrosion, the ATV312HU22N4 maintains stable output without compromise. Its compact footprint, robust EMC filtering, and integrated protective functions make it a preferred choice for engineers who cannot afford unplanned downtime.

In high-vibration environments such as mining conveyors, offshore pump stations, or heavy press lines, the ATV312HU22N4 withstands mechanical stress that would degrade lesser drives. Its conformal-coated PCB resists moisture ingress and conductive dust — a critical advantage in cement plants, grain handling facilities, and foundries where airborne particulates are unavoidable. The drive’s built-in EMC Class C2 filter suppresses conducted and radiated interference, protecting adjacent Modicon M340 PLCs, Advantys STB distributed I/O modules, and Altivar Process ATV600 drives sharing the same control cabinet bus.

Thermal management is handled through an optimized heat-sink design and intelligent thermal protection algorithms. The drive continuously monitors internal temperature and adjusts switching frequency to prevent overtemperature trips — a feature that proves invaluable in poorly ventilated electrical rooms or outdoor enclosures in tropical climates. When paired with a Schneider Electric Lexium servo drive or a TeSys D contactor on the motor output side, the ATV312HU22N4 forms a tightly integrated motion and protection chain that reduces wiring complexity and simplifies commissioning.

For process industries where safety is non-negotiable — oil and gas wellheads, water treatment dosing stations, pharmaceutical HVAC systems — the ATV312HU22N4 supports Safe Torque Off (STO) readiness through external safety relay modules such as the Preventa XPSAF, enabling compliance with IEC 62061 and EN ISO 13849-1 safety integrity requirements without additional hardware overhead. The drive’s motor protection suite includes overcurrent, phase loss, ground fault, and stall detection, reducing the risk of catastrophic motor failure in unmanned remote installations.

Communication flexibility is built in: the ATV312HU22N4 supports Modbus RTU via its RJ45 port, allowing seamless integration with Modicon Premium and Modicon M340 PLC platforms, as well as third-party SCADA systems. Optional CANopen and DeviceNet communication cards extend connectivity to broader automation architectures. In multi-drive installations — such as a water treatment plant running multiple pump motors — the Modbus network allows a single Modicon PLC to monitor speed references, fault codes, and energy consumption across all drives simultaneously, dramatically reducing operator workload.

The drive’s energy-saving algorithms deliver measurable reductions in electricity consumption for variable-torque loads such as fans and centrifugal pumps. In a typical HVAC application, switching from direct-on-line starting to ATV312HU22N4 speed control can reduce motor energy consumption by 30–50%, with payback periods often under 18 months. This efficiency profile, combined with the drive’s long service life and low maintenance requirements, makes it a sound capital investment for facility managers focused on total cost of ownership.

From a procurement standpoint, TOPNLMS maintains verified stock of the ATV312HU22N4 sourced through authorized distribution channels. Every unit undergoes incoming inspection including insulation resistance testing, functional power-up verification, and parameter default confirmation before dispatch. Units are shipped in original or equivalent protective packaging with anti-static precautions to prevent ESD damage during transit. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express courier options available for urgent maintenance requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

The ATV312HU22N4 is rarely deployed in isolation. In a typical motor control center (MCC), it operates alongside a TeSys D LC1D series contactor on the line side for safe isolation, and a TeSys GV2 manual motor starter as a backup overcurrent device. The drive’s Modbus RTU port connects upstream to a Modicon M340 BMX P34 2020 CPU, which coordinates speed references, fault acknowledgment, and energy logging across the entire production cell.

For distributed I/O expansion, Advantys STB NIM211 network interface modules bridge the Modbus segment to field-level sensors and actuators, allowing the ATV312HU22N4 to receive process feedback — such as pressure transmitter signals or flow meter pulses — without burdening the main PLC scan cycle. In safety-critical zones, a Preventa XPSAF5130 safety relay monitors the STO input circuit, ensuring the drive cannot restart after an emergency stop event until a deliberate operator reset is performed.

Power quality upstream is maintained by a Schneider Electric Acti9 iC60N circuit breaker sized to the drive’s prospective short-circuit current, while a Phaseo ABL8 24 V DC power supply feeds the control logic and HMI panel. In installations where harmonic distortion is a concern — such as large pump stations with multiple VFDs on a shared transformer — a line reactor or Altivar ATV312 compatible input choke is inserted between the supply and the drive input terminals to limit THD and protect upstream equipment.

For remote monitoring in unmanned substations or water treatment lift stations, the drive’s Modbus data is aggregated by a Moxa NPort serial-to-Ethernet device server, forwarding real-time drive status to a central SCADA platform. This architecture, combining the ATV312HU22N4 with proven Schneider Electric ecosystem components, delivers a layered protection and control solution that meets the reliability expectations of critical infrastructure operators.

Application in Critical Infrastructure

In oil and gas upstream facilities, the ATV312HU22N4 controls injection pump motors in wellhead buildings where ambient temperatures can exceed 45°C and dust ingress is constant. Its thermal derating algorithm and conformal coating allow continuous operation without forced cooling, reducing maintenance intervals and extending mean time between failures (MTBF) compared to conventional across-the-line starters.

In municipal water treatment plants, the drive manages aeration blower and dosing pump motors, where precise flow control directly impacts treatment efficiency and chemical consumption. The Modbus RTU interface allows the plant’s Modicon PLC to implement PID flow control loops, automatically adjusting motor speed in response to influent flow rate changes — eliminating the need for mechanical throttling valves and their associated pressure losses.

In metallurgical and mining operations, the ATV312HU22N4 drives conveyor belt motors and crusher feed systems where shock loads and frequent starts would rapidly degrade conventional starters. The drive’s current-limiting ramp function protects both the motor and the mechanical drivetrain, while its flying restart function allows the drive to re-engage a coasting motor without a full stop — critical for maintaining throughput on continuous ore processing lines.

In power generation auxiliary systems — cooling tower fans, boiler feed pumps, and forced-draft fans — the drive’s energy optimization mode reduces parasitic power consumption during partial-load periods, contributing to overall plant heat rate improvement. Its compatibility with standard IEC frame motors from major manufacturers means it can be retrofitted into existing installations without motor replacement, minimizing capital expenditure and installation downtime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions as defined in the Altivar 312 installation manual. If a unit fails within the warranty period, contact [email protected] with the order reference and a description of the fault. TOPNLMS will arrange return logistics and provide a replacement or repaired unit within an agreed lead time. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated surge immunity, or unauthorized modification.

Q2: What pre-shipment testing is performed on each ATV312HU22N4 unit?
Every unit undergoes a structured incoming inspection protocol: visual inspection for transit damage, insulation resistance measurement between power terminals and earth, functional power-up test confirming display initialization and parameter default state, and output voltage symmetry check across all three phases. Units that do not pass all checkpoints are quarantined and not dispatched. Test records are retained for traceability.

Q3: Is the ATV312HU22N4 compatible with my existing Modicon PLC and motor?
The ATV312HU22N4 is compatible with any standard IEC 60034 three-phase induction motor rated 2.2 kW at 380–500 V. On the control side, its Modbus RTU protocol is natively supported by Modicon M340, Modicon Premium, and Modicon M580 PLCs, as well as most third-party PLCs with a Modbus master function block. Parameter configuration is performed via the integrated keypad or SoMove PC software (free download from Schneider Electric). No proprietary gateway is required for basic speed control and fault monitoring.

Q4: Can TOPNLMS support long-term supply and replacement for this model?
Yes. TOPNLMS maintains ongoing stock of the ATV312HU22N4 and its Altivar 312 series siblings to support planned maintenance programs and emergency breakdown replacements. For customers running multiple units across a facility, we recommend establishing a consignment or blanket order arrangement to guarantee availability. Contact [email protected] or call +86 18359293191 to discuss volume pricing, lead time commitments, and spare-parts planning support.
