Schneider ATV21HD18N4 Replacement for Altivar 21 Series

Product Overview

Schneider ATV21HD18N4 Replacement for Altivar 21 Series: Smooth Transition & Legacy System Compatibility

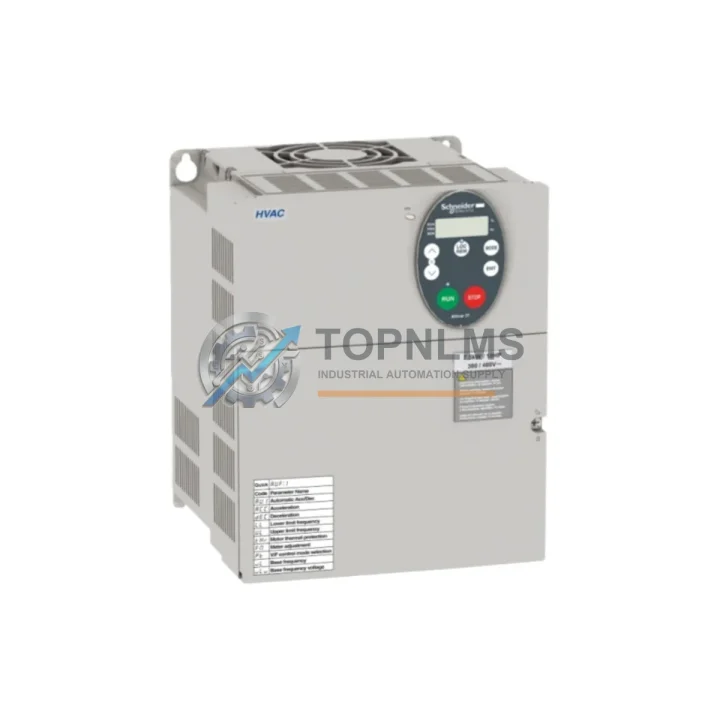

The Schneider Electric ATV21HD18N4 is an 18.5 kW, 400 V three-phase AC variable frequency drive (VFD) from the Altivar 21 series, purpose-built for HVAC, pump, and fan applications in commercial and light industrial environments. As the Altivar 21 platform approaches end-of-life in many installed bases, facilities engineers and procurement teams are actively seeking a verified, drop-in replacement that preserves existing wiring infrastructure, control logic, and communication architecture — while eliminating unplanned downtime caused by aging or discontinued drives.

At TOPNLMS, we stock the ATV21HD18N4 as a direct replacement unit, fully tested and shipped with a 12-month warranty. Whether you are managing a scheduled retrofit, responding to an emergency failure, or building a spare-parts buffer for a multi-drive installation, this unit is ready to ship from our Xiamen warehouse within 1–3 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ATV21HD18N4 migration rarely involves the drive alone. In most Altivar 21 installations, the drive operates alongside a network of supporting components that must be evaluated during the retrofit. The VW3A1104 Modbus RTU communication card, if fitted to the outgoing drive, is directly compatible with the ATV21HD18N4 — preserving your existing BMS or SCADA address mapping without reprogramming. Engineers replacing multiple drives in the same MCC panel often simultaneously address the ATV21HD11N4 (11 kW) and ATV21HD15N4 (15 kW) units in adjacent slots, consolidating the retrofit into a single planned outage window.

On the power supply side, the 24 V DC control circuit feeding the drive’s logic board is typically sourced from a Schneider ABL8REM24030 or equivalent regulated SMPS. Verifying that this supply remains within specification before commissioning the replacement drive prevents nuisance trips during startup. For installations using a Magelis HMIGTO or third-party HMI connected via Modbus RTU, the existing communication parameters — baud rate 19200, 8N1, slave address — transfer directly to the ATV21HD18N4 without modification.

Where the control cabinet includes a TeSys D LC1D series contactor on the line side, no changes to the upstream switching logic are required. Similarly, if the installation uses Schneider LV432693 or equivalent motor circuit breakers for short-circuit protection, the existing coordination study remains valid for the 18.5 kW rating. For sites that have integrated a Modicon M340 or Modicon M580 PLC as the supervisory controller, the Unity Pro or EcoStruxure Control Expert program requires only a drive address confirmation — the function blocks and DDT structures for Altivar 21 Modbus control are already embedded in the standard library. Finally, if signal isolation is required between the drive’s analog speed reference (0–10 V or 4–20 mA) and the BMS output, a Phoenix Contact MCR-SL-UI-UI or equivalent signal isolator can be inserted without altering the drive’s parameter set.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor cable and terminal connections?
A: Yes. The ATV21HD18N4 uses the same terminal designations (R/S/T for line input, U/V/W for motor output, PE for earth) as all Altivar 21 18.5 kW variants. No rewiring is required provided cable cross-sections meet the 46 A output rating.

Q: Do I need to reprogram the drive after installation?
A: For standard HVAC pump/fan applications, the factory default parameter set (V/f control, 50 Hz base frequency, auto-boost enabled) matches the most common Altivar 21 field configurations. If the outgoing drive had customized acceleration ramps, PID setpoints, or multi-speed presets, these should be documented before removal and re-entered via the integrated keypad or SoMove PC software.

Q: Is the Modbus RTU communication address retained?
A: The drive address is stored in parameter COM- (communication address), which defaults to 1. If your BMS uses a non-default address, set COM- to match before connecting the RS-485 bus. No changes to the BMS configuration are required.

Q: Will the replacement drive fit the existing panel cutout and mounting holes?
A: Yes. The ATV21HD18N4 shares the same chassis dimensions as all Altivar 21 18.5 kW units. Mounting hole positions, cable entry points, and cooling clearance requirements are identical.

Q: What if the motor was tuned to the outgoing drive?
A: For standard induction motors, no motor tuning is required. If the outgoing drive had completed an auto-tune (motor resistance and inductance measurement), re-run the auto-tune sequence on the replacement unit using SoMove or the keypad to optimize performance for your specific motor.

Warranty Assurance

Every ATV21HD18N4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional power-on test verifying input rectification, DC bus charge, output switching, and control terminal response. Units that do not pass this test are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales team responds to technical queries within 24 business hours. For urgent replacement scenarios — drive failure causing production stoppage — we offer expedited shipping options to minimize downtime. All units are packaged in anti-static foam with original or equivalent protective packaging to prevent transit damage.

Procurement teams can request a proforma invoice, packing list, and test report for each unit. We support T/T bank transfer, and can provide HS code documentation (HS 8504.40) for customs clearance in most destination countries.
