Schneider ATV12H037M2 Replacement/Upgrade for Altivar 12

Product Overview

Schneider ATV12H037M2 Replacement/Upgrade for Altivar 12: Smooth Transition to Modern Drive Control

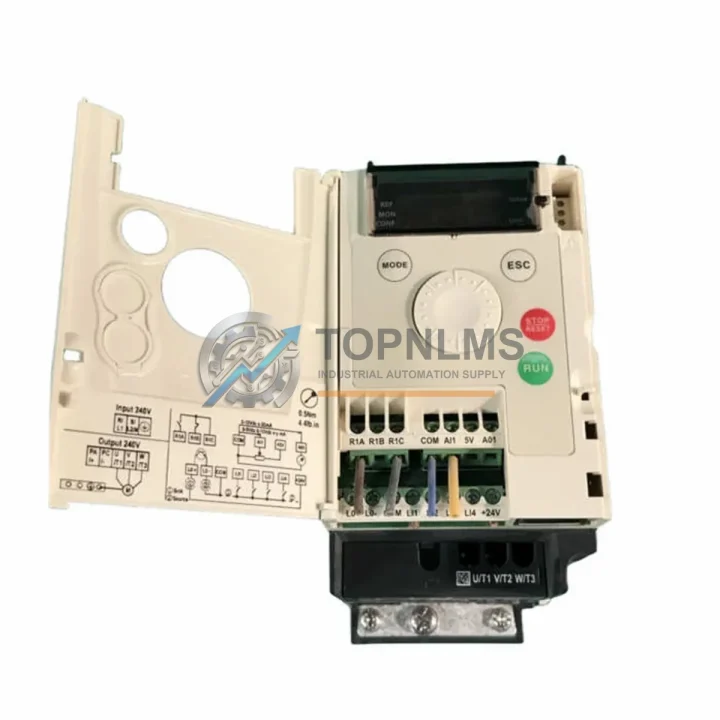

The Schneider Electric ATV12H037M2 is a 0.37 kW (0.5 HP), 200–240 V single-phase input variable frequency drive (VFD) from the Altivar 12 series — one of the most widely deployed compact drives in light industrial, HVAC, pump, and conveyor applications across Asia and Europe. As the Altivar 12 series approaches end-of-life in many regional markets, procurement teams and maintenance engineers are actively seeking verified replacement units and compatible upgrade paths that eliminate costly line stoppages.

At TOPNLMS, we stock the ATV12H037M2 as a direct replacement for failed or discontinued units. Every drive is sourced through authorized industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are replacing a single failed drive on a packaging line or executing a fleet-wide upgrade across multiple control cabinets, our team provides the technical documentation and pre-shipment test reports needed to support your maintenance workflow.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ATV12H037M2 migration rarely involves the drive alone. In practice, engineers replacing an aging Altivar 11 (ATV11) or early Altivar 12 unit must also audit the surrounding control architecture. The ATV12H037M2 retains the same terminal block layout as its predecessor, meaning existing motor cables, contactor wiring, and 24 V control circuits can typically be reconnected without re-routing — a critical advantage when cabinet space is constrained.

For sites running Modbus RTU networks, the ATV12H037M2’s built-in RS-485 port integrates directly with existing Schneider Electric Modicon M221 or M241 PLCs without requiring an additional communication gateway. Engineers migrating from older Twido series PLCs will find that the drive’s parameter map aligns closely with legacy configurations, reducing re-commissioning time significantly.

Where the control cabinet also houses an ATV12H075M2 (0.75 kW) or ATV12HU15M2 (1.5 kW) for higher-load axes, the ATV12H037M2 can be installed in the same rack arrangement, sharing a common 24 V DC power supply module and terminal base. This uniformity simplifies spare-parts management and reduces the number of drive families a maintenance team must be trained on.

For applications requiring enhanced motor feedback, pairing the ATV12H037M2 with a TM3 expansion I/O module on the M221 PLC allows closed-loop speed monitoring without modifying the drive’s internal wiring. Sites that previously relied on a standalone Zelio Logic smart relay for simple start/stop sequencing can migrate that logic to the M221 while retaining the ATV12H037M2 as the drive layer — a clean two-tier architecture that is easier to maintain and document.

In conveyor and pump retrofit projects, it is common to replace not only the drive but also the associated GV2 motor circuit breaker and LC1D contactor upstream of the drive. TOPNLMS can source these components alongside the ATV12H037M2, enabling a single-order procurement that covers the full motor starter assembly. For sites requiring signal isolation between the PLC analog output and the drive reference input, a PACT RCP signal isolator or equivalent DIN-rail isolator module is recommended to eliminate ground loop interference — particularly important in older facilities with mixed grounding standards.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor cable and terminal wiring from my ATV11?
A: In most cases, yes. The ATV12H037M2 uses the same U/V/W output terminal arrangement and R/S/T input terminals as the ATV11 for this power class. Verify terminal torque specifications in the ATV12 installation guide before reconnecting.

Q: Do I need to re-enter all drive parameters after replacement?
A: Yes. The ATV12H037M2 ships with factory defaults. Use the SoMove PC software or the integrated keypad to restore your motor nameplate data (rated voltage, current, frequency, speed) and application-specific settings (acceleration ramp, deceleration ramp, reference source). If you have a saved SoMove configuration file from the original drive, upload it directly to reduce commissioning time.

Q: Is Modbus RTU communication compatible with my existing PLC program?
A: The ATV12H037M2 supports Modbus RTU over RS-485 with the same register map as the Altivar 12 series. If your PLC program (M221, M241, or third-party) was already addressing an ATV12 unit, no changes to the communication block are required. For ATV11 replacements, a register map comparison is recommended as the ATV11 used a different Modbus address structure.

Q: Will the drive fit in the same cabinet cutout or DIN rail slot?
A: The ATV12H037M2 has a width of 72 mm on DIN rail. Verify your existing cabinet rail space. If replacing an ATV11HU09M2 or similar narrow-body unit, confirm the width clearance before ordering.

Q: What commissioning steps are required for a pump or fan application?
A: Set the application macro to “Pump/Fan” via the ATV12 keypad or SoMove. Configure the analog reference input (AI1: 0–10 V or 4–20 mA), set minimum and maximum output frequency to match your system curve, and enable the auto-restart function if unattended operation is required. Test at low speed before full-load commissioning.

Q: Can I use a braking resistor with this drive?
A: Yes. The ATV12H037M2 includes a dynamic braking transistor terminal (PA/PB). Connect an appropriately rated external braking resistor for applications with high-inertia loads or frequent deceleration cycles.

Warranty Assurance

Every ATV12H037M2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, output voltage verification across all three phases, and communication port validation where applicable. Units that fail inspection are quarantined and never dispatched.

In the event of a warranty claim, our after-sales team responds within 24 business hours. We support replacement dispatch, return merchandise authorization (RMA), and technical root-cause documentation for your maintenance records. For urgent production-line failures, we offer expedited shipping from our Xiamen warehouse to minimize downtime.

Procurement teams can request a pre-shipment test report and product photos prior to payment confirmation. We accept T/T bank transfer and support standard commercial invoice and packing list documentation for customs clearance.

For volume orders (5+ units), contact our sales team for lead time confirmation and bulk pricing. We maintain buffer stock of common Altivar 12 variants to support planned maintenance shutdowns and emergency breakdown scenarios.
