Schneider ATV11HU09M2E Ruggedized AC Drive for Harsh Environments

Product Overview

Schneider ATV11HU09M2E Ruggedized AC Drive for Harsh Environments

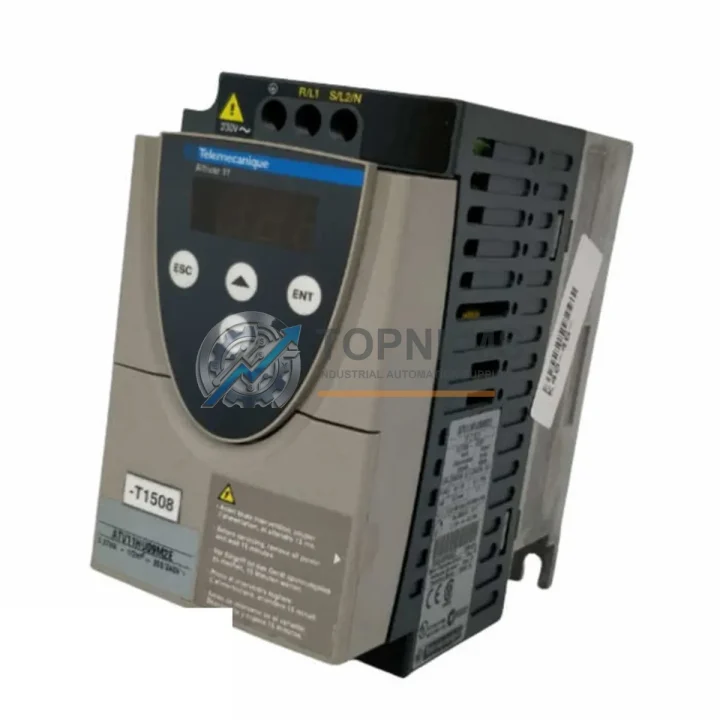

The Schneider Electric ATV11HU09M2E is a compact, ruggedized AC variable speed drive from the Altivar 11 series, engineered to deliver precise motor speed control under the most demanding industrial conditions. Rated at 0.09 kW (1/8 HP) with a 200–240 V single-phase input, this drive is purpose-built for continuous operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions that routinely challenge standard automation hardware.

Designed to IEC and CE standards, the ATV11HU09M2E integrates seamlessly into existing Schneider Electric control architectures. Its compact DIN-rail-compatible footprint makes it an ideal fit for space-constrained control cabinets in process plants, utilities, and heavy manufacturing facilities. The drive’s built-in EMC filter and robust power stage ensure stable output even when installed adjacent to high-frequency switching devices, servo amplifiers, or large contactors — protecting both the motor and the broader control system from disruptive transients.

In industrial environments where uptime is non-negotiable, the ATV11HU09M2E provides critical protection for three-phase induction motors driving pumps, fans, conveyors, compressors, and agitators. Its integrated motor thermal protection, overcurrent trip, and undervoltage/overvoltage detection circuits act as a first line of defense against premature motor failure — reducing unplanned downtime and extending asset life across continuous production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The ATV11HU09M2E is most effective when deployed as part of a coordinated protection and control strategy. In a typical motor control center (MCC) or control cabinet, it operates alongside Schneider Electric TeSys D-series contactors and GV2 motor circuit breakers, which provide upstream short-circuit and overload protection before the drive’s own internal safeguards engage. For applications requiring precise process feedback, the drive pairs naturally with Schneider Electric Modicon M221 PLCs or M241 PLCs, which issue speed reference commands via analog output or Modbus RTU — a communication protocol natively supported by the Altivar 11 platform.

In cabinet installations where power quality is a concern, pairing the ATV11HU09M2E with a Schneider Electric Acti9 iC60N circuit breaker on the supply side ensures coordinated protection against short circuits and ground faults. For multi-drive panels, Schneider Electric Phaseo ABL8 24 VDC power supplies provide stable auxiliary power to the PLC, I/O modules, and safety relays — maintaining control circuit integrity even during main power fluctuations. Where functional safety is mandated, integration with a Schneider Electric Preventa XPSAF safety relay module enables STO (Safe Torque Off) compliance, meeting IEC 62061 and ISO 13849 requirements for machinery safety.

For distributed I/O architectures, the drive’s analog and digital terminals interface directly with Schneider Electric TM3 expansion I/O modules, enabling remote speed setpoint adjustment and drive status monitoring without additional gateways. In installations requiring fieldbus connectivity beyond Modbus RTU, the Altivar 11 VW3A11101 communication card extends the drive’s protocol support. Terminal block wiring within the cabinet is typically managed using Schneider Electric Linergy TB terminal blocks, which provide reliable, vibration-resistant connections in high-cycle industrial environments.

Application in Critical Infrastructure

The ATV11HU09M2E has established a strong track record across critical infrastructure sectors where equipment failure carries significant operational and safety consequences.

In water and wastewater treatment facilities, the drive controls small dosing pumps and aeration blower motors that must operate continuously across wide temperature ranges and in atmospheres laden with corrosive gases. Its sealed enclosure and robust EMC filtering prevent interference from nearby variable-frequency pump drives and SCADA communication equipment.

In oil and gas upstream and midstream operations, the ATV11HU09M2E is deployed in non-hazardous auxiliary systems within wellhead control panels and pipeline compression stations — managing cooling fans, lube oil pumps, and instrumentation air compressors. Its wide operating temperature range and vibration tolerance make it suitable for skid-mounted equipment exposed to outdoor conditions.

In metallurgical and steel processing plants, the drive manages auxiliary conveyor motors and cooling system fans in environments with extreme thermal cycling, heavy particulate contamination, and high electromagnetic noise from arc furnaces and induction heating equipment. The ATV11HU09M2E’s built-in EMC filter and robust power stage maintain stable motor control under these conditions.

In mining operations, the drive is used in ventilation fan control, dewatering pump systems, and conveyor auxiliary drives — applications where reliability and ease of replacement are paramount. Its compact form factor and standard DIN-rail mounting allow rapid field replacement with minimal downtime, a critical advantage in remote mine sites where spare parts logistics are challenging.

In power generation and substation auxiliary systems, the ATV11HU09M2E controls cooling fans and lubrication pumps for transformers and generators, where continuous availability is essential and any unplanned stop can trigger cascading system events.
