Schneider ATV320U75N4C Ruggedized Variable Speed Drive for Harsh Environments

Product Overview

Schneider ATV320U75N4C Ruggedized Variable Speed Drive for Harsh Environments

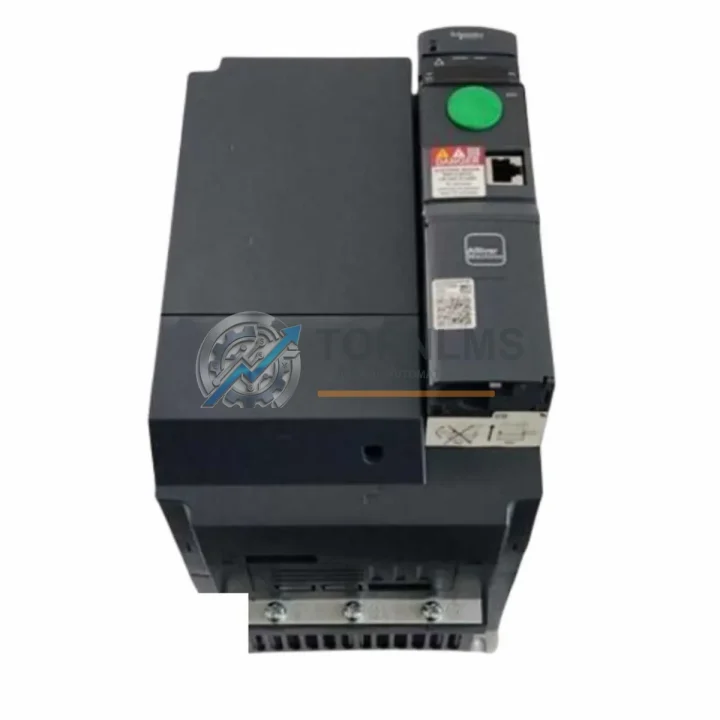

The Schneider Electric ATV320U75N4C is a 7.5kW three-phase variable speed drive from the Altivar 320 series, engineered to deliver consistent, reliable motor control in the most demanding industrial environments. Designed for continuous operation under conditions of high ambient temperature, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this drive is a proven solution for engineers and procurement teams who cannot afford unplanned downtime. Whether deployed in a sealed control cabinet on a petrochemical platform, a dusty cement production line, or a high-cycle packaging system, the ATV320U75N4C maintains stable output and protects connected motor assets across the full operational lifecycle.

Built on Schneider Electric’s Altivar 320 platform, this drive accepts a 3-phase 380–500V AC input and delivers precise variable frequency output to control asynchronous and synchronous motors up to 7.5kW. The integrated EMC filter meets EN 61800-3 Category C2 requirements, suppressing conducted and radiated emissions that would otherwise disrupt co-located PLCs, I/O modules, and communication networks within the same control cabinet. The native CANopen communication port enables seamless integration with Modicon M221, M241, and M251 PLC platforms, as well as third-party controllers supporting the CiA 402 drive profile, eliminating the need for additional communication gateways in most standard machine architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The ATV320U75N4C is rarely deployed in isolation. In a typical industrial control cabinet, it operates alongside a coordinated set of protection, control, and communication components that together ensure system-level resilience. On the power input side, a Schneider Electric GV2ME or GV3ME motor circuit breaker provides upstream short-circuit and overload protection, while a Schneider Electric LC1D series contactor handles safe motor isolation during maintenance windows. For installations where power quality is a concern — particularly in facilities sharing bus infrastructure with heavy welding equipment or large compressors — a line reactor or dV/dt output filter is recommended upstream and downstream of the drive respectively.

Within the same Altivar 320 ecosystem, the VW3A3608 CANopen communication card (where not factory-fitted) and the VW3A3616 Ethernet/IP card extend connectivity options for sites migrating toward Ethernet-based architectures. The drive integrates cleanly with Schneider Electric’s Modicon TM221CE24R and TM241CE24T PLCs via CANopen, enabling coordinated multi-axis speed control without additional protocol converters. For safety-critical applications, the ATV320U75N4C supports STO (Safe Torque Off) function in accordance with IEC 62061 SIL 2 and ISO 13849-1 PL d, allowing direct connection to a Schneider Electric Preventa XPSAF or XPSMF safety relay module without external contactors in the motor circuit.

On the I/O side, the drive’s onboard digital and analog I/O can be extended using Schneider Electric TM3 expansion modules connected to the host PLC, providing additional process feedback channels for pressure, temperature, or flow sensors common in pump and fan applications. For installations requiring terminal block flexibility, Phoenix Contact or Weidmüller DIN-rail terminal modules are commonly used alongside the ATV320 series to organize field wiring within the cabinet. The drive’s built-in PID controller further reduces the need for external loop controllers in single-loop applications such as pressure-controlled pump stations or HVAC air handling units.

Application in Critical Infrastructure

The ATV320U75N4C has established a strong track record across critical infrastructure sectors where motor drive reliability directly impacts process continuity and personnel safety.

Oil & Gas: On offshore platforms and onshore processing facilities, the drive controls submersible pump motors, gas compressor auxiliaries, and cooling fan systems. Its integrated EMC filter and STO safety function are particularly valued in Zone 2 classified areas where the drive is installed in pressurized or purged enclosures. The CANopen interface allows integration with Modicon-based safety PLCs managing emergency shutdown sequences.

Mining & Mineral Processing: In underground and open-cut mining operations, the ATV320U75N4C drives conveyor belt motors, slurry pump drives, and ventilation fan systems. The drive’s vibration tolerance per IEC 60068-2-6 and its wide operating temperature range make it suitable for surface installations in extreme climates as well as underground environments with high particulate loading.

Water & Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants deploy the ATV320U75N4C on booster pump stations, aeration blowers, and sludge transfer pumps. The drive’s energy-saving control mode reduces electricity consumption during low-demand periods, while the PID function maintains constant pressure or flow without external controllers.

Power Generation & Utilities: In thermal and hydroelectric power stations, the drive controls cooling water pumps, fuel oil transfer pumps, and auxiliary fan systems. Its compatibility with Modicon M241 PLCs and SCADA systems via CANopen enables remote monitoring and speed adjustment from the plant control room.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and foundries operate the ATV320U75N4C in environments with intense electromagnetic interference from arc furnaces and induction heaters. The integrated EMC filter and robust shielding design maintain stable drive operation and protect the CANopen network from conducted noise that would otherwise cause communication faults in co-located Modicon PLCs and remote I/O racks.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide on the ATV320U75N4C?
All ATV320U75N4C units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or repair coordination within agreed lead times.

Q2: How is the unit tested before shipment?
Every ATV320U75N4C undergoes a pre-shipment functional test including power-on verification, parameter initialization check, and communication port validation. Units are inspected for physical integrity, correct firmware version, and absence of fault codes before packaging. A test report is available upon request for critical infrastructure procurement.

Q3: Is the ATV320U75N4C compatible with my existing Modicon PLC and CANopen network?
Yes. The ATV320U75N4C implements the CiA 402 drive profile over CANopen, which is natively supported by Schneider Electric Modicon M221, M241, and M251 PLCs, as well as a wide range of third-party CANopen masters. Network configuration is performed via the drive’s front keypad or SoMove PC software. TOPNLMS technical support can assist with node address and baud rate configuration for your specific network topology.

Q4: Can TOPNLMS support long-term supply and replacement for this model?
Yes. TOPNLMS maintains stock of the ATV320U75N4C and related Altivar 320 series drives to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For customers managing multi-site installations or long-term service contracts, we offer reserved stock arrangements and priority dispatch agreements. Contact our team to discuss your supply continuity requirements.
