Allen-Bradley 1785-BCM Original Industrial Spare PLC-5 Compatible

Product Overview

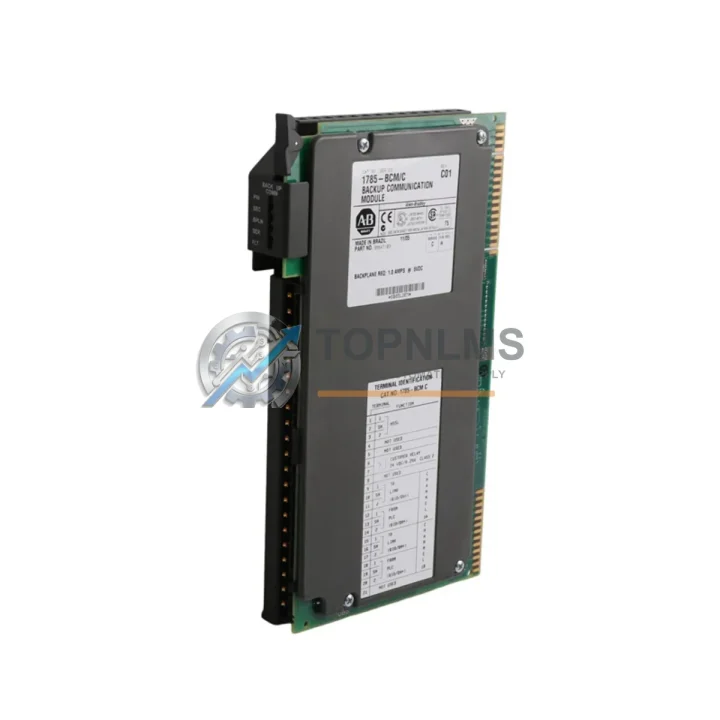

Allen-Bradley 1785-BCM Original Industrial Spare PLC-5 Compatible: Ensuring System Stability in Critical Automation Environments

In high-availability manufacturing and process control environments, a single point of failure in the PLC backbone can cascade into hours of unplanned downtime, lost production, and costly emergency repairs. The Allen-Bradley 1785-BCM Backup Communications Module is the cornerstone of PLC-5 redundancy architecture — a purpose-engineered spare that allows your control system to maintain continuous operation even when a primary processor fault occurs. Sourced as an original Allen-Bradley component, the 1785-BCM is inspected, tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a long-term strategic spare.

Whether you are managing a legacy PLC-5 system in a chemical plant, automotive assembly line, water treatment facility, or discrete manufacturing cell, the 1785-BCM provides the redundancy handshake that keeps your process running. Its role in the control cabinet is not merely passive — it actively monitors the primary chassis, synchronizes data between redundant processors, and executes a bumpless transfer in the event of a primary failure. For facilities that cannot afford downtime, this module is not optional; it is essential infrastructure.

Critical Technical Specs

Preventive Maintenance Strategy for PLC-5 Redundancy Systems

A robust preventive maintenance program for any PLC-5 redundancy installation extends well beyond the 1785-BCM itself. During scheduled shutdowns or annual inspections, maintenance teams should treat the entire redundancy chassis as a system — not a collection of isolated components. When replacing or inspecting the 1785-BCM, it is best practice to simultaneously verify the condition of the 1785-L80B or 1785-L86B PLC-5 processors in both the primary and secondary chassis slots, as processor firmware version mismatches can prevent proper redundancy handshaking.

The 1785-CHBM chassis backplane module should be inspected for corrosion or connector wear, as backplane integrity is fundamental to reliable data synchronization between redundant processors. At the same time, the 1771-P7 or 1771-P4S power supply modules feeding the redundancy chassis deserve close attention — an aging power supply with marginal output voltage is a common root cause of spurious redundancy switchovers that are often misdiagnosed as BCM failures.

Within the same control cabinet, the 1771-OBD or 1771-IBD I/O modules on the remote I/O drops should be checked for output leakage and input threshold drift, particularly in high-cycle applications. The 1770-KF2 or 1784-KTX Data Highway Plus communication cards used for SCADA or HMI connectivity should also be tested for link integrity, as DH+ network degradation can mask itself as intermittent processor faults.

For facilities running PanelView 550 or PanelView 900 HMI terminals connected to the PLC-5 system, a firmware and battery check during the same maintenance window prevents unexpected HMI reboots that can disrupt operator visibility during a redundancy switchover event. Additionally, 1492-J terminal blocks and 1492-FB fuse blocks in the field wiring marshalling panels should be torque-checked and inspected for discoloration — loose terminations and blown fuses are among the most common causes of I/O faults that trigger unnecessary redundancy transfers.

Finally, stocking a spare 1785-BCM alongside a 1785-ME32 or 1785-ME64 EEPROM memory module ensures that in the event of a full processor replacement, the application program can be restored immediately without relying on an upstream backup server — a critical consideration for facilities operating in remote locations or with limited IT support on-site.

Strategic Replacement Solutions

The Allen-Bradley 1785-BCM addresses one of the most persistent challenges in legacy PLC-5 system management: maintaining redundancy capability without migrating to a newer control platform. Many facilities have invested heavily in PLC-5 infrastructure — custom ladder logic, field wiring, operator training, and process interlocks — and a full migration to ControlLogix or CompactLogix is neither economically justified nor operationally feasible in the short term. The 1785-BCM provides a direct, drop-in replacement path that preserves the existing redundancy architecture without requiring any program changes, I/O rewiring, or requalification of the control system.

When a primary BCM fails, the window for sourcing a replacement is narrow. Production pressure, safety requirements, and regulatory compliance timelines mean that procurement teams cannot afford to wait weeks for a factory-new module. Stocking the 1785-BCM as a pre-qualified spare — tested, documented, and ready to install — reduces mean time to repair (MTTR) from days to hours. Each unit shipped from TOPNLMS undergoes functional verification prior to dispatch, and is accompanied by a test report confirming module identification, communication link status, and redundancy handshake validation.

For facilities managing multiple PLC-5 redundancy cells across a plant, a tiered sparing strategy is recommended: one 1785-BCM per redundancy pair as an on-site hot spare, with a second unit held at the central maintenance warehouse as a buffer against simultaneous failures in multi-cell installations. This approach aligns with ISA-55.1 spare parts management guidelines and significantly reduces the risk of extended downtime during peak production periods.

Support FAQ

Q1: Is the 1785-BCM compatible with all PLC-5 redundancy chassis variants?
The 1785-BCM is designed for use with Allen-Bradley PLC-5 redundancy chassis configurations, including the 1785-A4L and 1785-A7L chassis. Compatibility depends on the firmware revision of the paired PLC-5 processors. We recommend confirming your processor series (e.g., 1785-L80B, 1785-L86B) and firmware version before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before shipment?
Every 1785-BCM unit is functionally tested prior to dispatch. Testing includes module power-on verification, backplane communication check, and redundancy link status confirmation. A test report is included with each shipment. Units that do not pass all test criteria are not shipped.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund after fault verification. Contact [email protected] to initiate a claim.

Q4: How should I manage spare parts lifecycle for aging PLC-5 systems?
For PLC-5 systems beyond 15 years of service, we recommend a proactive sparing strategy that includes at minimum: one BCM, one processor module, and one power supply per redundancy cell. Annual inspection cycles should include functional testing of the standby BCM in-situ to confirm switchover readiness. As Allen-Bradley has discontinued active production of PLC-5 components, sourcing from qualified industrial spare parts suppliers like TOPNLMS ensures access to tested, warranted inventory without the risk of counterfeit or untested units from unverified sources.
