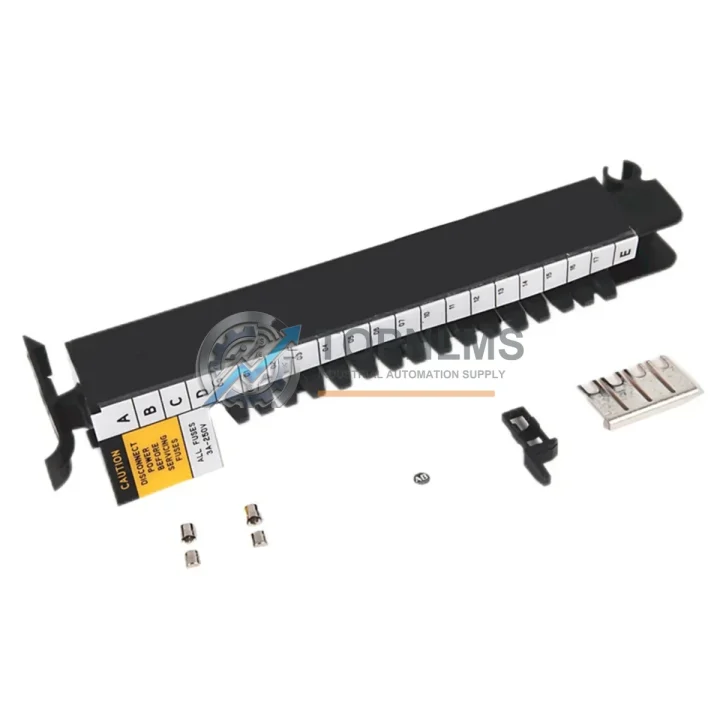

Allen-Bradley 1771-WHFB Original Industrial Spare PLC-5

Product Overview

Allen-Bradley 1771-WHFB Original Industrial Spare PLC-5

The Allen-Bradley 1771-WHFB Field Wiring Arm (FWA) is a critical mechanical and electrical interface component within the Rockwell Automation PLC-5 / 1771 I/O system architecture. Designed to connect field wiring directly to 1771-series I/O modules without disturbing the module itself, the 1771-WHFB enables maintenance teams to remove and replace I/O modules during live operations — a capability that is indispensable in continuous-process industries such as petrochemical, food and beverage, automotive assembly, and utilities.

In facilities where PLC-5 systems have been in service for 15 to 25 years, the 1771-WHFB is one of the most frequently replaced mechanical accessories. Repeated module swaps, vibration, and thermal cycling cause the wiring arm’s terminal blocks and locking tabs to wear. Sourcing a genuine 1771-WHFB before failure occurs is the single most effective way to prevent unplanned downtime during an otherwise routine I/O module replacement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for PLC-5-based control systems must account for the full ecosystem of components that interact with the 1771-WHFB. When a maintenance engineer schedules a chassis inspection or I/O module audit, the field wiring arm should never be evaluated in isolation.

Begin with the I/O modules themselves. The 1771-WHFB is designed to mate with the full range of 1771-series I/O modules, including the 1771-IAD AC input module, the 1771-OAD AC output module, and the 1771-IFE analog input module. If terminal block wear is detected on the wiring arm, it is highly probable that the mating connector on the I/O module has also experienced mechanical stress. Inspecting and, where necessary, replacing the associated I/O module at the same time eliminates a second maintenance window.

The 1771 I/O chassis itself — available in 4-slot, 8-slot, and 16-slot configurations — should be inspected for backplane connector integrity whenever a wiring arm is replaced. Backplane damage is often caused by the same vibration cycles that degrade the 1771-WHFB. Similarly, the chassis power supply, such as the 1771-P4S or 1771-P7, should be load-tested during any planned outage, as power supply degradation frequently manifests as intermittent I/O faults that are misdiagnosed as wiring arm failures.

Field wiring integrity is equally important. Technicians should verify that all conductors terminated in the 1771-WHFB meet the original torque specification. Loose terminations in high-vibration environments cause resistive heating that accelerates insulation breakdown. If the facility uses marshalling panels or terminal strips between the field device and the PLC-5 chassis, those junction points — including DIN-rail mounted terminal blocks and signal isolators — should be included in the same inspection cycle.

For systems that include the 1771-SDN DeviceNet Scanner Module or the 1771-KF2 DH+ Communication Module, the communication wiring routed through adjacent field wiring arms should be checked for shield continuity and proper grounding. Communication faults introduced by degraded wiring arms are among the most difficult to diagnose without a systematic inspection approach.

Finally, the 1747-L553 SLC 5/05 or the 1785-L80E PLC-5/80E processor module — if present in the same control cabinet — should be included in the maintenance log. Processor firmware and battery status checks are low-cost, high-value tasks that are easily performed during the same planned outage used to replace a 1771-WHFB.

Strategic Replacement Solutions

The 1771-WHFB is a direct, drop-in replacement for any existing 1771-WHFB installation. No rewiring, no re-termination of the I/O module, and no changes to the PLC-5 program are required. The field wiring arm is designed to be removed and reinstalled with the I/O chassis energized, provided that appropriate electrical safety procedures are followed.

For facilities that are beginning a phased migration from PLC-5 to ControlLogix or CompactLogix platforms, maintaining a stock of 1771-WHFB units is a cost-effective strategy. The migration timeline for large PLC-5 installations typically spans 3 to 7 years. During that period, the existing 1771 I/O infrastructure must remain fully operational. A single unplanned failure of a field wiring arm — if no spare is available — can halt production for 24 to 72 hours while a replacement is sourced and shipped.

Stocking two to four 1771-WHFB units per chassis is a widely adopted industry practice. At the unit cost of a field wiring arm relative to the cost of a single hour of unplanned downtime in a continuous-process facility, the return on investment is immediate. TOPNLMS maintains ready stock of the 1771-WHFB and can confirm availability, lead time, and shipping options within one business day of inquiry.

Support FAQ

Q1: How do I verify that a 1771-WHFB is compatible with my specific I/O module?
The 1771-WHFB is compatible with all Allen-Bradley 1771-series I/O modules that use the half-width, B-size form factor. Check the module catalog number against the 1771 I/O Selection Guide (Rockwell Publication 1771-SG001). If the module’s wiring arm designation is listed as WHFB, the 1771-WHFB is the correct replacement. Contact TOPNLMS with your module catalog number for confirmation before ordering.

Q2: Can the 1771-WHFB be replaced without powering down the I/O chassis?
Yes. The field wiring arm is designed for hot-swap replacement. The I/O module is removed from the chassis while the wiring arm — with all field wiring intact — remains in place. The replacement module is then inserted into the wiring arm. This procedure eliminates the need to de-energize the chassis and avoids disrupting adjacent I/O points. Always follow NFPA 70E and local electrical safety regulations.

Q3: What is the recommended spare quantity for a facility with multiple PLC-5 chassis?
Industry practice recommends maintaining a minimum of one 1771-WHFB per four I/O slots per chassis, with a facility-wide minimum of four units regardless of chassis count. For facilities with more than three PLC-5 chassis, a standing purchase order or blanket order with TOPNLMS ensures replenishment without requiring individual purchase approvals for each unit.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, terminal block failure, and mechanical integrity of the locking mechanism under normal operating conditions. Each unit shipped by TOPNLMS is inspected and function-tested prior to dispatch. In the event of a warranty claim, contact [email protected] with the order number and a description of the fault. TOPNLMS will arrange a replacement shipment or credit within five business days of claim receipt.
