Allen-Bradley 1771-CP1 Replacement/Upgrade for PLC-5

Product Overview

Allen-Bradley 1771-CP1 Replacement/Upgrade Solution for PLC-5: Seamless Migration & System Continuity

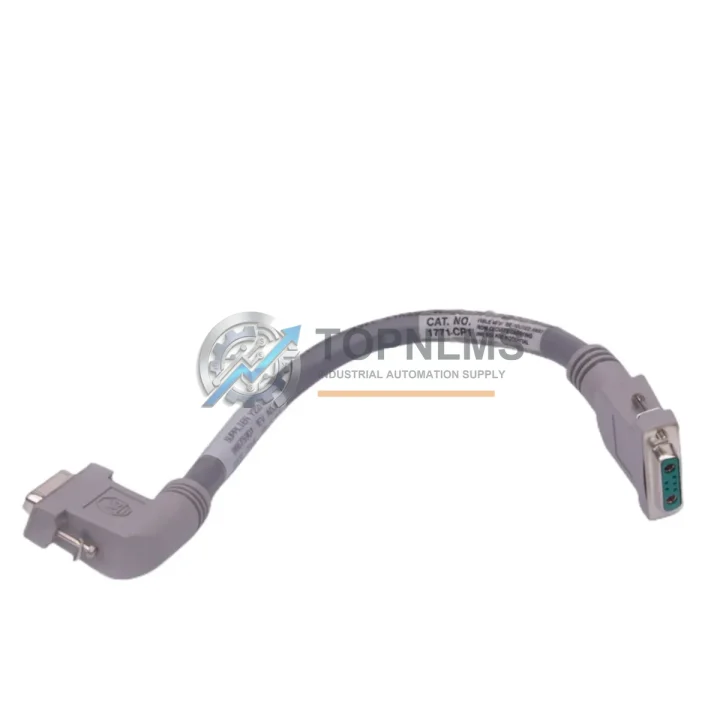

The Allen-Bradley 1771-CP1 I/O Chassis Interconnect Cable is a critical component within the Rockwell Automation PLC-5 platform, providing the physical backbone that links I/O chassis in multi-rack configurations. As the PLC-5 family has reached end-of-life status, many facilities operating legacy 1771-series hardware face an urgent need to source verified replacement cables or plan a structured migration to a supported control architecture. TOPNLMS supplies the 1771-CP1 from certified inventory, enabling engineers to restore system continuity without forcing an immediate full-system overhaul.

In a typical PLC-5 installation, the 1771-CP1 interconnects the primary 1771-A1B, 1771-A2B, 1771-A3B, or 1771-A4B I/O chassis to the processor chassis, carrying both power and I/O data across the backplane link. Failure or degradation of this cable is one of the most common causes of intermittent I/O faults, chassis communication errors, and unplanned shutdowns in aging PLC-5 systems. A direct 1771-CP1 replacement restores the original wiring topology without requiring any changes to the processor program, I/O addressing, or rack configuration — minimizing downtime to the duration of a physical swap.

For facilities planning a phased migration from PLC-5 to ControlLogix or CompactLogix, the 1771-CP1 plays a transitional role. During the migration window, the existing 1771-series I/O modules — including analog input modules such as the 1771-IFE, discrete output modules such as the 1771-OBD, and specialty modules such as the 1771-IXHR thermocouple input — continue to operate in their original chassis. The 1771-CP1 keeps these racks communicating reliably while the new ControlLogix L7x or L8x processor and 1756-series I/O are commissioned in parallel. This parallel-run approach is standard practice in brownfield retrofits where process continuity cannot be interrupted.

When the migration advances to the point where 1771-series I/O is being retired, engineers typically introduce a 1771-SN Remote I/O Scanner or a 1756-DHRIO ControlLogix communication module to bridge the legacy Remote I/O network. The 1771-CP1 remains in service until the last 1771 chassis is decommissioned, making a verified spare essential throughout the transition period. TOPNLMS maintains stock of the 1771-CP1 specifically to support customers in this multi-year migration window.

Physical installation of the 1771-CP1 requires no special tooling. The cable connects between the I/O chassis expansion port and the adjacent chassis using the standard 1771-series keyed connector. Polarity and orientation are mechanically enforced by the connector housing, eliminating mis-wiring risk. Cable routing should follow the original Rockwell Automation installation guidelines, maintaining separation from high-voltage conductors and avoiding sharp bend radii that can stress the internal conductors over time. In control cabinets where space is constrained, the 1771-CP1’s compact form factor allows installation even in densely populated enclosures housing 1771-P4S or 1771-P7 power supplies alongside multiple I/O racks.

From a communications perspective, the 1771-CP1 operates transparently within the PLC-5 I/O scan cycle. No protocol configuration is required — the cable is passive and carries the 1771 backplane signals directly. This distinguishes it from active communication modules such as the 1771-KGM or 1771-SDN DeviceNet Scanner, which require explicit configuration in RSLogix 5. Replacing the 1771-CP1 does not affect any communication module configuration, I/O map, or program logic.

For procurement teams, TOPNLMS provides the 1771-CP1 with full pre-shipment functional testing, original-equivalent packaging, and a 12-month warranty covering manufacturing defects and electrical performance. Units are dispatched from Xiamen within 1–3 business days of order confirmation. International shipping is available via DHL, FedEx, and UPS, with tracking provided at the time of dispatch. For large-quantity orders or urgent plant-shutdown requirements, expedited processing is available — contact our team directly at [email protected] or +86 18359293191.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PLC-5 to ControlLogix migration involves more than replacing a single cable. During the transition, the 1771-CP1 works alongside a range of components that must be sourced, tested, and staged in parallel. The 1771-P4S Power Supply and 1771-P7 Power Supply continue to power the legacy I/O racks throughout the migration window and are commonly replaced as preventive maintenance at the same time as the interconnect cable. The 1771-IFE Analog Input Module and 1771-OBD Discrete Output Module remain in their chassis slots, continuing to serve field instruments and actuators until the new 1756-IF16 and 1756-OB16I ControlLogix I/O modules are wired and commissioned.

On the communications side, the 1756-DHRIO ControlLogix Communication Module bridges the legacy Data Highway Plus network, allowing the new ControlLogix processor to read and write to PLC-5 data files during the parallel-run phase. The 1784-U2DHP USB-to-DH+ Adapter is typically used by commissioning engineers to connect a laptop running RSLogix 5 and RSLogix 5000 simultaneously, enabling live program comparison and I/O verification without a dedicated programming terminal. For facilities that also operate a legacy HMI such as a PanelView 550 or PanelView 900, the DH+ network must remain stable throughout the migration — making the 1771-CP1 a linchpin component until the HMI is also upgraded to a PanelView Plus 7 or FactoryTalk View SE station. Signal isolators such as the Phoenix Contact MACX MCR-SL series are often introduced at this stage to protect the new 1756-series analog inputs from legacy field wiring that may carry ground loops or noise accumulated over decades of service.

Retrofit Guidance FAQ

Q: Will replacing the 1771-CP1 require any changes to my PLC-5 program?
No. The 1771-CP1 is a passive interconnect cable. It carries no configuration data and has no effect on the processor program, I/O map, or data table addresses. Replacement is a physical swap only.

Q: Can I use the 1771-CP1 with a ControlLogix processor?
No. The 1771-CP1 is specific to the 1771-series I/O chassis backplane. ControlLogix uses the 1756-series backplane, which is physically and electrically incompatible. However, the 1771-CP1 remains in service for legacy 1771 racks during a phased migration.

Q: What are the physical space requirements for installation?
The 1771-CP1 connects between adjacent chassis using the standard expansion port. No additional DIN rail or panel space is required. Ensure adequate cable slack for future maintenance access.

Q: How do I verify the cable is functioning correctly after replacement?
After installation, power up the chassis and observe the I/O status indicators on the PLC-5 processor. All previously configured I/O points should return to their normal scan status. Use RSLogix 5 to confirm no I/O fault bits are set in the processor status file (S:).

Q: Is this unit compatible with all PLC-5 processor variants?
Yes. The 1771-CP1 is compatible with all PLC-5 processor variants including the PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, and PLC-5/60, as well as the PLC-5/VME series, provided they use 1771-series I/O chassis.

Warranty Assurance

Every 1771-CP1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes visual inspection and connector integrity verification to confirm it meets the original Allen-Bradley mechanical specification. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost, with priority processing to minimize impact on your operations.

Our after-sales team is reachable at [email protected] or +86 18359293191 for warranty claims, technical pre-sales questions, and urgent procurement support. We maintain stock buffers specifically for PLC-5 legacy components to ensure rapid fulfillment for plant shutdown and emergency maintenance scenarios. Bulk orders and long-term supply agreements are available for MRO and system integrator customers.
