Allen-Bradley 1771-DMC Original Industrial Spare PLC-5 Compatible: Ensuring System Stability in Critical Automation Environments

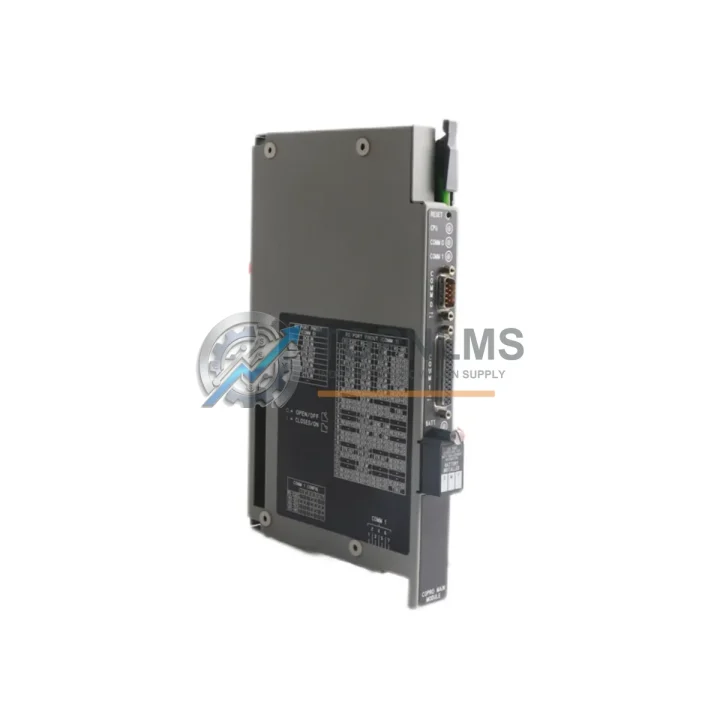

The Allen-Bradley 1771-DMC is an original PLC-5 Series Control Coprocessor Module engineered for high-demand industrial automation environments where system uptime is non-negotiable. Designed to extend the computational capability of the Allen-Bradley PLC-5 platform, the 1771-DMC offloads intensive mathematical and data-processing tasks from the main processor, enabling faster scan times and more responsive control logic across complex manufacturing lines, process plants, and utility infrastructure.

In facilities where PLC-5 systems have been in continuous operation for decades, the 1771-DMC remains a mission-critical component. Its role in distributed control architectures — coordinating with the main 1771-series I/O chassis, communicating over the 1771 backplane, and interfacing with upstream supervisory systems — means that a failed or degraded coprocessor module can cascade into broader system instability. Sourcing a verified original replacement is not merely a maintenance decision; it is a risk management imperative.

At TOPNLMS, every 1771-DMC unit is individually inspected, functionally tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan replacements without compromising production schedules.

Critical Technical Specs

Preventive Maintenance Strategy

When a 1771-DMC coprocessor module is flagged for replacement during a scheduled shutdown or emergency corrective maintenance event, experienced maintenance engineers know that the coprocessor rarely fails in isolation. A thorough inspection of the surrounding 1771 chassis ecosystem is essential to prevent repeat failures and ensure the restored system operates reliably through the next maintenance cycle.

Begin by auditing the 1771-P4S or 1771-P7 power supply module that feeds the chassis. Coprocessor faults are frequently preceded by marginal power supply output — voltage ripple or brownout conditions stress the module’s internal logic circuits over time. Replacing a worn power supply alongside the 1771-DMC eliminates the most common root cause of premature module failure.

Next, inspect the 1771-ASB remote I/O adapter module and any associated 1771-IFE or 1771-OFE analog I/O modules in the same chassis. These modules share the backplane with the coprocessor and are subject to the same thermal and electrical stress cycles. Verifying their firmware revision and functional status during the same maintenance window avoids a second unplanned outage weeks later.

The 1785-L40B or 1785-L80B PLC-5 processor module itself should be checked for battery condition and memory integrity. A coprocessor replacement is an ideal opportunity to swap the processor backup battery and verify that the user program and data table are intact — a step that takes minutes but can prevent hours of troubleshooting after restart.

Communication continuity is equally important. Inspect the 1771-KE or 1771-KF2 DH+ communication module for connector wear and cable integrity. Degraded DH+ communication can mask coprocessor errors and complicate fault diagnosis. Similarly, if the system uses 1771-SDN DeviceNet scanner modules, verify their configuration files match the current network topology before bringing the system back online.

On the field wiring side, check the 1492-series terminal blocks and wiring ducts connected to the I/O modules in the same cabinet. Loose terminations and oxidized contacts are a leading cause of intermittent faults that are often misattributed to module failures. A torque check and visual inspection of all terminal connections during the same maintenance window is a low-cost, high-value step.

Finally, if the facility operates an Allen-Bradley PanelView HMI connected to this PLC-5 system, verify that the HMI communication configuration and tag database remain synchronized after the coprocessor swap. A mismatch between the HMI tag file and the restored PLC program can generate nuisance alarms or, in worst cases, incorrect operator displays — a safety concern in process-critical applications.

Stocking a consolidated spare kit — 1771-DMC coprocessor, a compatible power supply, one analog I/O module, a DH+ communication module, and a processor battery — reduces mean time to repair (MTTR) for PLC-5 systems from hours to minutes and is the foundation of any mature industrial spare parts program.

Strategic Replacement Solutions

The Allen-Bradley 1771-DMC was designed for PLC-5 platforms that remain deeply embedded in automotive assembly, food and beverage processing, water treatment, and oil and gas facilities worldwide. While Rockwell Automation has transitioned its current portfolio to the ControlLogix and CompactLogix families, the cost and complexity of a full system migration — including I/O rewiring, program conversion, operator retraining, and production downtime — means that many facilities will continue operating PLC-5 systems for the foreseeable future.

The 1771-DMC provides a direct, drop-in replacement path that preserves the existing 1771 chassis, I/O wiring, and PLC-5 program without modification. This is the lowest-risk, lowest-cost strategy for restoring a failed system: no engineering hours for program conversion, no production line reconfiguration, and no revalidation of process parameters. The replacement module slots into the existing chassis position, the system restarts on the original program, and production resumes — typically within the same shift.

For facilities managing multiple PLC-5 systems across a plant floor, a centralized spare parts strategy built around verified original modules like the 1771-DMC delivers measurable ROI. A single unplanned production stoppage in a high-throughput manufacturing environment can cost multiples of the spare module’s procurement price in lost output alone. Maintaining one or two 1771-DMC units in the site spare parts room converts that risk into a predictable, budgeted line item.

TOPNLMS sources, inspects, and warehouses original Allen-Bradley 1771-series modules specifically to support maintenance teams operating legacy PLC-5 systems. Each unit is tested prior to shipment, documented with a test report, and backed by a 12-month warranty — providing the procurement assurance that industrial buyers require when sourcing critical spare parts outside the OEM channel.
