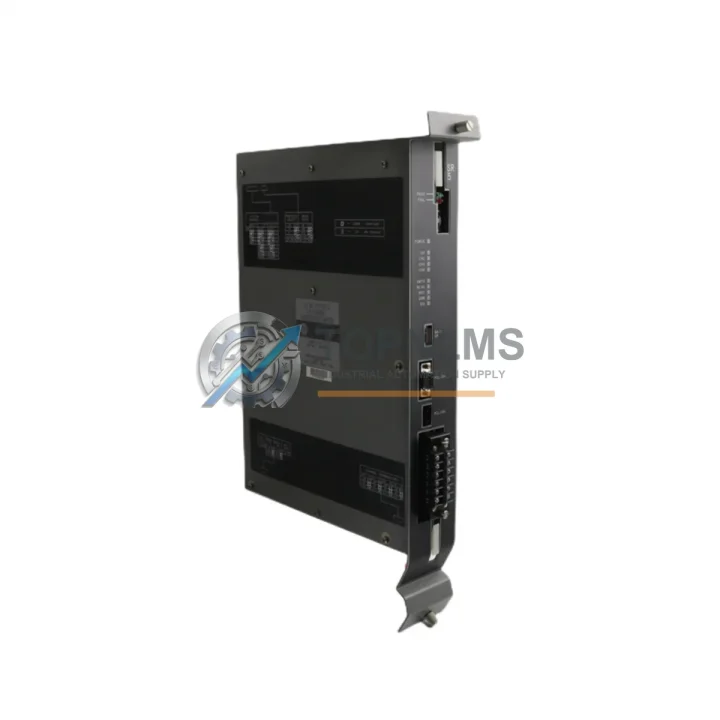

Allen-Bradley 1775-SR Original Industrial Spare PLC-3 Compatible: System Stability & Industrial Spare Maintenance Value

The Allen-Bradley 1775-SR Remote I/O Scanner Module is a mission-critical spare part for facilities running legacy PLC-3 Series control architectures. In industrial environments where unplanned downtime translates directly into production loss, having a verified, original 1775-SR on the shelf is not optional — it is a core element of any responsible maintenance strategy. This module manages remote I/O communication across the PLC-3 backplane, coordinating data exchange between the central processor and distributed field devices. When this component fails, the entire remote I/O network goes dark, halting automated processes across the affected control zone.

At TOPNLMS, every 1775-SR unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month replacement warranty. Whether you are stocking a critical spare for a continuous-process plant, replacing a failed unit during an emergency shutdown, or building out a preventive maintenance inventory for an aging PLC-3 installation, the 1775-SR available here is ready to ship and ready to perform.

Critical Technical Specs

Preventive Maintenance Strategy

A Remote I/O Scanner failure rarely occurs in isolation. In PLC-3 installations, the 1775-SR operates as the communication backbone between the central processor and all downstream 1771-series I/O racks. When planning a scheduled maintenance window or responding to an unplanned shutdown, maintenance engineers should treat the 1775-SR replacement as the trigger for a broader system health audit.

Begin with the 1775-ME processor module — the CPU that the 1775-SR serves. If the scanner has failed due to communication faults or backplane errors, the processor itself may have logged diagnostic codes worth reviewing before the system is returned to service. Alongside the processor, inspect the 1775-S4A or 1775-S4B power supply module; an unstable backplane voltage is a common root cause of scanner and communication module failures in aging PLC-3 racks.

At the remote I/O end, check the 1771-ASB Remote I/O Adapter Module installed in each remote chassis. The 1775-SR and 1771-ASB work as a matched pair — a degraded adapter will cause intermittent communication faults even after the scanner is replaced. While the remote chassis is open, inspect the 1771-OBD or 1771-OAD digital output modules and the 1771-IBD or 1771-IAD digital input modules for signs of contact wear, blown fuses, or heat damage. These I/O modules are high-cycle components and should be part of any planned spare inventory alongside the scanner.

For facilities running mixed analog and digital I/O, the 1771-IFE or 1771-OFE analog I/O modules deserve attention during the same inspection cycle. Analog signal drift is often misdiagnosed as a scanner fault; verifying calibration on these modules before and after a 1775-SR replacement prevents repeat call-outs. Additionally, inspect the 1771-WB or 1771-WG wiring arm assemblies — field wiring terminations are a frequent source of intermittent faults that surface during scanner resets.

At the cabinet level, verify the condition of the 1770-CD Remote I/O coaxial cable and trunk connectors. RIO cable degradation — particularly at bend points and connector terminations — is a leading cause of scanner communication errors in installations that have been in service for more than a decade. Replacing the 1775-SR without inspecting the cable plant is a common maintenance oversight that leads to repeat failures within months.

Finally, if the facility operates an HMI or supervisory layer connected to the PLC-3 system, verify that the 1784-KT or 1784-KTXD Data Highway Plus communication card is functioning correctly. A scanner replacement that restores I/O communication but leaves the supervisory link degraded will result in incomplete process visibility and potential alarm management gaps.

Strategic Replacement Solutions

The Allen-Bradley 1775-SR is a legacy component that has been out of standard production for many years. However, the installed base of PLC-3 systems in heavy industry — including steel, paper, chemical, and water treatment facilities — remains substantial. Many of these systems cannot be economically migrated to ControlLogix or CompactLogix platforms without significant re-engineering of the control logic, field wiring, and operator interfaces. For these facilities, sourcing original 1775-SR modules from verified aftermarket channels is the most cost-effective path to maintaining system uptime.

The 1775-SR is a direct slot-in replacement for a failed unit in any PLC-3 chassis. No firmware re-flashing or processor reconfiguration is required in most standard installations — the replacement module inherits the rack address and I/O configuration from the processor’s memory. This makes the 1775-SR one of the fastest-to-deploy spare parts in the PLC-3 ecosystem, with typical field replacement times under 30 minutes for a trained technician.

For facilities managing multiple PLC-3 systems across a site, stocking two 1775-SR units per control room is a widely recommended practice. The module’s role as the sole communication bridge between the processor and all remote I/O means that a single-unit failure without a spare on hand results in a full process shutdown. The cost of one additional spare is negligible compared to the cost of a single unplanned production stoppage.

TOPNLMS ships the 1775-SR with full pre-shipment testing documentation. Each unit is verified for backplane communication integrity and remote I/O link establishment before dispatch. Orders placed before the daily cut-off are processed same day, with express international shipping available to most industrial regions.

Support FAQ

Q1: Is the 1775-SR compatible with all PLC-3 chassis configurations?
The 1775-SR is designed for the Allen-Bradley PLC-3 platform (1775 series chassis). It is compatible with standard PLC-3 processor configurations and communicates with 1771-series remote I/O racks via the standard RIO coaxial cable network. If your installation uses a non-standard chassis or a modified backplane, please contact us with your full system configuration before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional failure under normal operating conditions. Each unit is pre-shipment tested for backplane communication and I/O link integrity. If a unit fails within the warranty period under normal use, TOPNLMS will provide a replacement at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How quickly can a 1775-SR be replaced in the field?
For a trained maintenance technician familiar with PLC-3 architecture, a 1775-SR swap typically takes 20–30 minutes including power-down, module extraction, replacement, and system restart. No special tools or software are required. The processor retains the I/O configuration in battery-backed memory, so the replacement module will resume normal scanning immediately upon system restart in most standard configurations.

Q4: Should I stock additional spare modules alongside the 1775-SR?
Yes. A comprehensive PLC-3 spare parts strategy should include at minimum: one 1775-SR scanner, one 1771-ASB remote I/O adapter per remote rack, one spare power supply module (1775-S4A or equivalent), and a set of the most frequently used 1771-series I/O modules in your installation. This combination covers the majority of unplanned failure scenarios and allows most faults to be resolved within a single maintenance shift without waiting for emergency procurement.
