Allen-Bradley 1769-IQ32T Replacement for CompactLogix

Product Overview

Allen-Bradley 1769-IQ32T Replacement for CompactLogix: Smooth Migration from Legacy I/O Systems

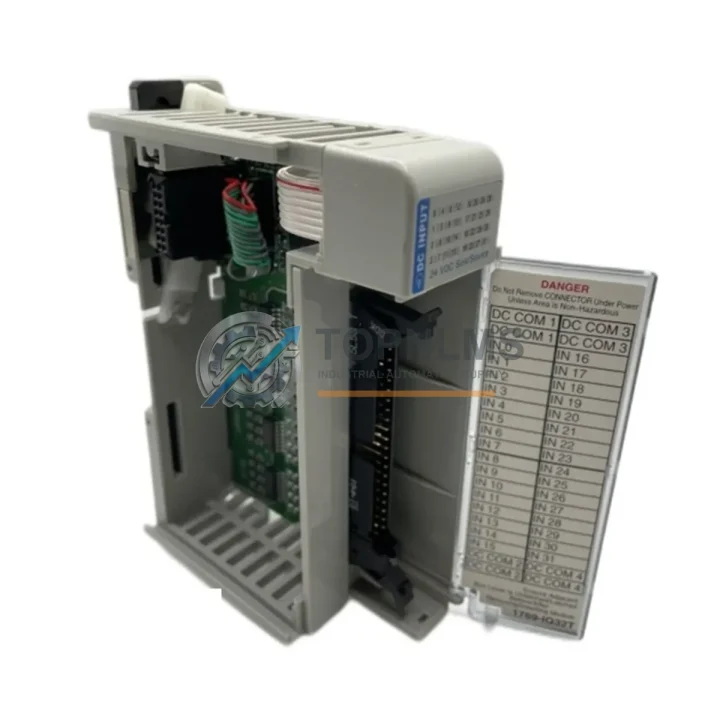

The Allen-Bradley 1769-IQ32T is a 32-point, 24VDC sinking (NPN) digital input module designed for the CompactLogix 1769 series control platform. As legacy I/O infrastructure ages and original modules reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to maintain uptime without committing to a full system overhaul. The 1769-IQ32T offers a proven, cost-effective path forward — whether you are replacing a failed module in an existing rack, consolidating spare parts inventory, or executing a phased migration away from older SLC 500 or MicroLogix-based architectures.

This module slots directly into any CompactLogix 1769 expansion rack alongside other 1769-series I/O modules, sharing the same compact form factor and side-bus connector architecture. Its 32 discrete input channels accept 24VDC field signals from proximity sensors, pushbuttons, limit switches, and other NPN-output field devices — making it a direct functional replacement for worn or obsolete input modules in the same rack without requiring rewiring of field terminals.

For facilities transitioning from older Allen-Bradley platforms such as the PLC-5 or SLC 500, the 1769-IQ32T is frequently deployed as part of a broader I/O modernization effort. In these projects, the existing field wiring — typically terminated on 1492-series wiring systems or third-party terminal blocks — can often be reused with minimal modification, significantly reducing installation labor and commissioning time. The module’s 24VDC input threshold and standard IEC 61131-2 Type 1 input characteristics ensure compatibility with the vast majority of field devices already installed in legacy control cabinets.

When migrating from a PLC-5 rack-based system, engineers typically pair the 1769-IQ32T with a 1769-L3x or 1769-L2x CompactLogix controller and a 1769-ECR right-end cap to complete the local I/O bank. The Logix Designer programming environment (formerly RSLogix 5000) supports direct import of legacy ladder logic, and the 1769-IQ32T’s input data maps cleanly into standard BOOL array tags — eliminating the need to rewrite field-level logic from scratch. Communication between the CompactLogix controller and upstream SCADA or DCS systems is handled via EtherNet/IP, with the 1769-L3x series supporting dual-port embedded Ethernet for ring topology redundancy.

In DCS migration scenarios — for example, replacing aging Honeywell or Siemens S7-300 remote I/O nodes with a CompactLogix-based distributed I/O solution — the 1769-IQ32T can be deployed in conjunction with a 1769-ADN DeviceNet adapter or a 1734-AENT POINT I/O EtherNet/IP adapter to extend the I/O footprint without adding a dedicated controller at each remote panel. This architecture reduces cabinet space requirements and simplifies network topology, particularly in facilities where existing DeviceNet or EtherNet/IP trunk cabling is already in place.

Power supply compatibility is straightforward: the 1769-IQ32T draws logic power from the 1769 bus and does not require a dedicated 24VDC field power supply for the input circuitry itself, though field devices must be powered from an appropriately rated external 24VDC source. In retrofit projects where the existing power distribution uses a 1769-PA2 or 1769-PB2 power supply module, no changes to the power architecture are typically required when swapping in a replacement 1769-IQ32T.

Physical installation is equally straightforward. The 1769-IQ32T occupies a single slot in the 1769 expansion rack and connects to field wiring via a removable 40-pin terminal block — the same connector style used across the 1769 I/O family, including the 1769-OB32 output module and 1769-IF4 analog input module. This means that in a like-for-like replacement scenario, the field wiring harness can be unplugged from the failed module and reconnected to the replacement unit in minutes, without disturbing individual wire terminations.

For system integrators managing multi-site spare parts programs, the 1769-IQ32T is a high-priority stocking item. Its broad applicability across CompactLogix L1, L2, L3, and L4 controller families — combined with its compatibility with both 1769 local I/O and 1769 expansion I/O configurations — makes it one of the most versatile modules in the CompactLogix ecosystem. Pairing it with a 1769-IQ16 for smaller I/O counts or a 1769-IQ32 for non-fused applications gives procurement teams flexible options to match exact field requirements without over-specifying.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CompactLogix I/O migration rarely involves a single module in isolation. When replacing or upgrading to the 1769-IQ32T, the following components are commonly required to complete the installation and ensure system integrity:

The 1769-OB32 32-point 24VDC sourcing output module is the natural companion to the 1769-IQ32T, sharing the same rack slot footprint and terminal block style — allowing mixed I/O banks to be built with consistent wiring practices. For analog signal acquisition from legacy 4–20mA transmitters, the 1769-IF4 4-channel analog input module integrates into the same 1769 rack without requiring a separate analog sub-system. Where the existing control cabinet uses a 1769-PA2 AC power supply module, no power infrastructure changes are needed when adding or replacing 1769-IQ32T modules, as the bus current budget is well within the PA2’s 2A output capacity for a standard mixed I/O configuration.

For communication-intensive retrofit projects, the 1769-L33ER CompactLogix controller with dual EtherNet/IP ports supports ring topology and provides the processing headroom needed to manage expanded I/O counts after migration. In remote I/O applications, the 1734-AENT POINT I/O EtherNet/IP adapter allows 1769-IQ32T-equivalent discrete input capacity to be distributed across the plant floor without running dedicated controller backplanes to each panel. Programming and firmware management during commissioning is handled via the 1756-USB or 1747-UIC USB-to-DH-485 interface cable, depending on whether the legacy controller being decommissioned requires a final configuration backup before cutover.

Where field signal isolation is required — particularly in environments with long cable runs or high electrical noise from variable frequency drives such as the PowerFlex 525 or PowerFlex 755 — signal isolators or surge protection modules should be installed between the field terminal block and the 1769-IQ32T input channels. Finally, for HMI integration, the PanelView Plus 7 communicates natively over EtherNet/IP with the CompactLogix platform, providing operators with real-time visibility into the discrete input states mapped from the 1769-IQ32T without requiring additional protocol conversion hardware.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a failed 1769-IQ32T?
A: Yes. The 1769-IQ32T uses a removable 40-pin terminal block. In a like-for-like replacement, unplug the terminal block from the failed module and insert it into the replacement unit. No individual wire re-termination is required, minimizing downtime to under 15 minutes in most cases.

Q: Is the 1769-IQ32T compatible with my existing Studio 5000 / RSLogix 5000 project?
A: Yes. The module’s electronic keying and I/O data map are identical across all 1769-IQ32T revisions. Simply power down the rack, swap the module, restore power, and the controller will recognize the replacement module automatically without requiring a program download in most configurations.

Q: Can the 1769-IQ32T be used as a migration target from SLC 500 or PLC-5 discrete input cards?
A: Yes, with a controller platform change. The 1769-IQ32T operates exclusively within the CompactLogix 1769 ecosystem. Migration from SLC 500 or PLC-5 requires replacing the controller with a 1769-Lxx CompactLogix unit and converting the program using Rockwell’s migration tools. Field wiring to 24VDC NPN sensors is typically reusable.

Q: What communication protocols does the 1769-IQ32T support?
A: The module communicates via the 1769 side-bus to the CompactLogix controller, which in turn supports EtherNet/IP, DeviceNet (via adapter), and ControlNet. There is no direct fieldbus port on the module itself — all network communication is managed at the controller level.

Q: Will the 1769-IQ32T fit in my existing 1769 expansion rack without physical modification?
A: Yes. The module occupies one standard 1769 slot and is mechanically compatible with all 1769 expansion racks and end caps (1769-ECR / 1769-ECL). No cabinet modifications are required for a direct slot replacement.

Q: How do I handle the transition from RSLogix 500 logic to Studio 5000 during migration?
A: Rockwell Automation provides migration utilities within Studio 5000 to import SLC 500 programs. Discrete input tags from the 1769-IQ32T map to standard BOOL arrays, and most ladder rung logic translates directly. A functional test of all I/O points is recommended before returning the system to production.

Warranty Assurance

Every Allen-Bradley 1769-IQ32T unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, input channel continuity checks, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We maintain buffer stock of high-demand CompactLogix modules specifically to support rapid warranty replacements without extended lead times.

For procurement teams managing critical infrastructure, we can provide test reports, lot traceability documentation, and certificate of conformance upon request. Bulk orders and blanket purchase agreements are supported with agreed lead times and reserved inventory allocation.

We ship from Xiamen, China via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard lead time for in-stock units is 1–3 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.
