Allen-Bradley 1771-IR Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1771-IR Original Industrial Spare PLC-5 Compatible: Ensuring System Stability in Critical Manufacturing Environments

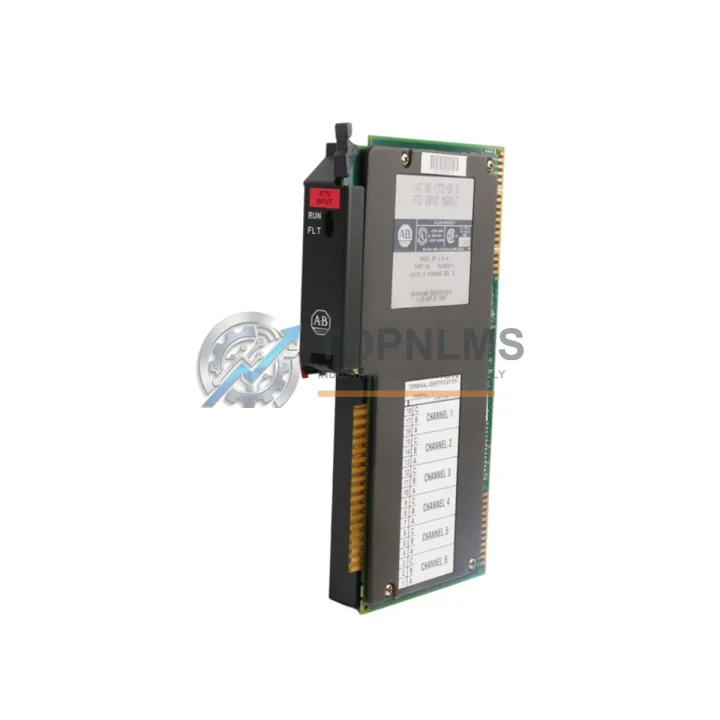

The Allen-Bradley 1771-IR is a 6-channel RTD (Resistance Temperature Detector) input module designed for the PLC-5 programmable controller platform. As a genuine original spare part, the 1771-IR plays an indispensable role in temperature monitoring loops across process industries including petrochemical, food and beverage, pharmaceutical, and heavy manufacturing. When a temperature input channel fails or drifts out of calibration tolerance, the consequences extend far beyond a single sensor — they can trigger cascading alarms, force unplanned shutdowns, and compromise product quality. Maintaining a verified, tested 1771-IR in your spare parts inventory is one of the most cost-effective decisions a maintenance team can make.

This module accepts inputs from Pt100, Pt1000, Ni120, and other standard RTD sensor types, converting analog resistance signals into digital engineering-unit values that the PLC-5 processor uses for closed-loop temperature control. Its 6-channel architecture allows a single module slot to monitor multiple zones simultaneously, reducing rack space consumption and simplifying wiring in dense control cabinets. The 1771-IR communicates over the 1771 I/O chassis backplane, making it a direct drop-in replacement for any existing 1771-IR installation without requiring software reconfiguration when the module is swapped under identical firmware conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for PLC-5-based control systems must look beyond individual modules in isolation. When scheduling a planned shutdown to inspect or replace a 1771-IR RTD input module, experienced maintenance engineers use the opportunity to audit the entire 1771 I/O chassis and associated field wiring. RTD signal degradation is frequently caused not by the module itself but by corroded terminal connections, damaged shielded cables, or ground loops introduced by aging field wiring — all of which should be inspected concurrently.

During the same maintenance window, it is advisable to verify the condition of the 1771-OFE analog output module serving the same temperature control loop, since a faulty output module can mask what appears to be an RTD input fault. The 1771-ASB remote I/O adapter should also be checked for firmware version compatibility and backplane seating integrity, as loose adapter connections are a common source of intermittent channel faults that are misdiagnosed as module failures.

Power quality is another critical factor. The 1771-P4S or 1771-P7 power supply feeding the I/O chassis should be load-tested during the inspection interval — an aging power supply delivering marginal 5 VDC backplane voltage will cause erratic readings across all analog input modules, including the 1771-IR. For facilities running mixed PLC-5 and ControlLogix architectures, the 1756-DHRIO Data Highway Plus / Remote I/O communication module bridges legacy 1771 I/O racks to the newer ControlLogix backplane. Verifying its configuration and cable termination resistors (typically 82 Ω on DH+ networks) during the same maintenance visit prevents communication timeouts that can appear as module faults in the HMI alarm log.

Field wiring integrity checks should include the 1492-AIFM analog interface module or equivalent terminal block assemblies used to land RTD sensor wires. Loose or oxidized screw terminals on these blocks introduce resistance errors that directly corrupt RTD measurements. Replacing worn terminal blocks proactively — alongside the 1771-IR module — eliminates the most common sources of recurring temperature loop faults. If the control system includes a PanelView 550 or PanelView 600 HMI displaying temperature trends from the 1771-IR channels, verify that the HMI communication cable and DH+ node address settings remain consistent after the module swap. An HMI that loses its temperature display after a module replacement is almost always a node address or cable termination issue, not a module defect. Additionally, inspect the 1771-IFE thermocouple/millivolt input module installed in adjacent slots — cross-channel interference from a failing IFE module can produce anomalous readings on the 1771-IR channels in the same chassis.

Strategic Replacement Solutions

The Allen-Bradley 1771-IR has been in service in industrial facilities for decades, and many plants continue to rely on PLC-5 platforms because the cost and risk of a full control system migration outweigh the benefits in stable, low-throughput processes. For these facilities, sourcing a verified original 1771-IR spare is the most pragmatic path to restoring temperature monitoring capability without touching validated software or retraining operators.

Unlike counterfeit or refurbished modules of unknown provenance, the 1771-IR units available through TOPNLMS are sourced from verified supply channels, individually tested for backplane communication integrity and channel accuracy prior to shipment, and covered by a 12-month warranty. Each unit ships with basic functional test documentation, giving your maintenance team confidence before the module is installed in a live production environment.

For facilities planning a phased migration from PLC-5 to ControlLogix, the 1771-IR can continue to serve in its existing chassis while the migration is staged over multiple planned outages. This approach — sometimes called a chassis-in-chassis migration using the 1756-DHRIO and 1771-ACN15 ControlNet adapter — allows the 1771-IR to remain in service and report temperature data to the new ControlLogix processor without any field wiring changes, protecting the capital investment in existing RTD sensors and conduit runs. Maintaining one or two 1771-IR spares on the shelf eliminates the lead time risk associated with sourcing legacy modules during an unplanned outage. In high-availability processes where a single temperature loop failure can trigger a full line shutdown, the cost of a spare module is trivial compared to the cost of even one hour of unplanned downtime.

Support FAQ

Q1: Is the 1771-IR compatible with all PLC-5 processor variants?
Yes. The 1771-IR is compatible with all members of the PLC-5 family that use the 1771 I/O chassis, including the PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80. No hardware modification is required. Slot addressing is configured via the module’s backplane switches and must match the existing I/O configuration file in the PLC-5 processor to avoid a major fault on power-up.

Q2: What pre-shipment testing is performed on each 1771-IR unit?
Each 1771-IR unit undergoes backplane communication verification and per-channel signal integrity testing before shipment. Units that fail any test parameter are not shipped. Basic test results are included with the shipment. All units are covered by a 12-month warranty from the date of invoice.

Q3: How should I verify compatibility before installing a replacement 1771-IR?
Confirm that the existing I/O configuration file in your PLC-5 processor lists the slot as a 1771-IR module type. Check the backplane switch settings on the replacement module against the original (or the configuration documentation) before powering the chassis. If the original module is still partially functional, record its switch positions before removal. After installation, force a minor fault recovery and verify that all 6 channels report expected values within calibration tolerance.

Q4: What is the recommended spare parts stocking strategy for PLC-5 RTD input modules?
For facilities with 3 or more 1771-IR modules installed, maintaining a minimum of 1 spare unit on-site is recommended. For critical processes where temperature monitoring is safety-related or directly tied to product quality, a 2-unit buffer is advisable. Given the age of the PLC-5 platform and the declining availability of new-old-stock modules in the broader market, procuring spares proactively — rather than reactively after a failure — significantly reduces the risk of extended lead times during an unplanned outage.
