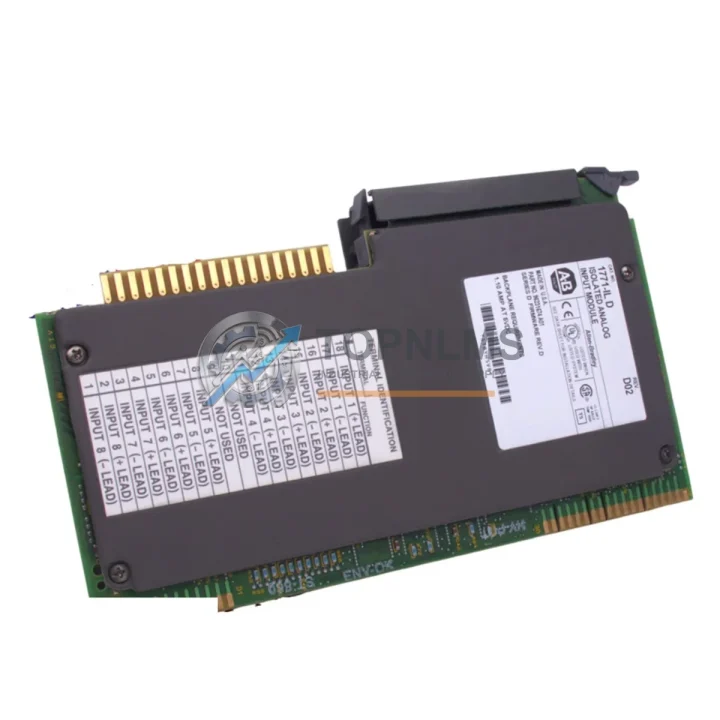

Allen-Bradley 1771-IL Ruggedized Analog Input Module for Harsh Environments

Product Overview

Allen-Bradley 1771-IL Ruggedized Analog Input Module for Harsh Environments

The Allen-Bradley 1771-IL is a 4-channel analog input module engineered for the PLC-5 programmable controller platform — one of Rockwell Automation’s most enduring and widely deployed control architectures in heavy industry. Designed to operate reliably under demanding electrical and environmental conditions, the 1771-IL delivers stable, high-resolution analog signal acquisition in applications where signal integrity and continuous uptime are non-negotiable.

In industrial environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and pervasive electromagnetic interference, standard-grade I/O modules frequently fail prematurely or produce erratic readings that compromise process control. The 1771-IL addresses these challenges through its ruggedized hardware design, conformally coated PCB, and robust backplane interface — making it a trusted choice for engineers managing critical infrastructure in oil and gas, mining, power generation, water treatment, metallurgy, and continuous manufacturing.

Each 1771-IL module accepts up to four analog input channels, converting field-level current or voltage signals into digital values that the PLC-5 processor can act upon in real time. This capability is fundamental to closed-loop control strategies, where precise measurement of process variables — temperature, pressure, flow, level — directly governs actuator commands and safety interlocks. When paired with the Allen-Bradley 1771-OFE analog output module, the 1771-IL forms a complete analog I/O subsystem capable of supporting PID control loops, ratio control, and cascade strategies across the full range of PLC-5 rack configurations.

Within a 1771 I/O chassis, the 1771-IL coexists seamlessly with discrete I/O modules such as the 1771-IB and 1771-OB series, as well as specialty modules including the 1771-ASB remote I/O adapter and the 1771-SDN DeviceNet scanner. This architectural flexibility allows plant engineers to build mixed I/O racks that address both analog measurement and digital control requirements within a single backplane, reducing cabinet footprint and simplifying wiring infrastructure.

The PLC-5 processor family — including the 5/10, 5/15, 5/20, 5/25, 5/40, and 5/80 variants — communicates with the 1771-IL via the 1771 backplane protocol, ensuring deterministic scan-cycle performance even under heavy I/O loading. For installations requiring distributed I/O over longer distances, the 1771-IL can be deployed in remote racks connected to the main chassis via the 1771-ASB adapter and Remote I/O (RIO) link, maintaining signal fidelity across hundreds of meters of plant floor cabling.

In power generation and substation automation, the 1771-IL is frequently used to monitor generator output parameters, transformer temperatures, and bus voltage levels — data streams that feed directly into protection relay logic and load-shedding algorithms. Its immunity to conducted and radiated EMI, consistent with the electrical noise environment of high-voltage switchgear rooms, ensures that analog readings remain accurate even when large motors start and stop nearby.

In oil and gas upstream and midstream facilities, the 1771-IL supports wellhead pressure monitoring, separator level control, and pipeline flow measurement. Its ability to operate across a wide ambient temperature range makes it suitable for both climate-controlled control rooms and field-mounted enclosures exposed to direct sunlight or sub-zero conditions. When integrated with a Rockwell Automation 1785-L80B PLC-5 processor and a 1771-WB power supply, the complete control node delivers the processing capacity and I/O density required for complex multi-loop regulatory control.

For water and wastewater treatment facilities, the 1771-IL monitors influent flow, chemical dosing rates, dissolved oxygen levels, and effluent quality parameters. These measurements are critical to regulatory compliance and process optimization. The module’s reliable analog acquisition, combined with the PLC-5’s ladder logic and function block programming capabilities, enables operators to maintain tight process control with minimal manual intervention.

In metallurgical and steel-making applications, the 1771-IL withstands the intense electromagnetic interference generated by arc furnaces, induction heaters, and large variable-frequency drives such as the Allen-Bradley PowerFlex 700 and PowerFlex 755 series. Its shielded backplane connection and differential input architecture reject common-mode noise, preserving the accuracy of temperature and pressure measurements that govern furnace control and rolling mill operations.

TOPNLMS maintains verified stock of the 1771-IL, sourced through established industrial supply channels. Every unit undergoes functional verification prior to shipment, including backplane communication testing and analog channel accuracy checks. Modules are shipped in anti-static packaging with full documentation, and each unit is covered by a 12-month warranty against manufacturing defects and functional failure. Our technical team provides pre-sales compatibility consultation and post-sales integration support to ensure seamless deployment in your existing PLC-5 architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-IL does not operate in isolation — it is one component within a layered control and protection architecture. In a typical PLC-5 control cabinet, the module shares a 1771 I/O chassis with the 1771-WB power supply module, which provides regulated backplane power to all installed I/O cards. Upstream of the chassis, a Rockwell Automation 1606-XLP industrial power supply or equivalent DIN-rail unit conditions incoming AC power, protecting the entire rack from voltage sags, surges, and transients common in heavy industrial environments.

For applications requiring safety-rated control, the 1771-IL analog measurements can feed into safety logic executed by a dedicated safety controller or a GuardLogix processor, with hardwired safety relays — such as the Allen-Bradley MSR127RP — providing final element protection for emergency stop and machine guarding circuits. Communication between the PLC-5 host and remote I/O nodes is managed by the 1771-ASB remote I/O adapter, which extends the 1771 backplane over shielded twisted-pair cabling to satellite racks located throughout the plant.

In installations where the PLC-5 system interfaces with variable-speed drives, the Allen-Bradley PowerFlex 700 VFD receives speed reference signals derived from analog outputs generated in response to 1771-IL measurements, closing the loop between field sensor data and motor control. For process networks requiring HART or Profibus PA field device integration, a dedicated HART multiplexer or Profibus DP/PA coupler bridges the analog 4–20 mA signals from smart transmitters into the 1771-IL input channels, enabling asset management data to coexist with process control data on the same physical wiring.

Terminal modules and marshalling panels — including Phoenix Contact or Weidmüller DIN-rail terminal blocks — provide the field wiring interface between instrument cables and the 1771-IL’s front connector, ensuring organized, labeled, and maintainable wiring that simplifies troubleshooting and future modifications. Surge protection devices installed at the terminal strip protect the 1771-IL input circuits from lightning-induced transients and ground potential differences in large plant installations.

Application in Critical Infrastructure

In oil and gas production facilities, the 1771-IL is deployed in wellhead control panels and separator skid PLCs, where it monitors pressure transmitter outputs, level sensor signals, and flow meter analog outputs. The module’s reliable signal acquisition supports the regulatory control and emergency shutdown logic that protects personnel and equipment from overpressure and overflow events. Its wide operating temperature range accommodates both air-conditioned control rooms and outdoor field enclosures in desert or arctic climates.

In coal-fired and gas-fired power generation plants, the 1771-IL monitors boiler drum level, steam pressure, and turbine inlet temperature — parameters that feed directly into combustion control and turbine protection systems. Accurate analog measurement is essential to maintaining boiler efficiency within regulatory limits and preventing thermal stress damage to pressure vessels. The module’s EMI immunity ensures stable readings even in the presence of high-voltage bus bars and large transformer installations.

In mining and mineral processing operations, the 1771-IL supports conveyor belt load monitoring, crusher feed rate control, and flotation cell level regulation. These applications subject control hardware to continuous mechanical vibration from crushers and mills, as well as airborne silica and coal dust that can infiltrate enclosures. The 1771-IL’s conformal coating and robust backplane connection maintain reliable operation in these conditions, reducing unplanned downtime and the associated production losses.

In municipal water and wastewater treatment plants, the 1771-IL monitors influent flow, chemical feed pump rates, and effluent turbidity — measurements that determine compliance with environmental discharge permits. The module’s long-term measurement stability reduces calibration frequency and supports the continuous, unattended operation that modern water utilities require. Its compatibility with the broader PLC-5 ecosystem simplifies integration with existing SCADA systems and historian databases.

In steel mills and aluminum smelters, the 1771-IL operates in the extreme electromagnetic environment generated by arc furnaces and induction heating systems. Its differential input architecture and shielded backplane interface reject the common-mode noise induced by high-current bus systems, ensuring that temperature and pressure measurements remain accurate throughout the heat cycle. This accuracy is critical to metallurgical quality control and energy efficiency optimization.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1771-IL shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. The warranty covers functional failure attributable to manufacturing defects or component degradation under normal operating conditions. If a module fails within the warranty period, TOPNLMS will provide a replacement unit or full refund following return and inspection. Warranty claims are processed within 5 business days of receipt of the returned module.

Q2: How is each module tested before shipment?
All 1771-IL modules undergo a pre-shipment functional verification protocol that includes backplane communication testing, analog channel accuracy verification across the full 4–20 mA input range, and visual inspection for physical damage, corrosion, or component anomalies. Modules that do not meet specification are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1771-IL compatible with all PLC-5 processor variants and 1771 chassis sizes?
Yes. The 1771-IL is compatible with all members of the Allen-Bradley PLC-5 processor family, including the 5/10, 5/15, 5/20, 5/25, 5/40, and 5/80, across all standard 1771 I/O chassis sizes (4-slot, 8-slot, 12-slot, and 16-slot). It occupies a single I/O slot and does not require a dedicated power supply beyond the standard 1771-WB or equivalent backplane power module. Compatibility with specific chassis revisions can be confirmed by our technical team prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1771-IL?
Yes. TOPNLMS maintains ongoing stock of the 1771-IL and related 1771-series I/O modules to support both emergency replacement and planned maintenance procurement programs. We offer volume pricing for multi-unit orders and can establish blanket purchase agreements for customers with recurring demand. Our supply chain team actively monitors market availability to ensure continuity of supply for legacy PLC-5 components that are no longer in active production by Rockwell Automation.
