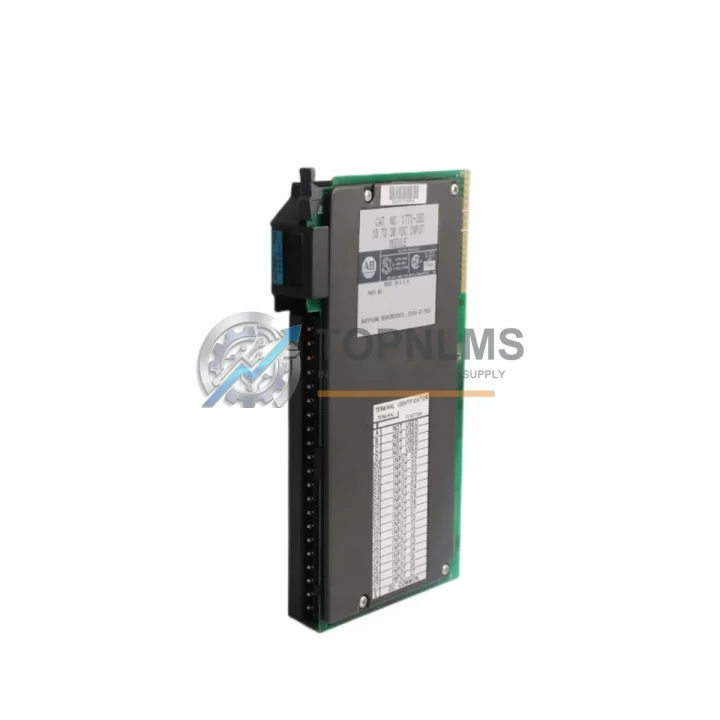

Allen-Bradley 1771-IBD Ruggedized DC Input Module

Product Overview

Allen-Bradley 1771-IBD Ruggedized DC Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1771-IBD is a 16-point DC digital input module engineered for the PLC-5 programmable controller platform and the 1771 I/O chassis architecture. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the 1771-IBD delivers consistent signal integrity where lesser components fail. Its robust construction and proven field performance make it a cornerstone spare part for any facility running Allen-Bradley PLC-5 control systems.

In continuous production environments such as petrochemical refineries, steel mills, water treatment plants, and power generation facilities, unplanned downtime caused by a failed I/O module can cost tens of thousands of dollars per hour. The 1771-IBD addresses this risk directly: its solid-state DC input circuitry provides high noise immunity against electromagnetic interference (EMI) and radio-frequency interference (RFI) generated by variable frequency drives, large motor starters, and high-current bus systems operating in the same control cabinet. Whether installed in a 1771-A1B, 1771-A2B, 1771-A3B, or 1771-A4B I/O chassis, the module slots in without modification and communicates seamlessly with the PLC-5 processor over the 1771 backplane.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-IBD does not operate in isolation — it is one critical node in a broader control architecture that must function as a unified, fault-tolerant system. In a typical PLC-5 control cabinet, the module works in concert with the Allen-Bradley 1771-OBD 16-point DC output module, which drives field actuators, solenoids, and indicator lamps based on the logic processed by the PLC-5 processor. Together, these two modules form the fundamental digital I/O pair for discrete control loops.

For analog process variables — temperature, pressure, flow, and level — the 1771-IFE analog input module and 1771-OFE analog output module complement the 1771-IBD within the same chassis, enabling mixed discrete and analog control from a single rack. Power to the entire 1771 I/O chassis is supplied through the 1771-P4S or 1771-P7 power supply, which must be correctly sized to support the full complement of installed modules including the 1771-IBD.

Communication between the PLC-5 processor and remote I/O racks — common in large-footprint facilities where field devices are distributed across multiple control zones — relies on the 1771-ASB remote I/O adapter module. This adapter bridges the 1771 backplane to the Allen-Bradley Remote I/O (RIO) network, allowing the 1771-IBD installed in a remote rack to report field input states back to the main processor with deterministic scan-cycle timing. In facilities that have migrated portions of their network to ControlNet or EtherNet/IP, the 1756-CNB ControlNet bridge or 1756-ENBT EtherNet/IP bridge modules in a ControlLogix chassis can serve as gateway devices, preserving the operational life of legacy 1771-series I/O assets.

Safety-critical applications — such as emergency shutdown (ESD) systems in oil and gas, or safety-rated interlocks in chemical processing — may pair the 1771-IBD with dedicated safety relay modules such as the Allen-Bradley 440R series safety relays, which provide SIL-rated monitoring of field safety devices before passing hardwired signals into the PLC-5 input circuit. Terminal blocks and wiring accessories from the Allen-Bradley 1492 series interface wiring system provide a clean, maintainable field-wiring solution that reduces installation errors and simplifies future module replacement.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1771-IBD monitors discrete field signals from wellhead sensors, pipeline valve position switches, pressure switches, and flow switches. Its optical isolation and high noise immunity are essential in environments where long cable runs from remote field instruments introduce significant common-mode noise. Offshore platforms and onshore compressor stations operating in Class I, Division 2 hazardous locations rely on properly installed 1771-IBD modules — paired with appropriate Zener barriers or galvanic isolators — to maintain intrinsic safety compliance while delivering reliable digital input data to the PLC-5 control system.

In mining and mineral processing, where conveyor systems, crushers, ball mills, and flotation cells generate intense mechanical vibration and airborne conductive dust, the 1771-IBD’s robust construction and sealed connector interface maintain signal integrity across multi-year service intervals. Replacement of a failed input module during a scheduled maintenance window — rather than during an unplanned breakdown — is a standard practice at well-managed mining operations, making reliable spare parts availability a direct operational priority.

In power generation and electrical utilities, including coal-fired, gas turbine, hydroelectric, and nuclear auxiliary systems, PLC-5 platforms with 1771-series I/O continue to serve in balance-of-plant control roles. The 1771-IBD monitors breaker status, valve position, pump run/stop feedback, and alarm inputs with the deterministic scan performance that safety-conscious utility operators require. Long-term spare parts availability — a key concern for facilities with 20+ year asset lifecycles — is directly addressed by TOPNLMS’s maintained inventory of 1771-IBD modules.

In water and wastewater treatment, the 1771-IBD operates in high-humidity pump stations and chemical dosing facilities, monitoring level switches, flow switches, and motor run-feedback contacts. Its 5–95% non-condensing humidity rating and optical isolation make it well-suited to the wet, chemically aggressive atmosphere of these facilities. Municipal utilities and industrial water treatment operators managing aging PLC-5 infrastructure depend on sourcing verified replacement modules to avoid costly platform migrations before the end of the asset’s economic life.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, contact TOPNLMS at [email protected] with your order number and a description of the fault. We will arrange replacement or repair at no additional cost, including return shipping coordination for international orders.

Q2: How is each 1771-IBD module tested before shipment?
Every 1771-IBD unit undergoes functional verification prior to dispatch. Testing includes point-by-point input channel continuity checks, optical isolation integrity verification, and backplane connector inspection. Modules that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1771-IBD compatible with all PLC-5 processor variants and 1771 chassis sizes?
Yes. The 1771-IBD is compatible with all members of the Allen-Bradley PLC-5 processor family — including the PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 — when installed in any standard 1771 I/O chassis (1771-A1B through 1771-A4B). No firmware or hardware modification is required. Always verify the chassis keying configuration matches the module’s voltage group before installation.

Q4: Can TOPNLMS support long-term or recurring supply of 1771-IBD modules for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of 1771-IBD modules and can support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. For facilities managing large PLC-5 installed bases, we recommend establishing a pre-qualified spare parts agreement to ensure module availability without lead-time risk. Contact our technical sales team to discuss volume pricing and supply continuity arrangements.
