Allen-Bradley 1769-IF4XOF2 Original Industrial Spare Compact I/O Compatible

Product Overview

Allen-Bradley 1769-IF4XOF2 Original Industrial Spare Compact I/O Compatible: Ensuring System Stability in Demanding Automation Environments

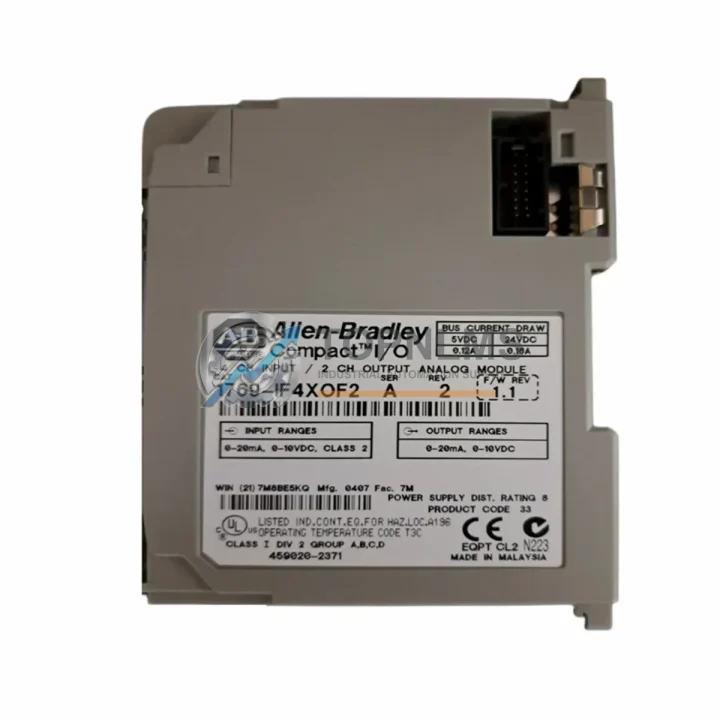

The Allen-Bradley 1769-IF4XOF2 is a combination analog input/output module designed for the Rockwell Automation Compact I/O (1769 Series) platform. With four configurable analog inputs and two analog outputs, this module serves as a critical interface between field instrumentation and the MicroLogix or CompactLogix controller in process control, machine automation, and discrete manufacturing applications. Sourced as an original spare, the 1769-IF4XOF2 is an essential component for maintenance teams responsible for sustaining aging or active 1769-series control systems — particularly where unplanned downtime carries significant operational and financial consequences.

In industrial facilities running continuous or semi-continuous processes, the analog I/O module is among the most failure-prone components due to its direct exposure to field signal noise, voltage transients, and thermal cycling. Maintaining a verified original spare of the 1769-IF4XOF2 in your parts inventory is a proven strategy for reducing mean time to repair (MTTR) and protecting production continuity. This listing provides a factory-tested, original Allen-Bradley 1769-IF4XOF2 module, shipped with full inspection documentation and backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your 1769 Compact I/O System

When a 1769-IF4XOF2 analog module is flagged during a scheduled inspection or begins exhibiting signal drift, erratic output, or channel faults, experienced maintenance engineers know that the root cause is rarely isolated to a single component. A thorough inspection of the surrounding 1769 Compact I/O bank is essential to prevent repeat failures and ensure the control system returns to full operational integrity.

Begin by verifying the health of the 1769-PA2 or 1769-PB2 power supply module feeding the Compact I/O bank. Insufficient or unstable bus power is a leading cause of analog module faults and signal inaccuracies. If the power supply shows signs of age or thermal stress, replacing it alongside the 1769-IF4XOF2 eliminates a common source of recurring issues.

Next, inspect the 1769-IQ16 or 1769-OB16 digital I/O modules sharing the same bus. While these modules operate independently, a bus communication fault or backplane connector issue can affect all modules in the bank simultaneously. Checking module status LEDs and running a diagnostic scan from the CompactLogix or MicroLogix controller will confirm whether the fault is isolated to the analog module or systemic.

The 1769-SDN DeviceNet Scanner module or 1769-ASCII module, if present in the same rack, should also be verified for firmware currency and communication integrity. Outdated firmware on communication modules can introduce latency or data corruption that manifests as analog signal anomalies — a frequently misdiagnosed fault pattern.

Field wiring connected to the 1769-IF4XOF2’s screw terminals deserves careful attention. Inspect the terminal block connectors and field wiring harnesses for corrosion, loose terminations, or insulation degradation. In high-vibration environments, terminal screws can back out over time, causing intermittent signal loss. Replacing worn terminal blocks during a planned outage is far less costly than an emergency shutdown.

For facilities managing multiple 1769 Compact I/O banks, consider maintaining a consolidated spare kit that includes the 1769-IF4XOF2, a 1769-OF2 analog output module, a 1769-IF8 8-channel analog input module, and at least one 1769-ECR or 1769-ECL end cap. End caps are frequently overlooked but are required for proper bus termination — a missing or damaged end cap will prevent the entire bank from communicating with the controller.

If your facility operates MicroLogix 1500 controllers, maintaining a spare 1764-LRP or 1764-LSP processor module alongside your analog I/O spares provides a complete recovery path for the most critical failure scenarios. Similarly, for CompactLogix-based systems, a spare 1769-L30ER or 1769-L33ER controller ensures that a processor failure does not extend downtime beyond the time required for module swap and program restore.

Finally, review your facility’s signal isolator and surge protection devices installed upstream of the 1769-IF4XOF2 inputs. Devices such as DIN-rail-mounted signal conditioners and transient voltage suppressors protect the analog module from field-side electrical disturbances. If these protective devices have not been inspected or replaced within the last three years, scheduling their replacement during the same maintenance window as the 1769-IF4XOF2 swap is a sound investment in long-term system reliability.

Strategic Replacement Solutions: Minimizing Downtime with Original Spares

The 1769-IF4XOF2 has been a cornerstone of Allen-Bradley’s Compact I/O platform for over two decades. Many facilities continue to operate 1769-series systems well beyond their original design life, driven by the high cost and complexity of full system migrations. For these environments, sourcing original spare modules — rather than attempting to retrofit newer platforms — is the most cost-effective and operationally safe strategy.

Original 1769-IF4XOF2 modules are direct drop-in replacements for failed units. No firmware changes, no RSLogix 5000 project modifications, and no re-commissioning of field instruments are required. The replacement module inherits the channel configuration stored in the controller’s I/O tree, allowing a trained technician to complete the swap and return the system to automatic mode within minutes of the replacement module being installed.

For facilities managing the transition from legacy MicroLogix 1500 systems to CompactLogix platforms, the 1769-IF4XOF2 is fully compatible with both controller families, providing a bridge that allows phased migration without disrupting ongoing production. This compatibility significantly reduces the risk and cost associated with control system modernization projects.

Procuring original spares through a verified industrial supplier — rather than relying on the spot market or unverified surplus channels — ensures that each module has been tested against factory specifications and is free from counterfeit components, which are a documented risk in the industrial automation spare parts market. Every 1769-IF4XOF2 shipped from TOPNLMS is inspected, function-tested, and accompanied by a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.
