Allen-Bradley 1762-OW16 Replacement for MicroLogix Series

Product Overview

Allen-Bradley 1762-OW16 Replacement for MicroLogix Series: Smooth Transition & Legacy System Compatibility

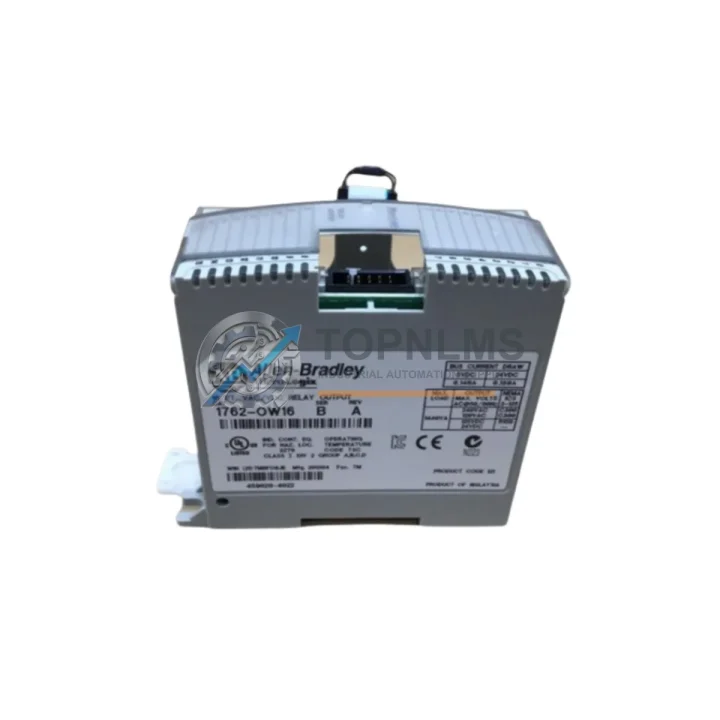

The Allen-Bradley 1762-OW16 is a 16-point relay output module designed for the MicroLogix 1100 and MicroLogix 1400 control platforms. For facilities running aging MicroLogix 1000 or MicroLogix 1200 systems — or those managing end-of-life Bulletin 1761 hardware — the 1762-OW16 represents a proven, field-validated upgrade path that preserves existing wiring infrastructure, minimizes panel re-engineering, and dramatically reduces unplanned downtime during the transition.

Whether your plant is retiring a legacy relay output card, replacing a failed discrete output module, or consolidating a mixed I/O rack into a standardized MicroLogix 1400 architecture, the 1762-OW16 slots directly into the 1762 expansion bus without requiring changes to your existing terminal block wiring or ladder logic output addressing — provided your program uses standard OTE (Output Energize) instructions mapped to the correct slot.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1762-OW16 rarely involves a single module swap. In practice, field engineers upgrading from a MicroLogix 1200 or decommissioning a 1761-L32BWA controller will typically source several companion components to complete the retrofit cleanly.

On the input side, the 1762-IQ16 16-point DC input module pairs directly with the 1762-OW16 on the same expansion rack, maintaining a balanced I/O architecture without introducing additional rack hardware. For applications requiring analog signal conditioning — common in legacy temperature or pressure control loops — the 1762-IF4 analog input module integrates seamlessly into the same 1762 bus, eliminating the need for external signal converters or isolators.

Power integrity is critical during any retrofit. The 1762-OW16 draws its logic power from the controller’s internal bus, but field devices connected to the relay outputs often require a dedicated 24 VDC supply. A 1606-XLP power supply or equivalent Allen-Bradley panel power supply is commonly specified alongside this module to ensure stable field-side voltage, particularly when replacing older systems that used separate transformer-based power panels.

Communication continuity is another key concern. If the legacy system communicated via RS-232 DF1 and the new MicroLogix 1400 controller is being configured for EtherNet/IP, the 1761-NET-ENI serial-to-Ethernet interface module provides a bridge during phased migration, allowing existing SCADA or HMI connections to remain operational while the network infrastructure is upgraded. For programming and firmware updates during commissioning, the 1761-CBL-PM02 programming cable remains the standard interface between the controller’s DH-485 port and a laptop running RSLogix 500 or Studio 5000 Logix Designer.

Panel space is frequently a constraint in retrofit projects. The compact form factor of the 1762-OW16 — consistent with the full 1762 expansion module family — allows it to fit within existing MicroLogix control cabinets without requiring new enclosures or DIN rail extensions. When the project does require additional I/O density, the 1762-OB16 transistor output module can be added to the same rack for high-speed switching applications, while the 1762-OW8 offers a reduced-point relay option for smaller output groups.

For applications involving motor starters, solenoid valves, or contactor coils — typical loads for relay output modules — the relay contacts on the 1762-OW16 are rated for inductive loads, reducing the need for external surge suppression components that were often required with older relay cards. This simplifies the terminal block layout and reduces wiring labor during the retrofit.

HMI continuity is also addressed: existing PanelView 600 or PanelView Plus 600 terminals communicating with the legacy MicroLogix controller via DH-485 will continue to operate without modification after the controller upgrade, as the MicroLogix 1400 maintains full backward compatibility with DH-485 network topologies.

Retrofit Guidance FAQ

Q: Can I reuse my existing terminal block wiring from the old relay output module?
A: In most cases, yes. The 1762-OW16 uses a removable screw terminal block with standard 0.5 mm² to 2.5 mm² wire capacity. If your legacy module used the same terminal pitch, the wiring harness can be transferred directly. Verify terminal numbering against the 1762-OW16 wiring diagram before energizing.

Q: Do I need to modify my RSLogix 500 program after swapping to the 1762-OW16?
A: If the replacement module occupies the same slot number in the 1762 expansion rack, the I/O addressing (e.g., O:3.0/0 through O:3.0/15) remains unchanged. No ladder logic modifications are required for a like-for-like slot replacement.

Q: Is the 1762-OW16 compatible with EtherNet/IP SCADA systems?
A: The module itself communicates via the 1762 expansion bus to the host MicroLogix controller. EtherNet/IP connectivity is provided by the MicroLogix 1400 controller’s onboard Ethernet port, not the I/O module directly. Existing EtherNet/IP SCADA tags mapped to output addresses will continue to function without modification.

Q: What is the physical installation space requirement?
A: The 1762-OW16 occupies one slot on the 1762 expansion bus. Its dimensions are consistent with all 1762-series expansion modules, making it a direct physical replacement within any existing MicroLogix 1100 or 1400 panel layout.

Q: Can this module replace a transistor output module in the same slot?
A: Electrically, relay and transistor outputs serve different load types. The 1762-OW16 relay outputs are suitable for AC and DC loads up to 265 V and 2 A resistive. If the legacy module was a transistor type (e.g., 1762-OB16), verify that your field devices are compatible with dry relay contacts before substituting.

Warranty Assurance

Every 1762-OW16 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including output contact continuity testing, bus interface validation, and visual inspection for physical integrity. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of confirmed fault diagnosis. Our after-sales team is reachable via email and phone for technical support, RMA processing, and commissioning guidance. We maintain buffer stock of high-demand MicroLogix I/O modules to support urgent replacement orders with minimal lead time.

For bulk procurement, OEM integrators, and system integrators managing multi-site retrofit programs, TOPNLMS offers volume pricing, consolidated shipping, and pre-shipment inspection reports on request. All units are shipped with original manufacturer packaging where available, and include a TOPNLMS inspection certificate.

Lead time for standard orders is 3–7 business days from Xiamen. Express international shipping options are available for critical downtime situations.
