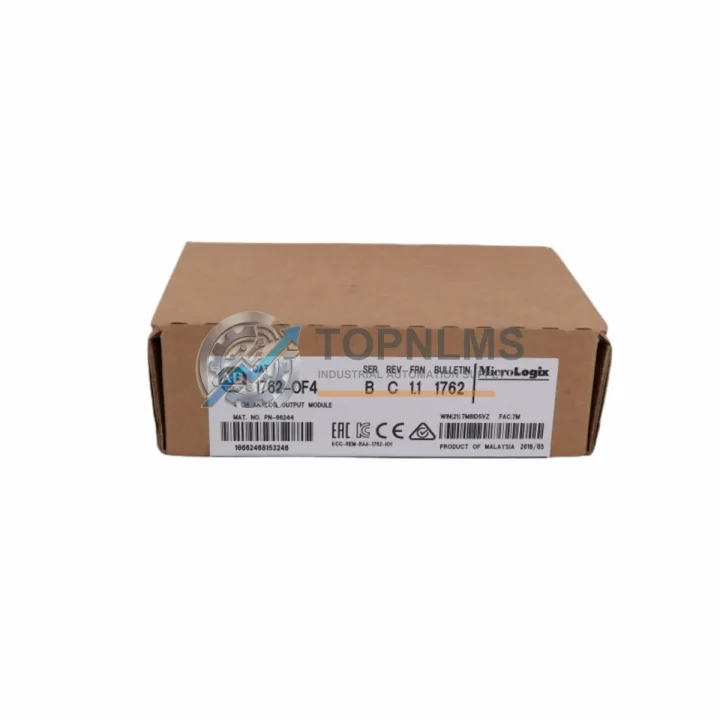

Allen-Bradley 1762-OF4 Replacement for MicroLogix 1100/1400

Product Overview

Allen-Bradley 1762-OF4 Replacement for MicroLogix 1100/1400: Seamless Analog Output Upgrade

The Allen-Bradley 1762-OF4 is a 4-channel analog output module designed for the MicroLogix 1100 and MicroLogix 1400 controller platforms. As legacy MicroLogix systems approach end-of-life or require expansion, sourcing a verified replacement or upgrade-compatible 1762-OF4 becomes a critical priority for maintenance engineers and procurement teams. TOPNLMS stocks tested, ready-to-ship 1762-OF4 modules to support your retrofit, spare-parts replenishment, or system modernization project — with a 12-month warranty and pre-shipment functional verification on every unit.

Whether you are replacing a failed module in an existing MicroLogix rack, expanding analog output capacity in a control cabinet, or migrating from an older 1761-series or SLC 500 analog output card, the 1762-OF4 provides a direct, plug-compatible solution within the MicroLogix 1762 I/O expansion bus. Its compact DIN-rail form factor and standard 20-pin connector make it straightforward to install alongside other 1762-series I/O modules such as the 1762-IQ8, 1762-OW8, 1762-IF4, and 1762-IR4 without requiring additional wiring adapters or panel modifications.

The 1762-OF4 supports both voltage (0–10 V DC) and current (4–20 mA) output modes, selectable per channel via software configuration in RSLogix 500 or Studio 5000 Logix Designer. This dual-mode flexibility is essential when interfacing with field devices such as variable frequency drives (VFDs), electro-pneumatic positioners, proportional control valves, or analog-input HMI panels. Existing ladder logic programs written for the MicroLogix 1100 or 1400 controller require no structural modification when swapping a like-for-like 1762-OF4 replacement — channel addressing, scaling blocks (SCL), and output image table mappings remain fully compatible.

For sites migrating from older SLC 500 analog output modules such as the 1746-NO4I or 1746-NO4V, the 1762-OF4 offers a cost-effective modernization path. While the physical rack and backplane differ between SLC 500 and MicroLogix 1762 platforms, the signal wiring to field devices — including shielded twisted-pair cables for 4–20 mA loops — can typically be reused with minor terminal block re-labeling. Engineers should verify loop power supply compatibility: the 1762-OF4 is externally powered and requires a dedicated 24 V DC supply, which can be shared with other 1762-series modules via the 1762-PA4 or 1762-PB4 power supply accessory already present in most MicroLogix control cabinets.

Communication between the MicroLogix controller and the 1762-OF4 is handled entirely over the 1762 expansion bus — no additional communication modules, DeviceNet nodes, or EtherNet/IP adapters are required. This simplifies the system architecture compared to distributed I/O solutions and reduces potential points of failure in the analog output path. For applications where the MicroLogix 1400 is connected to a supervisory SCADA system via the 1761-NET-ENI Ethernet interface or the 1761-NET-DNI DeviceNet interface, the 1762-OF4 analog outputs remain fully transparent to the network layer and require no additional configuration at the communication module level.

Installation is straightforward: mount the 1762-OF4 on the DIN rail adjacent to the MicroLogix controller or existing 1762 I/O stack, connect the 20-pin wiring harness, apply 24 V DC power, and perform a channel calibration check using RSLogix 500’s online monitoring mode. For sites with limited panel space, the 1762-OF4’s slim profile (approximately 40 mm wide) allows it to fit within standard 300 mm or 400 mm wide control enclosures alongside the MicroLogix 1400 controller, a 1762-IQ8 digital input module, a 1762-OW8 relay output module, and a 24 V DC power supply unit without requiring panel expansion.

Procurement teams evaluating the 1762-OF4 as a long-term spare or emergency replacement should note that TOPNLMS maintains buffer stock specifically for MicroLogix 1762-series I/O modules. Orders placed before 14:00 CST are typically processed and dispatched the same business day. International shipments to Southeast Asia, the Middle East, and Europe are supported via DHL Express and FedEx International Priority, with average transit times of 3–7 business days depending on destination customs clearance. A detailed packing list, commercial invoice, and certificate of conformance are included with every shipment to facilitate import clearance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MicroLogix analog output upgrade rarely involves a single module in isolation. When replacing or expanding the 1762-OF4 in an existing control system, engineers typically address the surrounding I/O and communication infrastructure at the same time to minimize future downtime. The 1762-IF4 analog input module is the natural companion to the 1762-OF4, providing 4-channel analog input (4–20 mA / 0–10 V DC) on the same 1762 expansion bus and sharing the same wiring harness standard — making it straightforward to replace both analog I/O modules during a single planned maintenance window.

Digital I/O expansion is commonly handled by the 1762-IQ8 (8-channel 24 V DC digital input) and 1762-OW8 (8-channel relay output) modules, which occupy adjacent slots in the MicroLogix rack. Replacing these alongside the 1762-OF4 during a system refresh ensures that all I/O modules are on the same firmware revision and reduces the risk of bus communication errors caused by mixed-revision expansion stacks. For temperature measurement loops that feed setpoints to the analog outputs, the 1762-IR4 RTD input module or 1762-IT4 thermocouple input module may also require replacement if the original units are showing drift or calibration errors.

On the controller side, the MicroLogix 1400 (1766-L32BWA or 1766-L32BXBA) is the most common host controller for the 1762-OF4 in current installations. Sites still running the older MicroLogix 1100 (1763-L16BWA) may consider upgrading the controller itself as part of the same project, since the 1762-OF4 is fully compatible with both platforms and the program can be migrated with minimal modification using RSLogix 500. For Ethernet connectivity, the 1761-NET-ENI module provides a cost-effective way to add EtherNet/IP communication to MicroLogix controllers that lack a built-in Ethernet port, enabling remote monitoring and program upload/download without requiring a dedicated programming cable on-site.

Power supply integrity is critical in any analog output application. The 1762-PA4 (120/240 V AC input) and 1762-PB4 (24 V DC input) power supply accessories provide regulated 24 V DC to the 1762 I/O expansion bus and should be inspected or replaced whenever the analog output module is serviced. Signal integrity on long 4–20 mA runs can be improved by adding DIN-rail-mounted signal isolators between the 1762-OF4 output terminals and field devices, particularly in environments with high electrical noise from VFDs or motor starters sharing the same control cabinet.

Retrofit Guidance FAQ

Q: Can I replace a failed 1762-OF4 without modifying my RSLogix 500 program?
A: Yes. The 1762-OF4 is a direct drop-in replacement. Channel addressing, output image table slots, and SCL scaling blocks remain identical. Simply power down the rack, swap the module, reconnect the 20-pin terminal block, and power up. No program download is required if the controller memory is intact.

Q: Is the field wiring from my old 1762-OF4 reusable?
A: Yes. The 20-pin removable terminal block connector is standardized across all 1762-OF4 revisions. Existing shielded twisted-pair wiring to VFDs, positioners, or control valves can be reconnected directly to the replacement module without re-termination, provided the wiring is in good condition.

Q: Can the 1762-OF4 replace a 1746-NO4I from an SLC 500 system?
A: Not as a direct backplane replacement — the SLC 500 uses the 1746 backplane, which is physically and electrically incompatible with the 1762 expansion bus. However, if you are migrating the entire control system from SLC 500 to MicroLogix 1400, the 1762-OF4 serves as the functional equivalent for analog output, and existing field wiring can typically be reused with minor terminal re-labeling.

Q: What communication protocols does the 1762-OF4 support?
A: The 1762-OF4 communicates exclusively over the 1762 local expansion bus and does not require or support any network protocol (EtherNet/IP, DeviceNet, Modbus) independently. Network communication is handled by the MicroLogix controller’s built-in ports or optional communication modules such as the 1761-NET-ENI.

Q: How much panel space does the 1762-OF4 require?
A: The module is approximately 40 mm wide and mounts on standard 35 mm DIN rail. A full MicroLogix 1400 system with controller, 1762-OF4, 1762-IF4, 1762-IQ8, and 1762-OW8 typically fits within a 300 mm wide DIN rail section, making it suitable for compact control cabinets.

Q: What is the output resolution and accuracy of the 1762-OF4?
A: The module provides 12-bit resolution (0–4095 counts) per channel. Accuracy is ±0.5% of full scale at 25°C. For critical process control loops, perform a channel calibration check using RSLogix 500 online monitoring after installation.

Warranty Assurance

Every 1762-OF4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification test that confirms analog output signal integrity on all four channels across both current (4–20 mA) and voltage (0–10 V DC) output modes. Modules that do not pass the pre-shipment test are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are asked to contact our technical support team at [email protected] with the order number and a brief description of the fault. Our standard response time for warranty inquiries is within 1 business day. Return shipping for confirmed warranty replacements is covered by TOPNLMS for orders within mainland China; international customers are responsible for return freight, with TOPNLMS covering the cost of the replacement unit and outbound shipping.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Bulk orders of 5 units or more qualify for priority processing and dedicated account support. Contact us at [email protected] or +86 18359293191 to discuss volume pricing, lead times, and consignment stock arrangements.
