Allen-Bradley 1762-OB8 Original Industrial Spare MicroLogix Compatible: Ensuring System Stability in Demanding Automation Environments

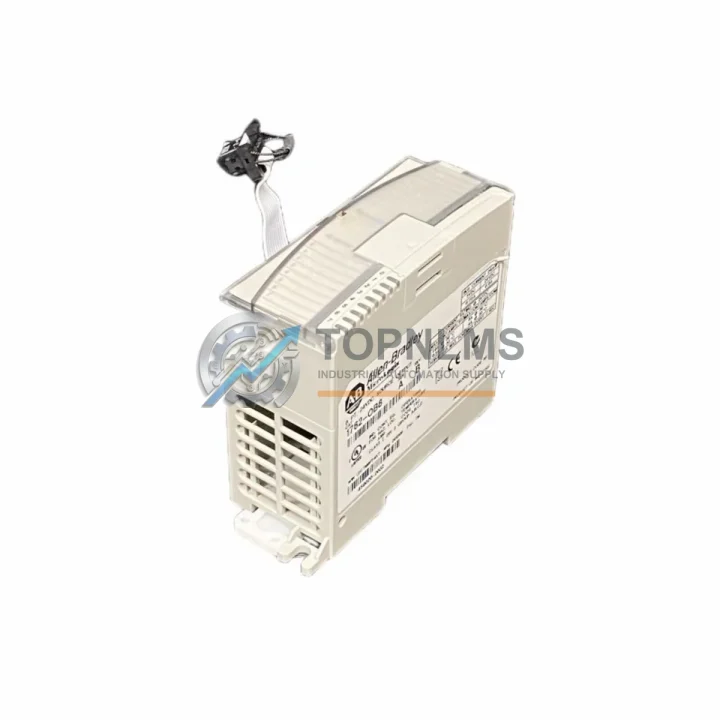

The Allen-Bradley 1762-OB8 is an 8-point 24VDC sourcing digital output expansion module designed for the MicroLogix 1100, 1200, 1400, and 1500 controller families. As a genuine original spare part, the 1762-OB8 plays a critical role in maintaining the operational continuity of discrete control systems across manufacturing, material handling, packaging, water treatment, and process automation facilities. When a DC output module fails or degrades, the consequences extend far beyond a single I/O point — entire machine sequences can halt, production lines stop, and unplanned downtime costs accumulate rapidly. Stocking a verified original 1762-OB8 is one of the most cost-effective decisions a maintenance team can make.

In modern industrial facilities, MicroLogix-based control panels remain widely deployed even as newer platforms emerge. The longevity of these systems means that sourcing reliable, specification-accurate spare parts is an ongoing operational requirement. The 1762-OB8 integrates directly into the MicroLogix expansion bus without requiring additional configuration tools, making field replacement straightforward and minimizing technician time on-site. Each unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch, and is covered by a 12-month warranty against manufacturing defects and operational failure.

Critical Technical Specs

Preventive Maintenance Strategy

A DC output module failure rarely occurs in isolation. In a MicroLogix control panel, the 1762-OB8 operates as part of an interconnected electrical architecture where the health of adjacent components directly influences module longevity and system reliability. A structured preventive maintenance approach should treat the 1762-OB8 as one node in a broader inspection cycle.

During scheduled downtime or annual panel inspections, maintenance engineers should simultaneously evaluate the 1762-IQ8 digital input module, which pairs with the OB8 in most discrete I/O configurations. If output points are showing intermittent behavior, the root cause may lie upstream in the 1762-IF4 analog input module or in the quality of the 24VDC field power supply feeding the output load circuits. A degraded or undersized power supply unit — such as a failing 24VDC rail supply — can cause output modules to operate outside their rated voltage window, accelerating wear on internal switching components.

Wiring integrity is another critical factor. The terminal blocks and field wiring connected to the 1762-OB8’s output points should be inspected for loose connections, oxidation, and insulation degradation. In high-vibration environments, terminal screws can back off over time, creating intermittent open circuits that are difficult to diagnose without a systematic inspection. Replacing aged terminal blocks and verifying torque specifications during each maintenance window prevents nuisance faults from escalating into module failures.

The 1762-OW8 relay output module is frequently installed in the same panel alongside the 1762-OB8 to handle higher-current or AC-load switching tasks. Both modules should be inspected together, as relay contact wear and DC output transistor degradation often follow similar timelines in systems with comparable duty cycles. Similarly, the 1762-OA8 AC output module, where present, should be included in the same inspection round.

Communication health is equally important. The MicroLogix controller’s 1761-NET-ENI Ethernet interface or 1761-NET-DNI DeviceNet interface should be checked for firmware currency and connection stability. A communication module fault can mask I/O errors or prevent remote diagnostics, delaying fault identification during a production incident. Alongside this, the 1762-OB16 16-point DC output module — often used in the same panel for higher-density output requirements — should be verified for consistent response times and output voltage levels.

For facilities running aging MicroLogix 1200 or 1400 systems, proactive stocking of the 1762-L24AWA or 1762-L40AWA base controller units as cold-standby spares is strongly recommended. Controller failures are less frequent than I/O module failures, but their impact on production is disproportionately severe. Pairing controller spares with a verified 1762-OB8 and a matched 1762-IQ16 input module creates a complete I/O replacement kit that can restore a failed panel to operation within a single shift.

Strategic Replacement Solutions

The 1762-OB8 is a direct drop-in replacement for any failed or end-of-life 8-point DC sourcing output module in the MicroLogix 1762 expansion family. No firmware changes, no re-wiring of the backplane connector, and no controller program modifications are required when replacing a like-for-like unit. This makes the 1762-OB8 one of the most operationally efficient spare parts to maintain in a MicroLogix-based facility.

For facilities transitioning from older MicroLogix 1000 or SLC 500 platforms, the 1762-OB8 represents a forward-compatible upgrade path. The MicroLogix 1100 and 1200 controllers accept the 1762 expansion bus natively, allowing maintenance teams to standardize on a single I/O module family across multiple controller generations. This reduces spare parts inventory complexity and simplifies technician training requirements.

When a 1762-OB8 fails in a production environment, the priority is minimizing mean time to repair (MTTR). Having a pre-tested, in-stock replacement unit eliminates the lead time risk associated with spot purchasing from distribution channels. TOPNLMS maintains ready stock of the 1762-OB8 with same-day or next-business-day dispatch capability, supported by pre-shipment functional testing and full documentation. Each unit is shipped with appropriate ESD protective packaging to prevent transit damage to sensitive output transistor circuits.

For facilities managing multiple MicroLogix panels across a plant floor, a consolidated spare parts strategy — covering the 1762-OB8 alongside matched input modules, power supplies, and communication adapters — delivers the lowest total cost of ownership and the fastest recovery time when unplanned failures occur.

Support FAQ

Q1: Is the 1762-OB8 supplied by TOPNLMS a genuine original Allen-Bradley unit?
Yes. All 1762-OB8 units supplied by TOPNLMS are original Allen-Bradley (Rockwell Automation) manufactured components. Each unit undergoes pre-shipment functional verification testing and is covered by a 12-month warranty against defects and operational failure from the date of delivery.

Q2: What is the compatibility scope of the 1762-OB8?
The 1762-OB8 is compatible with the MicroLogix 1100 (1763 series), MicroLogix 1200 (1762 series), MicroLogix 1400 (1766 series), and MicroLogix 1500 (1764 series) controller platforms. It connects via the standard MicroLogix expansion bus and requires no additional configuration beyond the controller’s I/O configuration table.

Q3: How should I validate a replacement 1762-OB8 before returning a panel to service?
After installation, verify that the module’s status LED illuminates green during controller power-up. Use RSLogix 500 or Studio 5000 Logix Designer to confirm that all 8 output points are recognized in the I/O configuration tree. Force individual output points in test mode and verify field-side voltage at each terminal with a calibrated multimeter before re-enabling automatic control sequences.

Q4: What is TOPNLMS’s shipping and warranty policy for the 1762-OB8?
