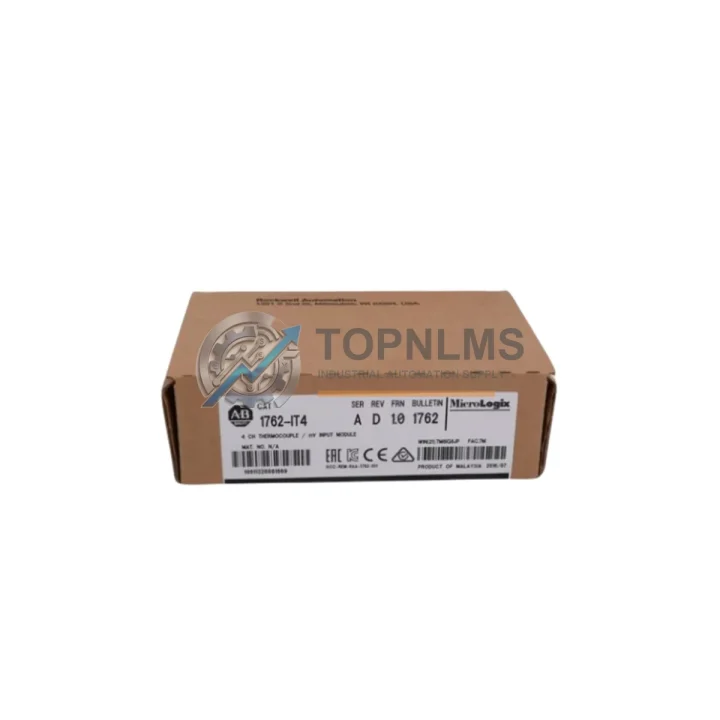

Allen-Bradley 1762-IT4 Original Industrial Spare MicroLogix Compatible

Product Overview

Allen-Bradley 1762-IT4 Original Industrial Spare MicroLogix Compatible: Sustaining System Stability in Demanding Environments

The Allen-Bradley 1762-IT4 is a 4-channel thermocouple and RTD analog input module engineered for the MicroLogix 1100 and MicroLogix 1400 control platforms. In process-critical environments — from food and beverage lines to chemical reactors, HVAC systems, and precision manufacturing cells — temperature measurement accuracy is non-negotiable. The 1762-IT4 delivers high-resolution analog input capability directly into the MicroLogix backplane, enabling real-time thermal monitoring without the need for external signal conditioning hardware. Sourcing an original replacement unit before failure occurs is one of the most cost-effective decisions a maintenance team can make.

At TOPNLMS, every 1762-IT4 unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain ready stock to support urgent maintenance windows, planned shutdowns, and long-term spare parts programs for facilities running legacy MicroLogix architectures.

Critical Technical Specs

Preventive Maintenance Strategy

A failed 1762-IT4 rarely fails in isolation — it is typically the first visible symptom of broader thermal management stress across the control cabinet. When scheduling a replacement or inspection of the 1762-IT4, experienced maintenance engineers use the opportunity to audit the surrounding system for wear and latent faults.

Begin with the 1762-IQ8 digital input module and 1762-OW8 relay output module mounted adjacent to the 1762-IT4 on the expansion bus. Vibration, heat cycling, and connector fatigue affect all expansion modules equally, and replacing the analog input module while leaving aging digital I/O in place is a common source of repeat callouts. While the cabinet is open, inspect the 1762-L24AWA or 1762-L40AWA MicroLogix 1200 controller (if present in a mixed-generation panel) for firmware currency and battery condition — the 1762-BA battery module should be replaced on a 3-year cycle regardless of the low-battery indicator status.

Thermocouple and RTD field wiring connected to the 1762-IT4 should be checked for insulation integrity, shield grounding continuity, and terminal torque. Loose connections at the 1762-IT4 terminal block are a leading cause of erratic temperature readings that are misdiagnosed as module failure. If the facility uses shielded twisted-pair thermocouple extension cable, verify that shield drain wires are grounded at one end only to prevent ground loops.

The 1762-OA8 AC output module and 1762-OB16 DC output module driving heaters, cooling fans, or control valves based on 1762-IT4 temperature data should be inspected for contact wear and output fuse condition. A degraded output module can mask a correctly functioning analog input by failing to execute the control action. Similarly, the 1762-IF4 4-channel analog input module — often installed alongside the 1762-IT4 for pressure or flow measurement — should be verified for calibration drift during the same maintenance window.

For panels with communication requirements, confirm that the 1761-NET-ENI Ethernet interface or 1761-NET-DNI DeviceNet interface connected to the MicroLogix controller is operating without CRC errors. Communication faults can prevent the PLC from uploading temperature data to the SCADA layer, creating blind spots in process monitoring even when the 1762-IT4 itself is functioning correctly. Finally, review the 24 VDC power supply (commonly a 1606-XLP or equivalent) feeding the expansion bus — voltage sag under load is a known cause of intermittent analog module faults that are difficult to reproduce during bench testing.

Strategic Replacement Solutions

The 1762-IT4 has been in production for over two decades and remains the standard analog temperature input solution for MicroLogix 1100 and 1400 systems. However, many facilities are now operating panels that were commissioned in the early 2000s, and original units may be approaching end-of-service life. Sourcing a verified original replacement — rather than an uncertified aftermarket substitute — is critical for maintaining measurement accuracy and preserving UL/CE panel certification.

For facilities planning a phased migration from MicroLogix to CompactLogix, the 1762-IT4 can continue to serve as the primary temperature input module during the transition period. Its data is accessible via RSLogix 500 and can be mapped to higher-level SCADA systems through the MicroLogix Ethernet port, providing continuity of process visibility without requiring an immediate full-system upgrade. This approach reduces capital expenditure while extending the productive life of existing control infrastructure by 5–10 years.

When a 1762-IT4 fails during production, the fastest path to recovery is a pre-tested, shelf-ready replacement unit. TOPNLMS maintains stock specifically to support 24–72 hour emergency dispatch requirements. Each unit is powered up, channel-tested against known thermocouple and RTD references, and shipped with a test report. Installation requires no special tools — the module clips onto the MicroLogix expansion bus and is recognized automatically by the controller on the next power cycle, with no firmware changes required.

Support FAQ

Q1: Is the 1762-IT4 compatible with both MicroLogix 1100 and MicroLogix 1400?
Yes. The 1762-IT4 is fully compatible with both the MicroLogix 1100 (catalog 1763-L16xxx) and MicroLogix 1400 (catalog 1766-L32xxx) via the standard 1762 expansion bus. It is not compatible with MicroLogix 1000 or MicroLogix 1200, which use different expansion architectures.

Q2: What pre-shipment testing does TOPNLMS perform on the 1762-IT4?
Every unit undergoes power-on functional testing with live thermocouple and RTD signal injection across all 4 channels. Output values are verified against calibrated reference sources. Units that fail any channel test are quarantined and not shipped. A test record is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect wiring, overvoltage, physical impact, or installation outside the module’s rated environmental specifications. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can I use the 1762-IT4 to replace an older revision of the same module?
Yes. All hardware revisions of the 1762-IT4 are backward-compatible at the firmware and backplane communication level. No RSLogix 500 program changes are required when swapping between revisions. If your existing program uses specific channel configuration words, verify that the configuration file (I/O tree) reflects the correct module type after replacement.
