Allen-Bradley 1756SC-IF8U Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756SC-IF8U Original Industrial Spare ControlLogix: Ensuring System Stability in Demanding Automation Environments

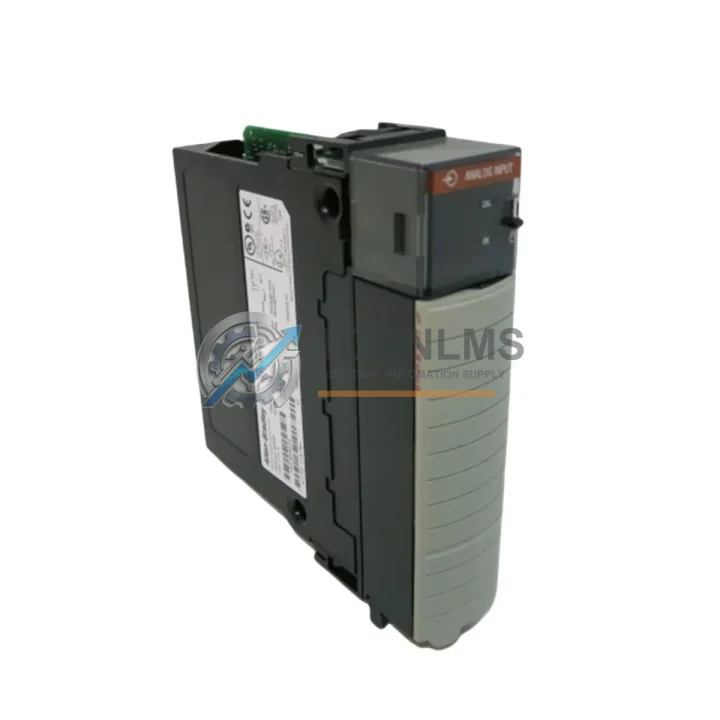

The Allen-Bradley 1756SC-IF8U is an 8-channel universal analog input module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. As a genuine original spare part, the 1756SC-IF8U plays a critical role in maintaining the signal integrity and process control accuracy that modern manufacturing, oil & gas, water treatment, and discrete manufacturing facilities depend on. Whether you are managing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, sourcing an authentic 1756SC-IF8U is a foundational step in protecting your production uptime.

In high-availability control environments, analog input modules are among the most failure-prone components due to continuous signal conditioning loads, thermal cycling, and exposure to electrical noise. A degraded or failed 1756SC-IF8U can cause erratic process readings, nuisance alarms, or complete loss of loop control — any of which can trigger costly production stoppages. Keeping a verified original replacement on the shelf eliminates the lead-time risk that comes with sourcing modules reactively during a breakdown.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for a ControlLogix-based control system extends well beyond replacing a single analog input module. When a 1756SC-IF8U is flagged for replacement during a scheduled outage or condition-based inspection, experienced maintenance engineers use the opportunity to audit the entire I/O chassis and associated field wiring. This approach minimizes the number of future unplanned interventions and maximizes the value of each maintenance window.

Begin by verifying the health of the 1756-PA75 or 1756-PB75 power supply module that feeds the chassis. A power supply operating near its rated load or showing voltage ripple will accelerate wear on all installed I/O modules, including the 1756SC-IF8U. Replacing a marginal power supply at the same time as the analog input module is a cost-effective decision that prevents a secondary failure within weeks of the initial repair.

Next, inspect the 1756-A7 or 1756-A13 chassis backplane for signs of corrosion, bent connector pins, or heat discoloration. A compromised backplane can cause intermittent communication faults that are difficult to diagnose and may be misattributed to the I/O module itself. While the chassis is partially depopulated for the module swap, this is the ideal time to reseat all adjacent modules, including any 1756-IF16 or 1756-OF8 analog output modules sharing the same rack, and to verify that their terminal block wiring is secure and correctly labeled.

Field wiring connected to the 1756SC-IF8U should be inspected at the 1492-AIFM8-F-3 analog interface module or equivalent terminal block assembly. Loose terminations, corroded ferrules, or damaged shielding on signal cables are common root causes of analog drift and noise. Replacing worn terminal blocks and re-terminating field cables during the same maintenance event eliminates a frequent source of recurring faults.

For systems using thermocouple or RTD inputs on the 1756SC-IF8U, verify the integrity of the 1756-IT6I2 or 1756-IR6I thermocouple/RTD input modules in adjacent slots if temperature measurement redundancy is part of the control strategy. Cross-check calibration references and confirm that cold-junction compensation is functioning correctly. If the facility uses signal isolators or signal conditioners between field sensors and the ControlLogix chassis, inspect these devices for drift or output saturation — a failing isolator will produce erroneous readings that appear to originate from the analog input module.

Communication infrastructure supporting the ControlLogix system should also be reviewed. The 1756-EN2T or 1756-EN3TR EtherNet/IP communication module is the primary network interface for most modern 1756 installations. Verify firmware revision, check for excessive CIP connection counts, and confirm that the module’s diagnostic LEDs show normal operation. Similarly, if the system uses 1756-DNB DeviceNet bridge modules or 1756-CN2 ControlNet modules for field device integration, inspect these for communication error counters that may indicate deteriorating network infrastructure.

Finally, review the 1756-L7x or 1756-L8x ControlLogix controller firmware version and battery status. An outdated firmware revision may contain known bugs affecting analog module scanning or data table management. A depleted controller battery risks loss of the user program and configuration data during a power interruption — a risk that is easily mitigated by replacing the battery on a scheduled basis, ideally during the same maintenance window as the 1756SC-IF8U replacement.

Strategic Replacement Solutions

The 1756SC-IF8U is a specialized analog input module within the ControlLogix 1756 ecosystem, and its availability as a genuine original spare part is essential for facilities that cannot accept the risk of counterfeit or refurbished components in safety-critical or process-critical control loops. Unlike third-party alternatives that may offer partial compatibility, an original 1756SC-IF8U guarantees full firmware compatibility with RSLogix 5000 and Studio 5000 Logix Designer, preserving all configured channel properties, scaling parameters, and alarm setpoints without requiring re-engineering.

For facilities managing aging ControlLogix installations, maintaining a minimum stock of one or two 1756SC-IF8U modules per control room significantly reduces mean time to repair (MTTR) during analog input failures. The module’s hot-swap capability means that replacement can be performed without powering down the chassis, minimizing process disruption and allowing the control system to remain in a safe, monitored state during the swap procedure.

When transitioning from older 1756-SC series configurations to current-generation ControlLogix hardware, the 1756SC-IF8U serves as a direct drop-in replacement that maintains backward compatibility with existing I/O tree configurations and HMI tag mappings. This eliminates the need for costly re-programming or re-commissioning work that would otherwise be required when substituting a non-equivalent module type. For multi-site operations, standardizing on the 1756SC-IF8U as the approved spare across all ControlLogix installations simplifies procurement, reduces inventory complexity, and ensures that maintenance technicians work with familiar hardware regardless of which facility they are supporting.

Support FAQ

Q1: What is the warranty coverage for the 1756SC-IF8U supplied by TOPNLMS?
All 1756SC-IF8U modules shipped by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify channel integrity, backplane communication, and signal conditioning performance. In the event of a warranty claim, TOPNLMS provides direct technical support and replacement coordination to minimize your downtime.

Q2: How do I verify compatibility between the 1756SC-IF8U and my existing ControlLogix chassis and controller firmware?
The 1756SC-IF8U is compatible with all standard ControlLogix 1756 chassis sizes and is supported by RSLogix 5000 v16 and later, as well as Studio 5000 Logix Designer. Before installation, confirm that your controller firmware revision supports the module’s electronic keying profile. If you are unsure, contact TOPNLMS with your controller catalog number and firmware version, and our technical team will confirm compatibility before shipment.

Q3: Can the 1756SC-IF8U be replaced while the ControlLogix system is running (hot-swap)?
Yes. The 1756SC-IF8U supports hot-swap replacement within a powered ControlLogix chassis. The controller will detect the module removal and re-insertion automatically. Depending on your keying configuration, the controller may inhibit the module until the replacement is confirmed. Always follow your site’s safety procedures and consult the module’s installation instructions before performing a live swap in a process-critical environment.

Q4: What is the recommended spare parts inventory strategy for the 1756SC-IF8U in a multi-line production facility?
For facilities with three or more ControlLogix systems using the 1756SC-IF8U, a minimum stock of two modules per site is recommended. For critical process lines where analog input failure would trigger an immediate production stop, consider maintaining one module per chassis as a dedicated cold spare. TOPNLMS offers volume pricing for multi-unit orders, making it cost-effective to build a strategic buffer inventory that protects against supply chain disruptions and extended lead times from the original manufacturer.
