Allen-Bradley 1756SC-IF8H Replacement for ControlLogix: Smooth Migration from Legacy Analog Input Systems

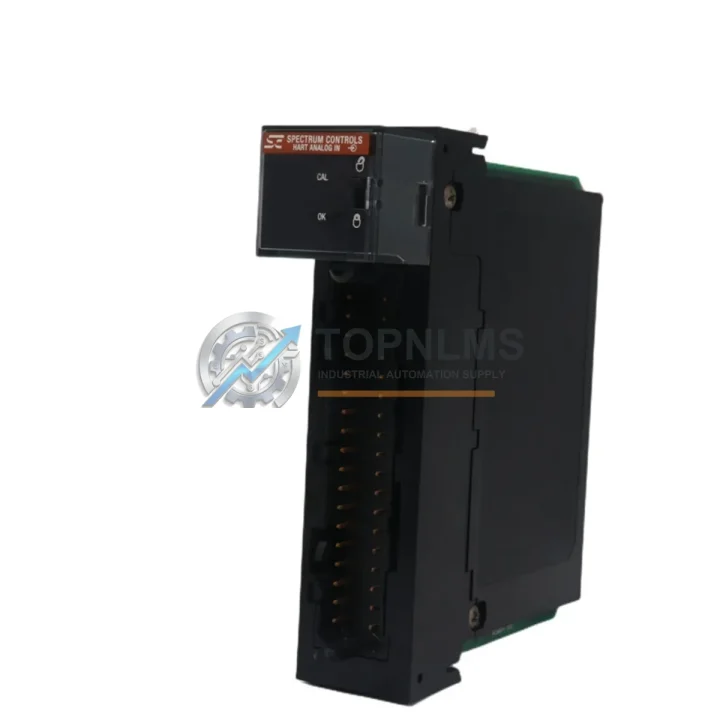

The Allen-Bradley 1756SC-IF8H is an 8-channel analog input module designed for the ControlLogix 1756 platform, engineered to deliver high-density signal acquisition in demanding industrial environments. For facilities operating aging DCS or PLC infrastructure — including legacy SLC 500, PLC-5, or early-generation ControlLogix racks — the 1756SC-IF8H represents a proven, field-validated upgrade path that preserves existing wiring infrastructure, minimizes programming rework, and reduces unplanned downtime during the transition.

Whether your plant is retiring a Rockwell Automation PLC-5/40 controller or migrating from a third-party DCS analog I/O subsystem, the 1756SC-IF8H slots directly into the 1756 chassis and integrates with the ControlLogix backplane without requiring additional signal conditioning hardware in most standard 4–20 mA and ±10 VDC loop configurations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1756SC-IF8H rarely involves a single module swap. In practice, field engineers upgrading from legacy SLC 500 or PLC-5 systems will typically need to address the broader control architecture simultaneously. The 1756SC-IF8H is most commonly deployed alongside the 1756-L73 ControlLogix controller or 1756-L74, which serve as the central processing unit in the upgraded rack. For EtherNet/IP network connectivity, the 1756-EN2T communication module provides the bridge between the ControlLogix backplane and the plant’s Ethernet infrastructure, replacing legacy DH+ or Remote I/O links.

Field wiring from existing transmitters and sensors typically connects via the 1756-TBCH or 1756-TBS6H removable terminal blocks, which allow the wiring harness to remain intact during module replacement — a critical advantage for minimizing loop downtime. In applications where signal isolation is required between field devices and the ControlLogix rack, a signal isolator or loop-powered isolator (such as those from the MTL or P+F series) can be inserted inline without modifying the 1756SC-IF8H configuration.

For plants migrating from a distributed I/O architecture, the 1756-DHRIO module may be retained temporarily to bridge legacy Remote I/O drops while the analog input migration is completed in phases. Power supply integrity is equally important: the 1756-PA75 or 1756-PB75 chassis power supply should be verified for adequate current budget when adding high-density analog modules. In multi-rack configurations, the 1756-RM2 redundancy module ensures controller failover without interrupting analog signal acquisition.

For operator interface upgrades running in parallel, the PanelView Plus 7 HMI communicates natively over EtherNet/IP with the ControlLogix platform, enabling real-time analog trend display without additional protocol conversion. Finally, where the legacy system used a 1771-IFE or 1771-IF4I analog input module in a PLC-5 rack, the 1756SC-IF8H provides a functionally equivalent replacement with significantly improved resolution and diagnostics.

Retrofit Guidance FAQ

Q: Can I reuse existing 4–20 mA field wiring when replacing a legacy analog input module with the 1756SC-IF8H?
A: Yes. In most cases, existing shielded twisted-pair wiring from transmitters can be reconnected directly to the 1756-TBCH removable terminal block. Verify loop power supply voltage and confirm that the transmitter’s output impedance is within the module’s input impedance specification (typically <250 Ω for current inputs).

Q: Do I need to rewrite my analog scaling logic in Studio 5000 when migrating from RSLogix 500?
A: Partial rework is required. The 1756SC-IF8H uses a different tag-based addressing structure compared to SLC 500 file-based addressing. However, the scaling parameters (EU Min/Max, Raw Min/Max) map directly, and most PID and analog alarm logic can be ported with minimal modification using the Import/Export function in Studio 5000.

Q: Is the 1756SC-IF8H compatible with HART-enabled field instruments?
A: The 1756SC-IF8H supports HART pass-through on its analog input channels, allowing HART-capable transmitters to communicate device diagnostics and configuration data via the existing 4–20 mA loop. A HART modem or the integrated HART capability in Studio 5000 is required to access HART data.

Q: What chassis slot width does the 1756SC-IF8H occupy?
A: The module occupies a single slot in any standard 1756 chassis (4, 7, 10, 13, or 17-slot). It is hot-swappable, meaning it can be inserted or removed while the chassis is powered, provided the controller is in Run mode and the application logic is designed to handle the module’s absence gracefully.

Q: How do I handle the communication protocol transition from DH+ to EtherNet/IP?
A: Install a 1756-DHRIO module in the same chassis to maintain DH+ connectivity to legacy devices during the transition period. Once all field devices have been migrated to EtherNet/IP, the DHRIO module can be removed. The 1756SC-IF8H itself communicates exclusively over the ControlLogix backplane and does not require a separate network connection.

Q: What is the physical installation clearance requirement for the 1756SC-IF8H?
A: The module requires standard 1756 chassis slot clearance. Ensure a minimum of 50 mm of free space above and below the chassis for adequate airflow. In high-density installations with multiple analog modules, verify that the chassis power supply’s current rating is not exceeded.

Warranty Assurance

Every 1756SC-IF8H unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including backplane communication check, channel-by-channel analog signal validation, and firmware version confirmation. Units are shipped in anti-static packaging with individual serial number documentation to support traceability requirements in regulated industries.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund, with return shipping coordinated by our technical support team. Our average response time for warranty claims is within 24 business hours. For time-critical plant shutdowns or emergency replacement scenarios, expedited shipping from our Xiamen warehouse is available to most destinations in Asia, Europe, and North America within 3–7 business days.

Procurement teams can request a formal test report, certificate of conformance, or customs documentation (including HS code classification and country of origin declaration) at the time of order. Volume pricing and blanket purchase order arrangements are available for MRO and system integrator accounts.

Contact our technical sales team to confirm compatibility with your specific system configuration before ordering.
