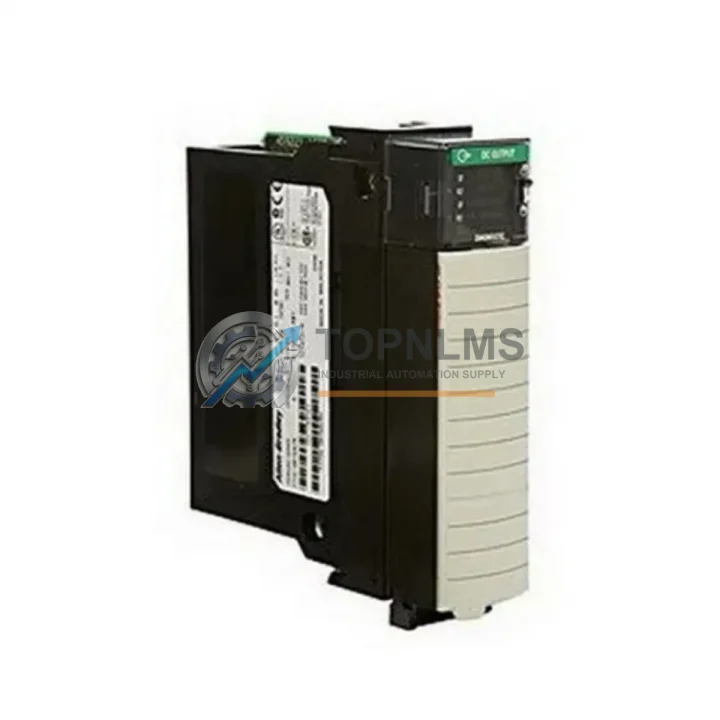

Allen-Bradley 1756-OG16 Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-OG16 Original Industrial Spare ControlLogix: System Stability & Maintenance Value

The Allen-Bradley 1756-OG16 is a 16-point TTL digital output module designed for the ControlLogix platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, process control, and critical infrastructure worldwide. Holding a verified original spare of the 1756-OG16 in your maintenance inventory is a direct investment in system uptime, operational continuity, and long-term asset protection.

In industrial environments where unplanned downtime can cost thousands of dollars per hour, the ability to execute a rapid module swap without waiting on lead times is a decisive competitive advantage. The 1756-OG16 interfaces directly with the 1756 ControlLogix backplane, delivering low-voltage TTL-compatible output signals to downstream devices including solid-state relays, signal converters, and high-speed counters. Its compact form factor and hot-swap capability within a powered chassis make it a preferred choice for maintenance engineers who need to minimize intervention windows during scheduled or emergency shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any ControlLogix-based control cabinet should treat the 1756-OG16 as one node in a broader ecosystem of interdependent components. When scheduling a planned shutdown or conducting a quarterly cabinet inspection, maintenance teams should simultaneously audit the health of the 1756-IA16 AC digital input module and 1756-OA16 AC digital output module installed in adjacent slots — these modules share the same backplane power budget and thermal environment, and degradation in one is often a leading indicator of stress in others.

The 1756-PA75 power supply module (or its redundant counterpart, the 1756-PA75R) should be inspected for capacitor aging, output voltage drift, and fan operation during the same maintenance window. A failing power supply is the single most common root cause of unexplained I/O module faults in ControlLogix systems. Pairing a spare 1756-OG16 with a spare power supply in your storeroom eliminates the two most frequent single points of failure in a ControlLogix cabinet.

For systems using EtherNet/IP communication, the 1756-EN2T or 1756-EN2TR communication module should be included in the inspection checklist. Firmware version mismatches between the communication module and the controller can cause intermittent I/O faults that are often misdiagnosed as output module failures. Verifying firmware alignment during planned maintenance prevents unnecessary module replacements.

The 1756-L71 or 1756-L73 ControlLogix controller itself should have its battery status checked — a depleted 1756-BA1 lithium battery will result in program loss on power cycle, which can extend a simple module swap into a multi-hour recovery event. Keeping a spare battery alongside your 1756-OG16 is a low-cost, high-impact maintenance practice.

At the field wiring level, inspect the 1492-IFM terminal blocks and interface modules connected to the 1756-OG16’s output wiring. Loose terminations, oxidized contacts, and undersized conductors are frequent causes of intermittent output faults that are incorrectly attributed to the module itself. A thorough wiring inspection during the same maintenance window as a module replacement maximizes the value of each shutdown.

For facilities running legacy ControlLogix 5550 or 5560 controllers alongside newer 5570/5580 series hardware, the 1756-OG16 is compatible across generations, making it an ideal universal spare that covers multiple system vintages in a single storeroom SKU.

Strategic Replacement Solutions

The 1756-OG16 addresses a specific and increasingly critical challenge in industrial maintenance: the need to replace aging TTL output modules in ControlLogix systems that were commissioned in the early 2000s and are now approaching or exceeding their designed service life. Many facilities are operating these systems well beyond original design intent, driven by the high cost and complexity of full system migrations.

A direct replacement with a genuine original 1756-OG16 is the lowest-risk, lowest-cost path to restoring full system functionality. Unlike third-party compatible modules, an original Allen-Bradley module requires no firmware adjustments, no I/O tree reconfiguration in Studio 5000 Logix Designer, and no re-validation of safety interlocks. The module is recognized immediately by the controller upon insertion, and the existing program continues execution without modification.

For facilities managing multiple ControlLogix cabinets across a plant floor, standardizing on a small buffer stock of 1756-OG16 modules — typically two to four units depending on the number of installed chassis — provides a statistically robust safety net against unplanned failures. This approach is significantly more cost-effective than emergency procurement, which typically carries premium pricing and extended lead times from distribution channels.

When replacing a failed 1756-OG16, the recommended procedure is to document the slot address and I/O configuration in RSLogix 5000 or Studio 5000 before removal, verify the replacement module’s firmware revision matches the project requirements, insert the new module into the same slot, and confirm output status via the controller’s I/O tree before returning the system to automatic operation. This process can typically be completed in under 15 minutes by a qualified technician, minimizing production impact.

Support FAQ

Q1: Is the 1756-OG16 compatible with all ControlLogix chassis sizes?
Yes. The 1756-OG16 is compatible with all 1756 ControlLogix chassis, including the 4-slot (1756-A4), 7-slot (1756-A7), 10-slot (1756-A10), 13-slot (1756-A13), and 17-slot (1756-A17) variants. It occupies a single slot and communicates via the standard ControlLogix backplane.

Q2: What testing is performed before shipment?
Each 1756-OG16 unit is functionally tested prior to dispatch. Testing covers backplane communication integrity, all 16 output point activation, and output voltage verification within TTL specification. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage spare parts inventory for a multi-cabinet ControlLogix installation?
For installations with three or more ControlLogix chassis, we recommend maintaining at least one spare 1756-OG16 per four installed units, alongside spares for the power supply module and the primary communication module. This buffer stock strategy is aligned with IEC 62443 maintenance best practices for industrial control systems and provides coverage for the statistically most likely failure modes without excessive capital tied up in inventory.

Q4: Can the 1756-OG16 be used as a direct replacement for the 1756-OG16I?
The 1756-OG16 and 1756-OG16I are closely related but have different isolation characteristics. The 1756-OG16I provides isolated outputs, while the 1756-OG16 uses a non-isolated common reference. Before substituting one for the other, verify the wiring configuration and safety requirements of your specific application. If in doubt, contact our technical support team with your system documentation for a compatibility assessment before ordering.
