Allen-Bradley 1756-OF8H Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-OF8H Replacement for ControlLogix: Seamless Migration & Smooth Transition

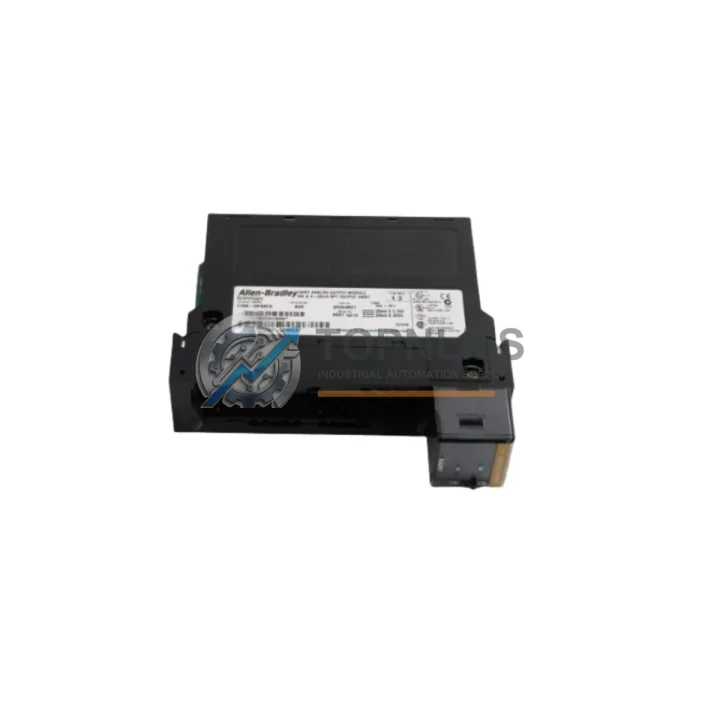

The Allen-Bradley 1756-OF8H is an 8-channel, high-resolution analog output module designed for the ControlLogix platform. As legacy ControlLogix installations age and original 1756-OF8H units reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to find a reliable, drop-in replacement that preserves existing wiring infrastructure, PLC program logic, and control cabinet layouts. TOPNLMS supplies tested, verified 1756-OF8H modules — and compatible upgrade paths — to help you execute a smooth, low-risk migration with minimal production downtime.

Whether you are replacing a failed unit in an emergency shutdown scenario or executing a planned modernization of a legacy 1756-series rack, the 1756-OF8H fits directly into any ControlLogix 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 — without mechanical modification. The module communicates natively over the ControlLogix backplane, meaning your existing Studio 5000 Logix Designer program requires no structural changes: simply swap the module, verify the I/O tree, and confirm channel scaling parameters. For sites running older RSLogix 5000 projects, the same compatibility applies.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-OF8H migration rarely involves a single module swap. In practice, field engineers coordinate the replacement alongside several interconnected components to ensure system-wide integrity. The 1756-TBCH removable terminal block is the most common wiring interface for this module; if your existing RTB shows corrosion or terminal wear, replacing it simultaneously eliminates a common post-swap fault source. For sites where the analog output signals feed into a FLEX I/O 1794-OB16 or similar distributed I/O node, verifying the downstream signal chain before commissioning prevents range mismatch alarms.

On the communication side, many ControlLogix systems running 1756-OF8H modules also rely on a 1756-EN2T EtherNet/IP communication module for remote I/O bridging or HMI connectivity. If your EN2T firmware is below v5.028, a firmware update is recommended before introducing a new high-resolution analog module to avoid backplane timing conflicts. Similarly, sites using 1756-DNB DeviceNet Bridge modules for legacy field device integration should confirm that the DeviceNet scanner task rate is compatible with the OF8H’s RPI (Requested Packet Interval) settings.

For control cabinet power budgeting, the 1756-PA72 power supply supports up to 10A at 1.2V backplane — sufficient for a fully populated 1756-A10 chassis including the 1756-OF8H. If your cabinet is running a mixed rack with high-density digital output modules such as the 1756-OB32, recalculating the chassis power budget before the swap is a standard commissioning step. On sites where the ControlLogix controller is a 1756-L73 or 1756-L74 Logix 5573/5574, the OF8H integrates without any controller firmware dependency beyond v20.

For HMI-side validation, engineers using a PanelView Plus 7 connected via EtherNet/IP can verify analog output tag values in real time during commissioning without interrupting the PLC scan cycle. This is particularly useful when performing a live cutover on a running process line where zero-downtime replacement is required.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing 1756-OF8 with 1756-OF8H?
Yes. The 1756-OF8H uses the same removable terminal block (RTB) form factor as the 1756-OF8. Your existing 1756-TBCH or 1756-TBS6H wiring harness connects directly. No rewiring of field cables is required — only verify terminal torque specifications per the installation manual.

Q: Do I need to modify my Studio 5000 program after the swap?
Minimal changes only. The module profile in Studio 5000 must be updated from 1756-OF8 to 1756-OF8H in the I/O tree. Channel scaling parameters (engineering units, clamp values, rate-of-change limits) should be reviewed and re-entered, as the 16-bit resolution of the OF8H provides finer granularity than the 13-bit OF8. No ladder logic or function block rewrites are required.

Q: Is the 1756-OF8H compatible with EtherNet/IP and ControlNet architectures?
Yes. The 1756-OF8H communicates over the ControlLogix backplane and is fully compatible with any controller-to-module communication path, whether the controller connects via EtherNet/IP (1756-EN2T), ControlNet (1756-CN2), or direct local chassis. No protocol-level changes are needed.

Q: What if my chassis slot position is constrained by adjacent high-heat modules?
The 1756-OF8H has standard thermal dissipation for a single-slot analog module. Rockwell Automation recommends maintaining at least one empty slot adjacent to high-power modules. If your chassis layout is tight, consult the 1756-SG001 ControlLogix Selection Guide for slot placement guidelines. TOPNLMS technical support can assist with chassis layout review prior to shipment.

Q: Can the 1756-OF8H replace 1756-OF6CI or 1756-OF6VI current/voltage output modules?
Partially. The OF8H supports both current (0–20 mA / 4–20 mA) and voltage (±10 V) output per channel, making it a functional upgrade from the OF6CI (current-only) and OF6VI (voltage-only) 6-channel modules. Note the channel count increases from 6 to 8, and wiring must be adapted to the OF8H RTB pinout. Program tag structures will require updating to reflect the additional channels.

Warranty Assurance

Every 1756-OF8H module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including backplane communication check, channel output calibration confirmation, and visual inspection for connector integrity. Modules are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement dispatch within 3 business days of fault confirmation. Our after-sales team responds to technical inquiries within 24 hours on business days. For urgent production-line failures, expedited shipping options are available to most destinations. We maintain buffer stock of common ControlLogix modules — including the 1756-OF8H — to support emergency procurement requests without lead-time delays.

Procurement teams can request a test report, module serial number documentation, or a proforma invoice for customs clearance prior to payment. We support T/T bank transfer, PayPal, and trade-term options including EXW Xiamen and DDP for select destinations.
