Allen-Bradley 1756-OB16I Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-OB16I Original Industrial Spare ControlLogix: System Stability & Reliable Output Control

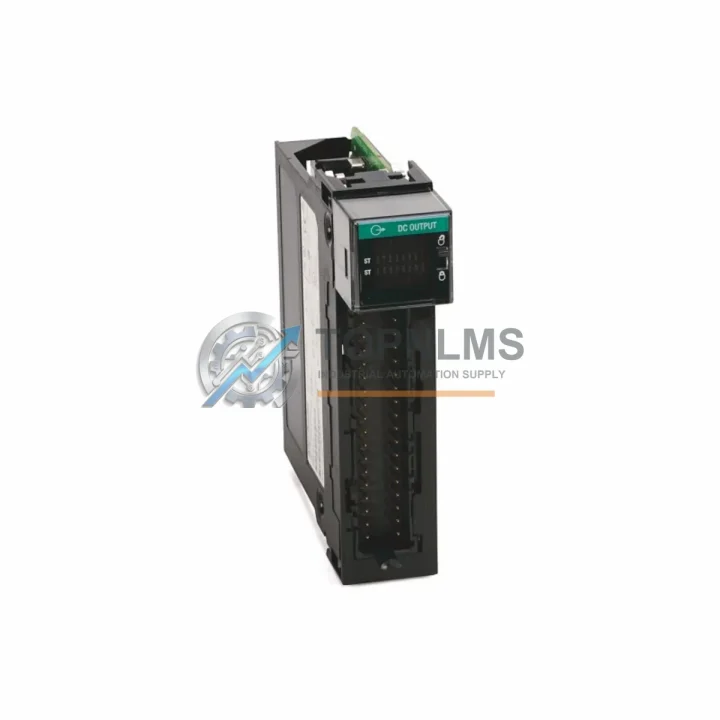

The Allen-Bradley 1756-OB16I is a 16-point isolated DC output module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. As a genuine original spare part, the 1756-OB16I is engineered to deliver consistent, high-integrity digital output performance in demanding manufacturing, process control, and critical infrastructure environments. Sourcing an original replacement module — rather than a refurbished or counterfeit alternative — is the single most effective step a maintenance team can take to protect system uptime and preserve the integrity of the control architecture.

Whether your facility operates continuous production lines, batch processing systems, or discrete manufacturing cells, the 1756-OB16I plays a central role in commanding field devices: solenoid valves, motor starters, indicator lamps, relay coils, and actuator drives. A failed or degraded output module can cascade into unplanned downtime, safety interlocks, and costly production losses. Keeping a verified original 1756-OB16I in your spare parts inventory is a proven strategy for minimizing mean time to repair (MTTR) and sustaining operational continuity.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your ControlLogix System

A disciplined preventive maintenance program for a ControlLogix 1756 system extends well beyond replacing a single output module. When a 1756-OB16I is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet and associated field wiring. This approach reduces the probability of secondary failures and avoids repeat callouts.

Begin with the chassis and power infrastructure. The 1756-PA75 or 1756-PB75 power supply should be inspected for output voltage stability, fan operation, and signs of thermal stress — a degraded power supply is a common root cause of intermittent module faults. While the chassis is open, verify the condition of the 1756-A10 or 1756-A17 chassis backplane connectors and check for corrosion or mechanical damage to module slots adjacent to the 1756-OB16I.

On the input side of the same control loop, inspect the corresponding 1756-IB16 or 1756-IB32 digital input modules for contact wear and signal integrity. Input and output modules in the same I/O group often experience correlated degradation, particularly in high-cycle or high-temperature environments. If the system uses analog signals for process feedback, the 1756-IF8 analog input module should also be checked for drift and calibration status.

Field wiring termination is a frequent source of latent faults. Inspect the 1492-CABLE series wiring interface cables and associated 1492-IFM interface modules that connect the 1756-OB16I to field terminal blocks. Loose or oxidized terminations at the 1756-TBCH or 1756-TBS6H removable terminal blocks can cause intermittent output faults that are difficult to diagnose without physical inspection.

For systems with communication-intensive architectures, verify the status of the 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules. Network module firmware should be current, and port LEDs should be checked for fault indicators. In multi-chassis or remote I/O configurations, the 1756-RM or 1756-RM2 redundancy modules should be inspected to confirm synchronization status and switchover readiness.

Finally, review the condition of the 1756-L7x or 1756-L8x ControlLogix controller itself — battery status (for L7x series), firmware revision, and memory utilization. A controller operating near memory capacity or running outdated firmware introduces unnecessary risk during module replacement and recommissioning. Pairing a 1756-OB16I replacement with a comprehensive cabinet audit transforms a reactive repair into a proactive reliability investment.

Strategic Replacement Solutions: Reducing Downtime, Preserving Compatibility

The 1756-OB16I is a long-lifecycle module, but aging ControlLogix systems inevitably face the challenge of sourcing original spare parts as production runs end and distributor stocks deplete. The strategic value of securing a genuine original 1756-OB16I — rather than a field-modified or third-party substitute — lies in three areas: drop-in compatibility, firmware alignment, and warranty coverage.

Drop-in compatibility means the 1756-OB16I installs directly into any 1756 chassis slot without hardware modification, configuration file changes, or I/O tree restructuring in Studio 5000 Logix Designer. This is critical in time-sensitive shutdowns where every hour of downtime carries measurable production cost. A genuine original module is recognized immediately by the controller, eliminating the commissioning delays associated with substitute or counterfeit parts.

Firmware alignment ensures the module operates within the validated parameters of the existing controller project. Counterfeit or refurbished modules with mismatched firmware revisions can introduce subtle output timing errors, diagnostic suppression, or safety interlock bypass conditions — risks that are unacceptable in regulated industries such as pharmaceuticals, food processing, oil and gas, and automotive manufacturing.

Warranty coverage provides procurement assurance. Every 1756-OB16I shipped from TOPNLMS is covered by a 12-month warranty, pre-tested against Allen-Bradley factory specifications, and accompanied by inspection documentation. This allows maintenance managers to justify spare parts expenditure to procurement and finance teams with confidence.

For facilities managing legacy 1756 systems alongside newer PlantPAx or FactoryTalk architectures, the 1756-OB16I also serves as a bridge component — maintaining the original control logic while longer-term system modernization is planned and budgeted. Stocking one or two units per critical production line is a widely adopted best practice in industrial spare parts management.
