Allen-Bradley 1756-OB16D Original Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-OB16D Original Spare ControlLogix Compatible: System Stability & Industrial Spare Value

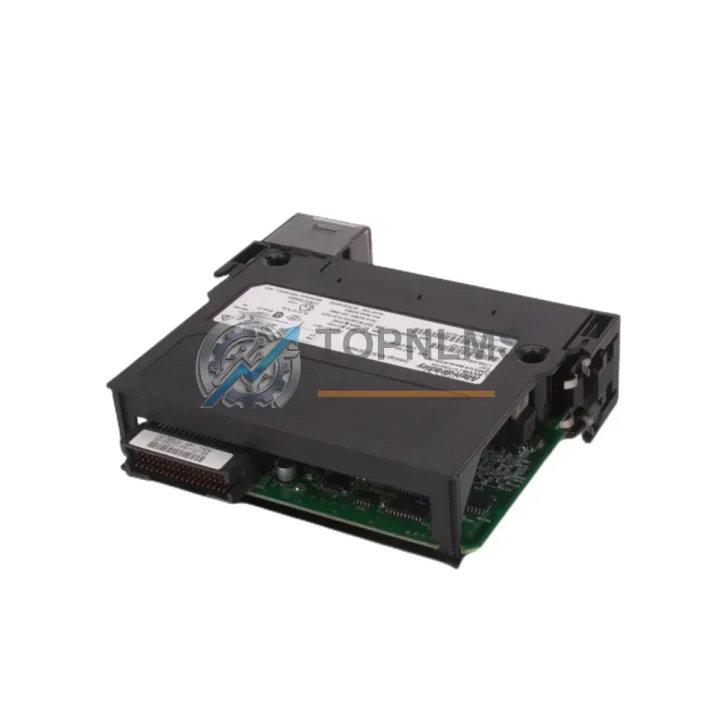

The Allen-Bradley 1756-OB16D is a 16-point, 24VDC sourcing digital output module designed for the ControlLogix platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, process control, and critical infrastructure worldwide. As facilities age and OEM support windows narrow, maintaining a verified stock of original spare modules like the 1756-OB16D is no longer optional — it is a core pillar of any responsible preventive maintenance and business continuity strategy.

Whether you are managing a high-throughput automotive assembly line, a chemical batch process, a water treatment facility, or a food and beverage packaging operation, the 1756-OB16D delivers the output switching reliability your control system depends on. Sourced from original Allen-Bradley production runs, each unit we supply is inspected, function-tested, and shipped with a 12-month warranty — giving your maintenance team the confidence to act fast when a module failure threatens production uptime.

Critical Technical Specs

Preventive Maintenance Strategy

A module failure in a ControlLogix rack rarely occurs in isolation. When the 1756-OB16D is flagged during a routine inspection or triggers a fault in RSLogix 5000 / Studio 5000, experienced maintenance engineers know to treat it as a signal to audit the entire control cabinet — not just swap the failed component and move on.

Begin with the power infrastructure. The 1756-PA75 or 1756-PB75 power supply modules feeding the chassis should be checked for output voltage stability and ripple; a degraded power supply is a common upstream cause of output module faults. Inspect the 1756-A10 or 1756-A17 chassis backplane connectors for oxidation or mechanical damage, as poor backplane contact can cause intermittent module communication errors that mimic output faults.

On the input side, verify that the corresponding 1756-IB16 or 1756-IB32 digital input modules are reading field device feedback correctly — a mismatch between commanded output state and confirmed input feedback is a classic diagnostic indicator of wiring or field device issues rather than module failure. If your system uses analog control loops alongside discrete outputs, this is also a good time to inspect 1756-IF8 analog input modules and 1756-OF8 analog output modules for drift or calibration deviation.

Communication integrity is equally critical. The 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules should be checked for firmware currency and network error counters. In systems using DeviceNet or ControlNet, inspect the 1756-DNB or 1756-CNB bridge modules for scanner faults. Wiring terminations at the 1492-IFM interface modules and associated terminal blocks should be torqued to specification and inspected for insulation breakdown — particularly in high-vibration or high-temperature environments.

Finally, review your spare parts inventory. A single 1756-OB16D on the shelf can mean the difference between a 20-minute swap and a 3-day lead-time crisis. Facilities with multiple ControlLogix racks should maintain at minimum one spare output module, one spare input module, and one spare power supply per rack family in active production service. Proactive procurement of these components — rather than reactive emergency sourcing — consistently delivers lower total maintenance cost and higher system availability.

Strategic Replacement Solutions

The 1756-OB16D has been in active production for over two decades, and many facilities are now operating aging units that are approaching or have exceeded their recommended service life. Original modules sourced from verified stock — as opposed to refurbished or counterfeit alternatives — preserve the full diagnostic and safety functionality built into the ControlLogix architecture, including module-level fault reporting, electronic fusing, and configurable output states on controller fault or communication loss.

For facilities transitioning from legacy SLC 500 or PLC-5 platforms, the 1756-OB16D is a direct functional replacement for discrete DC output functions previously handled by 1746-OB16 (SLC 500) or 1771-OBD (PLC-5) modules, enabling a phased migration path that preserves field wiring and reduces re-engineering cost. The ControlLogix platform’s modular architecture means you can upgrade the controller — from a 1756-L61 to a 1756-L83E, for example — without replacing the I/O modules, protecting your existing investment in 1756-series hardware.

Downtime reduction is the primary driver of strategic spare parts investment. With a verified 1756-OB16D in stock, your maintenance team can execute a hot-swap replacement in under 30 minutes, including module removal, insertion, and controller re-download — versus days or weeks of emergency procurement from distribution channels during peak demand periods. This speed advantage is particularly valuable in industries with strict SLA requirements, regulatory uptime obligations, or high cost-per-hour production losses.

Support FAQ

Q1: Is this a genuine Allen-Bradley 1756-OB16D or a third-party compatible module?
This is an original Allen-Bradley 1756-OB16D module sourced from verified industrial supply channels. It is not a clone, replica, or third-party compatible unit. Each module retains its original firmware, hardware revision markings, and Allen-Bradley catalog labeling. We do not supply counterfeit or grey-market components.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Prior to dispatch, each 1756-OB16D is bench-tested for output switching function, backplane communication, and LED status indication. A test report is available upon request. Warranty claims are processed via email to [email protected] with a fault description and order reference.

Q3: How do I verify compatibility with my existing ControlLogix system before installation?
The 1756-OB16D is compatible with all 1756-series chassis and all ControlLogix controllers running RSLogix 5000 or Studio 5000 Logix Designer. Confirm your chassis slot availability and power supply budget (120 mA at 5VDC per module). No firmware update is required for installation in existing projects — the module is recognized automatically by the controller upon insertion. For systems running older firmware, consult the Rockwell Automation Product Compatibility and Download Center (PCDC) for revision compatibility matrices.

Q4: What is the recommended inventory strategy for 1756-OB16D in a multi-rack facility?
For facilities operating 3 or more ControlLogix racks in production-critical applications, we recommend maintaining a minimum of 2 spare 1756-OB16D units per site. For facilities with 24/7 operations or high-cost downtime exposure, a ratio of 1 spare per 4 installed modules is a widely adopted industry benchmark. Bulk procurement pricing is available — contact [email protected] for volume quotation.
