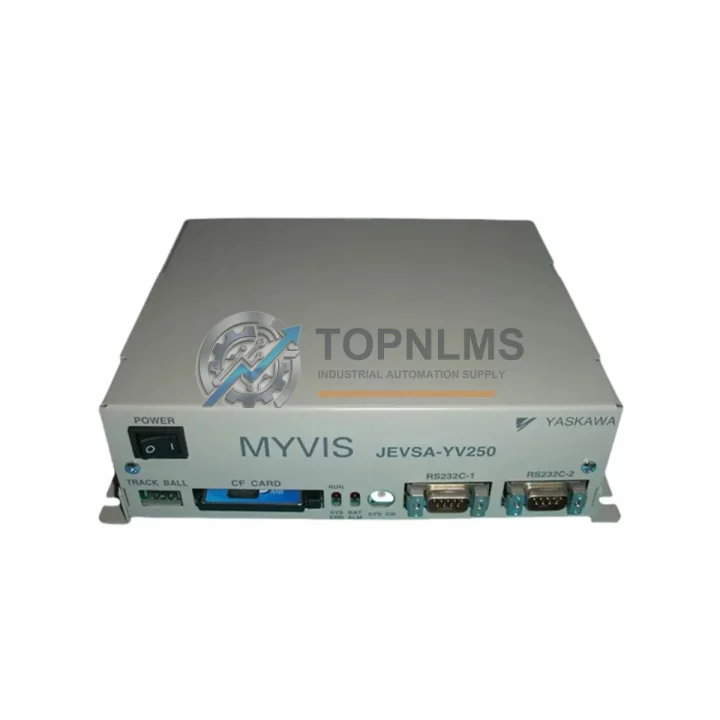

YASKAWA JEVSA-YV250-E Ruggedized Vision Controller

Product Overview

YASKAWA JEVSA-YV250-E Ruggedized Machine Vision Controller for Harsh Industrial Environments

The YASKAWA JEVSA-YV250-E is a high-performance machine vision controller from the iVY2 Series, engineered to deliver consistent, reliable inspection and measurement results in the most demanding industrial environments. Designed for continuous operation on high-speed production lines, this controller integrates seamlessly into YASKAWA’s broader automation ecosystem, providing deterministic image processing performance even under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI).

Industrial facilities — from automotive stamping plants and semiconductor fabs to food processing lines and heavy-metal foundries — demand vision systems that do not flinch when ambient conditions deteriorate. The JEVSA-YV250-E answers that demand with a ruggedized hardware architecture, fanless thermal management, and shielded signal pathways that maintain image acquisition integrity regardless of the electrical noise generated by nearby variable frequency drives (VFDs), servo amplifiers, or high-current bus bars.

Rugged Specifications Table

Comprehensive Protection Solutions

The JEVSA-YV250-E does not operate in isolation — it is a critical node within a layered automation architecture. In a typical control cabinet deployment, this vision controller works alongside the YASKAWA MP3300 Machine Controller, which coordinates motion sequences and PLC logic, ensuring that vision-triggered reject signals are acted upon within deterministic cycle times. The iVY2 camera heads — such as the YASKAWA JCAM-YV series — connect directly to the JEVSA-YV250-E, delivering high-resolution image streams even under strobe lighting conditions common in high-speed bottling or stamping lines.

Power integrity is foundational to reliable vision processing. Voltage fluctuations caused by large motor starts or welding equipment can corrupt image capture timing. Pairing the JEVSA-YV250-E with a YASKAWA-compatible 24 VDC industrial power supply with active power factor correction and surge suppression eliminates this risk. On the motion side, YASKAWA Sigma-7 Servo Drives (SGDV series) and their associated SGMJV servo motors provide the precise, repeatable positioning that vision-guided pick-and-place or welding seam tracking applications require.

Communication reliability is equally critical. The JEVSA-YV250-E interfaces with upstream SCADA and MES systems via Ethernet, and its outputs can be mapped to YASKAWA MP-series I/O modules for direct integration with safety relay circuits and interlock chains. In hazardous-area installations — such as paint booths or chemical processing zones — the controller is typically housed in a purged and pressurized enclosure alongside YASKAWA safety I/O modules that monitor door interlocks, light curtains, and emergency-stop circuits in compliance with IEC 62061 and ISO 13849 safety integrity requirements.

For facilities running YASKAWA DX200 or YRC1000 robot controllers, the JEVSA-YV250-E can serve as the vision guidance brain for robotic bin-picking or seam-tracking cells, passing coordinate offsets directly to the robot controller via a high-speed Ethernet link. This tight integration eliminates the latency and reliability risks associated with third-party vision bridges, keeping the entire cell under a single YASKAWA support umbrella.

Application in Critical Infrastructure

Across critical infrastructure sectors, the YASKAWA JEVSA-YV250-E has proven its value in environments where downtime is measured in tens of thousands of dollars per hour. In oil and gas pipeline manufacturing, it performs weld bead inspection on high-pressure pipe joints, verifying bead geometry and detecting surface porosity before hydrostatic testing. In mining and mineral processing, it monitors conveyor belt loads for oversized rock fragments that could damage crushers, triggering diverter gates in real time. In electric power generation, it inspects turbine blade profiles and generator winding insulation for micro-cracks during scheduled maintenance windows, replacing manual borescope inspection with repeatable, documented digital records.

In water and wastewater treatment facilities, the JEVSA-YV250-E monitors chemical dosing pump diaphragm condition and valve seat integrity, providing early warning of wear before catastrophic failure. In metallurgy and steel production, it performs hot-strip surface inspection at rolling mill exit speeds exceeding 20 m/s, detecting scale inclusions, edge cracks, and surface laps that would otherwise result in customer rejections. In automotive body-in-white assembly, it verifies weld nugget count and stud presence on every body panel, providing 100% inspection coverage that statistical sampling cannot match.

In each of these environments, the fanless, vibration-tolerant, EMI-hardened design of the JEVSA-YV250-E is not a luxury — it is a prerequisite. Facilities that have standardized on YASKAWA automation platforms benefit from a single-vendor support model, unified spare-parts inventory, and consistent firmware update cycles that reduce the operational burden on maintenance teams.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every YASKAWA JEVSA-YV250-E shipped by TOPNLMS carries a 12-month warranty against manufacturing defects in materials and workmanship, commencing from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection. If a defect is confirmed within the warranty period, TOPNLMS will arrange repair or replacement at no additional cost. Warranty claims are processed via email at [email protected] with photographic evidence and the original order reference.

Q2: How do you verify compatibility with my existing YASKAWA PLC or motion controller?
The JEVSA-YV250-E is designed for integration within the YASKAWA iVY2 vision ecosystem and is compatible with YASKAWA MP3000-series machine controllers and DX200/YRC1000 robot controllers via standard Ethernet communication. Before purchase, share your existing controller model and firmware version with our technical team; we will confirm compatibility and, where applicable, advise on required software versions or communication parameter settings.

Q3: Is the unit tested before shipment, and what documentation is provided?
Yes. Each unit is powered on and functionally verified before packaging. A pre-shipment inspection report is available upon request. Units are shipped in anti-static packaging with foam cushioning to prevent transit damage. A certificate of conformity and, where available, the original YASKAWA factory test record accompany the shipment.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of YASKAWA iVY2 series components specifically to support facilities with long production lifecycles and limited tolerance for extended lead times. For critical infrastructure operators, we recommend establishing a standing spare-parts agreement. Contact us at [email protected] or +86 18359293191 to discuss volume pricing, reserved stock arrangements, and expedited shipping options for emergency replacement scenarios.
