YASKAWA SGDR-C0A040A01BNX100 Original Industrial Spare YRC1000 Compatible

Product Overview

YASKAWA SGDR-C0A040A01BNX100 Original Industrial Spare YRC1000 Compatible: Ensuring System Stability in Robotic Automation

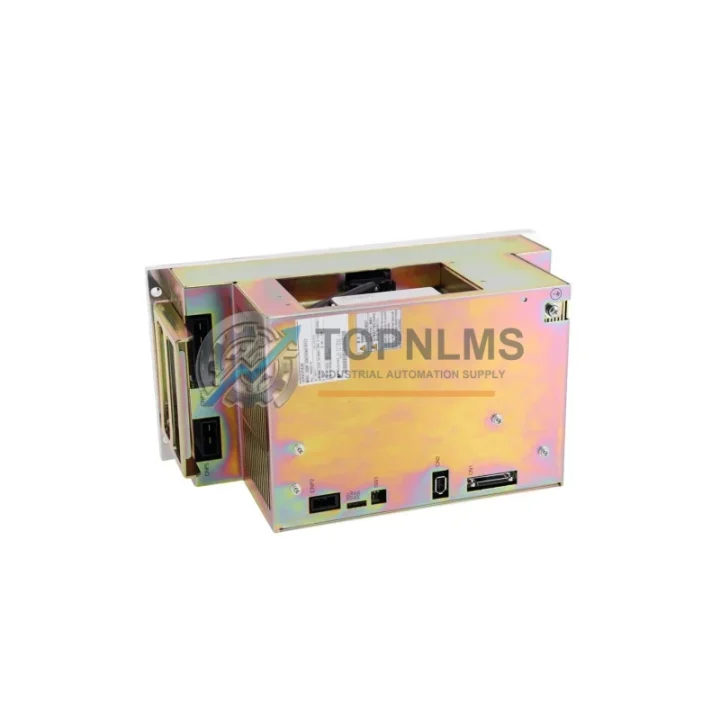

In modern industrial automation environments, the reliability of every component in a robotic control system directly determines production continuity. The YASKAWA SGDR-C0A040A01BNX100 is an original servo drive axis amplifier unit designed for the YRC1000 robot controller platform — one of YASKAWA’s most widely deployed six-axis robot controller architectures in automotive, electronics, and general manufacturing facilities worldwide. When this unit fails or degrades, the entire robot arm loses motion control capability, resulting in unplanned downtime that can cost thousands of dollars per hour in lost production.

Sourced directly from verified supply channels, this SGDR-C0A040A01BNX100 unit is an original YASKAWA component — not a third-party substitute or remanufactured part. It is engineered to slot directly into the YRC1000 controller cabinet without parameter reconfiguration, preserving the original motion profile, torque curves, and safety interlock behavior that your production line depends on.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers know that a servo drive failure in a YRC1000 system rarely occurs in isolation. The axis amplifier operates as part of a tightly integrated power and signal chain, and when one component shows signs of wear — elevated temperature, intermittent fault codes, or erratic torque response — it is standard practice to inspect the entire control cabinet during the same maintenance window.

When replacing the SGDR-C0A040A01BNX100, your maintenance team should simultaneously inspect the YRC1000CPU ACP01-E CPU board, which coordinates all axis commands and safety logic. A degraded CPU board can cause recurring axis faults even after a new servo drive is installed. Alongside this, the JZNC-YRK01-E rack backplane and its connector pins should be cleaned and inspected for oxidation, as poor backplane contact is a common root cause of intermittent drive faults in aging YRC1000 cabinets.

The power supply module — typically a JZRCR-YPU01-1 or JZRCR-YPU01B unit — should be load-tested during the same shutdown. An under-voltage condition from a weakening power supply will cause the servo drive to trip on low-voltage faults, which are often misdiagnosed as drive failures. Replacing the servo drive without verifying the power supply health is a common and costly mistake in field maintenance.

The regenerative resistor unit (braking resistor assembly) connected to the servo drive should also be checked for resistance drift and thermal discoloration. In high-cycle applications such as spot welding or palletizing, regenerative resistors degrade faster than the drives themselves and can cause overvoltage trips that damage the axis amplifier prematurely.

For facilities running multiple YRC1000 controllers, it is advisable to maintain a minimum stock of SGDR-series axis amplifier units covering the most common power ratings in your robot fleet. Alongside the SGDR-C0A040A01BNX100, consider stocking the SGDR-C0A080A01B (0.8 kW class) and SGDR-C0A120A01B (1.2 kW class) units to cover the full range of axis configurations in your Motoman robot population.

The JZSP-series encoder cable assembly connecting the servo motor to the axis amplifier is another high-wear item that should be inspected during every servo drive replacement. Cable jacket cracking, connector pin corrosion, and shield continuity failures are leading causes of encoder feedback errors that trigger E7.30 and similar alarm codes in YRC1000 systems. Replacing the drive without inspecting the encoder cable is a frequent cause of repeat failures within weeks of maintenance.

Finally, the JANCD-YIO21-E I/O interface board and safety relay module within the YRC1000 cabinet should be verified for correct operation after any servo drive replacement. Safety circuit continuity must be confirmed before returning the robot to automatic mode, and any marginal relay contacts should be replaced proactively to prevent nuisance safety stops during production.

Strategic Replacement Solutions

The YASKAWA YRC1000 platform has been in active deployment since approximately 2013, meaning that a significant portion of installed units are now entering their second decade of operation. As original components age, the risk of unplanned failures increases exponentially — particularly for power electronics such as servo drives, which are subject to thermal cycling, capacitor aging, and IGBT degradation over time.

Sourcing an original SGDR-C0A040A01BNX100 replacement unit is the most reliable strategy for restoring full system performance without the risk of compatibility issues associated with third-party alternatives. Unlike aftermarket servo drives, an original YASKAWA unit retains full compatibility with the YRC1000’s proprietary MECHATROLINK-II communication protocol, ensuring that axis tuning parameters, safety interlock logic, and motion profiles are preserved without re-commissioning.

For facilities managing a fleet of Motoman robots, establishing a critical spare parts inventory that includes at least one SGDR-C0A040A01BNX100 unit per controller type significantly reduces mean time to repair (MTTR). Industry benchmarks suggest that facilities with pre-positioned critical spares achieve 60–80% faster recovery from servo drive failures compared to those relying on emergency procurement. Given typical lead times for industrial automation components, having a unit on the shelf can mean the difference between a two-hour repair and a two-week production disruption.

This unit ships after functional pre-shipment testing and is covered by a 12-month warranty from the date of shipment. All units are carefully packaged with anti-static protection and shock-absorbing materials to ensure safe transit to your facility, whether you are located domestically or internationally.
