YASKAWA YPLT31006-1A Replacement for AC Drive Series

Product Overview

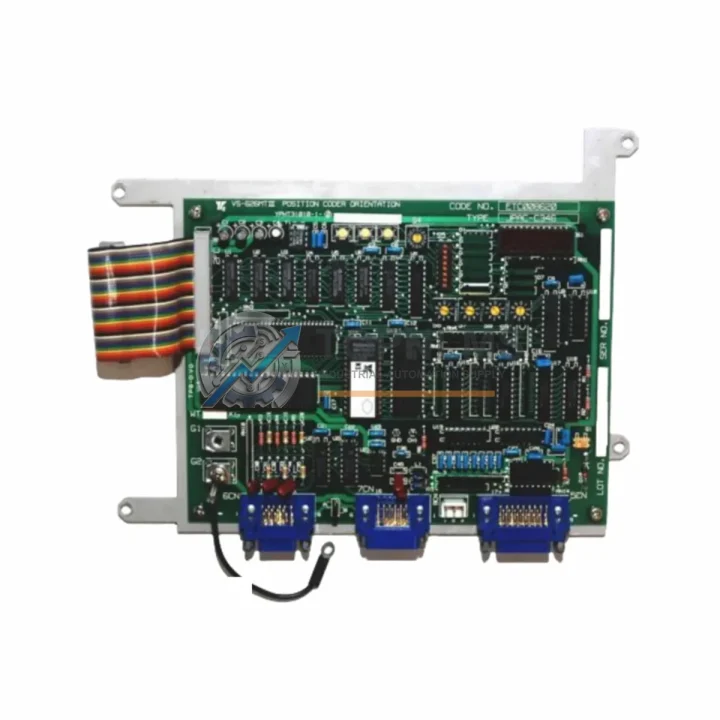

YASKAWA YPLT31006-1A Replacement for AC Drive Series: Seamless Transition & Legacy System Compatibility

When a YASKAWA AC drive control board fails in a production environment, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The YASKAWA YPLT31006-1A control PCB is a precision-engineered replacement and upgrade solution designed to restore full drive functionality with minimal intervention. Whether you are retiring an aging YASKAWA G7, F7, or E7 series inverter, or performing a like-for-like swap on a failed unit, this board delivers the electrical compatibility, firmware alignment, and mechanical fit that industrial retrofit projects demand.

The YPLT31006-1A serves as the central control intelligence of YASKAWA’s medium-voltage and low-voltage AC drive platforms. It manages PWM signal generation, fault detection, communication interfacing, and real-time motor vector control. Replacing this board restores the drive to factory-specification performance without requiring a full drive chassis replacement — a critical advantage when the surrounding power stack, cooling system, and cabinet wiring remain serviceable.

For facilities running legacy YASKAWA Varispeed series drives or older CIMR-prefix inverters, this replacement board eliminates the need to re-engineer the entire control cabinet. The original terminal layout, DIP switch configuration, and connector pinout are preserved, allowing maintenance engineers to complete the swap using existing documentation and without rewriting PLC ladder logic or reconfiguring SCADA setpoints.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC drive control board migration rarely involves a single component. In practice, the YPLT31006-1A replacement is most effective when evaluated alongside the broader drive system architecture. During a G7 or F7 series retrofit, engineers frequently inspect and simultaneously replace the YASKAWA YPCT31S14-1A gate driver board, which interfaces directly with the IGBT power module stack and is subject to the same thermal aging cycles as the control PCB. If the drive’s power supply section shows signs of capacitor degradation, the YASKAWA YPCT31S13-1A power supply board is a natural companion replacement to ensure stable 5V and 15V rail delivery to the new control board.

For facilities that rely on fieldbus communication between the drive and a Siemens S7-300 or S7-400 PLC, the YASKAWA SI-P3/V option card (PROFIBUS-DP communication module) must be verified for firmware compatibility with the replacement control board before commissioning. Similarly, installations using DeviceNet or EtherNet/IP topologies should confirm that the YASKAWA SI-N3 or SI-EN3 communication option card seated in the drive’s option slot remains compatible after the board swap.

In control cabinet environments where the YPLT31006-1A replacement is part of a broader modernization effort, it is common to simultaneously upgrade the YASKAWA JVOP-160 digital operator panel — particularly if the existing keypad shows display degradation or keypad membrane failure. The JVOP-160 retains all drive parameters and simplifies re-commissioning after the control board replacement. For multi-drive cabinet installations, the YASKAWA DriveWizard Industrial software running on a connected PC via USB-RS422 programming cable provides batch parameter backup and restore, eliminating manual re-entry across multiple drives.

Where the retrofit scope extends to the I/O interface layer, the YASKAWA YPLT31006-1A pairs naturally with terminal block expansion modules and signal isolators that protect analog speed reference inputs (0–10V or 4–20mA) from ground loop interference — a common issue in older cabinet wiring harnesses. If the existing control cabinet uses a YASKAWA VS-606V7 or VS-616G5 series drive as the outgoing unit, the YPLT31006-1A upgrade path should include a wiring diagram cross-reference review to confirm terminal mapping before energizing the replacement board.

Retrofit Guidance FAQ

Q: Can I replace the YPLT31006-1A without reprogramming the drive?
A: In most cases, yes. Drive parameters are stored in the operator panel (JVOP-160) or in the drive’s non-volatile memory, not on the control board itself. After installing the replacement board, reconnect the operator panel and verify that all parameters are intact before running the motor. If parameters were not previously backed up, use DriveWizard Industrial to restore from a saved file.

Q: Is the wiring harness compatible with the replacement board?
A: The YPLT31006-1A uses the same OEM connector layout as the original board. No adapter harness or re-pinning is required. Inspect the ribbon cable and terminal connectors for corrosion or mechanical damage before reinstallation.

Q: What communication protocols does this board support?
A: The board natively supports MEMOBUS/Modbus RTU over RS-485. For PROFIBUS-DP, DeviceNet, or EtherNet/IP, the corresponding YASKAWA option card (SI-P3/V, SI-N3, or SI-EN3) must be installed in the drive’s option slot. The replacement board does not affect option card compatibility.

Q: Will the replacement board fit in the existing cabinet without modification?
A: Yes. The YPLT31006-1A maintains the same PCB form factor and mounting hole pattern as the original. No cabinet cutouts, DIN rail modifications, or additional mounting hardware are required.

Q: What fault codes indicate the control board needs replacement?
A: Common fault codes associated with control board failure on YASKAWA drives include OC (overcurrent on startup), UV1/UV2 (undervoltage with no DC bus issue), GF (ground fault with no wiring fault confirmed), and SC (short circuit detected without load fault). If these faults persist after clearing and the power stack tests healthy, the control board is the primary suspect.

Q: How long does commissioning take after the board swap?
A: For a like-for-like replacement with parameters pre-backed-up, commissioning typically takes 30–90 minutes including board installation, parameter restore, and a no-load test run. Full load commissioning with motor tuning (auto-tune) may require an additional 1–2 hours depending on motor size and application.

Warranty Assurance

Every YASKAWA YPLT31006-1A control board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication interface check, and visual inspection for component integrity. Boards are shipped in anti-static packaging with foam protection to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a direct replacement or full refund within the warranty period. Our technical support team responds to after-sales inquiries within 24 hours on business days. For urgent production-down situations, expedited replacement dispatch is available upon request.

All units are sourced through verified supply channels and are accompanied by documentation confirming origin and inspection status. TOPNLMS maintains stock of high-demand YASKAWA control boards to support rapid fulfillment for MRO (maintenance, repair, and operations) procurement teams operating under tight downtime windows.

For volume orders, OEM cross-reference verification, or application-specific compatibility confirmation, contact our industrial automation specialists directly.
