Schneider Electric TSXMFPP224K Original Industrial Spare TSX Premium Compatible

Product Overview

Schneider Electric TSXMFPP224K Original Industrial Spare TSX Premium Compatible: System Stability and Maintenance Value for Critical Automation Environments

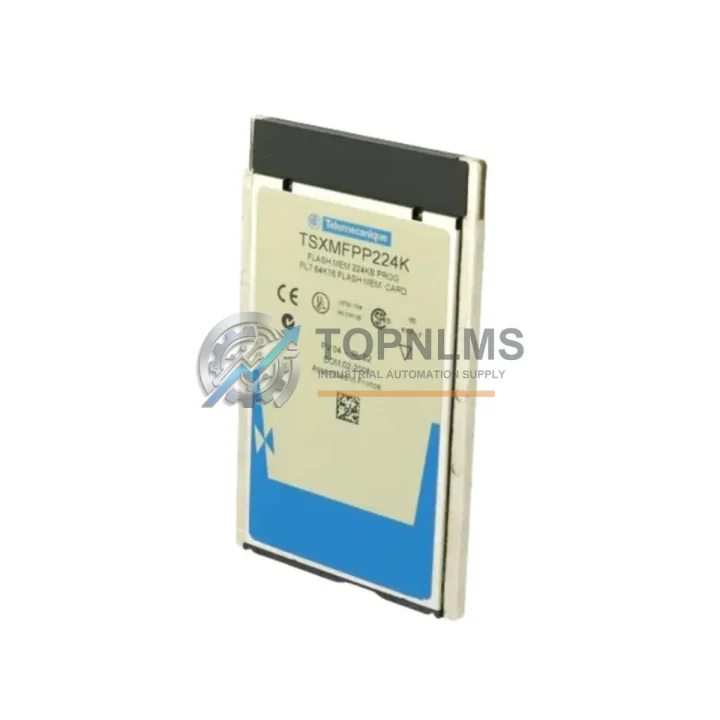

The Schneider Electric TSXMFPP224K is a 224KB Flash EPROM memory card engineered specifically for the TSX Premium PLC series — one of the most widely deployed programmable logic controller platforms in process automation, discrete manufacturing, and infrastructure control systems worldwide. As an original spare part, the TSXMFPP224K plays a foundational role in maintaining program integrity, ensuring fast recovery from unexpected shutdowns, and supporting long-term system continuity in facilities where unplanned downtime carries significant operational and financial consequences.

In industrial environments where TSX Premium controllers manage conveyor lines, HVAC systems, water treatment processes, or packaging machinery, the memory card is not a peripheral accessory — it is the repository of the entire control logic. A failed or corrupted memory card means a complete loss of the PLC program, which can translate to hours or days of recovery time if a verified backup spare is not available on-site. Stocking the TSXMFPP224K as a ready-to-deploy replacement is one of the most cost-effective decisions a maintenance team can make.

Critical Technical Specs

Preventive Maintenance Strategy

A memory card replacement event is rarely an isolated task. When a TSX Premium PLC requires a TSXMFPP224K swap — whether due to card failure, program corruption, or a planned system upgrade — experienced maintenance engineers treat it as an opportunity to conduct a comprehensive cabinet inspection and spare parts audit. This approach minimizes the risk of secondary failures and maximizes the value of each scheduled maintenance window.

During a TSXMFPP224K replacement, the CPU module itself — such as the TSXP574634M or TSXP573634M — should be inspected for signs of overheating, connector wear, or firmware obsolescence. The CPU is the host for the memory card, and any degradation in the processor module can affect memory read/write reliability. If the CPU is approaching end-of-life, sourcing a replacement unit alongside the memory card is a prudent inventory decision.

The TSX Premium power supply module — such as the TSXPSY2600M or TSXPSY5500M — should also be evaluated during this maintenance cycle. Voltage instability or ripple from an aging power supply is a leading cause of memory card data corruption and unexpected PLC resets. Verifying output voltage within specification and stocking a backup power supply directly protects the integrity of the TSXMFPP224K and the program it stores.

I/O modules connected to the TSX Premium rack — including digital input modules such as the TSXDEY16D2 and digital output modules such as the TSXDSY16T2 — should be checked for contact wear, blown fuses, and LED status anomalies. A faulty I/O module can generate erratic signals that stress the CPU and indirectly affect memory operations. Replacing worn I/O modules as part of a planned maintenance cycle, rather than waiting for field failures, is standard practice in high-availability production environments.

Communication modules such as the TSXETY110WS Ethernet module or the TSXSCP114 serial communication module should be inspected for firmware currency and connector integrity. In networked control architectures, communication module failures can isolate the PLC from SCADA systems, preventing remote program uploads and backups — making a healthy local memory card even more critical as the primary program repository.

Terminal blocks and field wiring connections within the control cabinet — including Schneider Electric Linergy terminal rail assemblies or equivalent — should be torque-checked and inspected for oxidation or loose terminations. Poor field connections generate electrical noise that can propagate into the PLC backplane and affect memory card stability over time. Signal isolators installed on analog I/O circuits further protect the CPU from field-side transients that could corrupt stored program data.

The TSX Premium rack backplane and rack chassis — such as the TSXRKY8EX or TSXRKY4EX — should be visually inspected for physical damage, corrosion on module connectors, and secure module seating. A loose module in the rack can cause intermittent communication errors between the CPU and memory card, leading to program read failures that are difficult to diagnose without a systematic inspection approach. Fuse modules protecting the 24VDC field supply circuits should also be verified and replaced if showing signs of thermal stress.

Strategic Replacement Solutions

The TSXMFPP224K addresses one of the most persistent challenges in industrial automation maintenance: keeping legacy TSX Premium systems operational without migrating to a new PLC platform. Full PLC platform migrations are expensive, time-consuming, and carry significant commissioning risk. For facilities where the TSX Premium system is embedded in a validated process or integrated with existing SCADA and HMI infrastructure, maintaining a stock of original spare parts — including the TSXMFPP224K — is the most operationally sound strategy.

As an original Schneider Electric component, the TSXMFPP224K is a direct, plug-compatible replacement for any TSX Premium CPU that accepts the 224KB Flash EPROM format. There is no need for program re-engineering, firmware reconfiguration, or compatibility testing beyond confirming the CPU firmware version. This means a trained technician can complete the replacement in minutes, restoring full system functionality and minimizing production downtime.

For facilities managing multiple TSX Premium controllers across different production lines or plant areas, establishing a centralized spare parts inventory that includes the TSXMFPP224K — alongside CPU modules, power supplies, and key I/O modules — creates a resilient maintenance posture. When a failure occurs, the response time is measured in minutes rather than days waiting for emergency procurement. This inventory strategy is particularly valuable in industries with strict uptime requirements, such as food and beverage, pharmaceuticals, automotive assembly, and utilities.

Each TSXMFPP224K unit supplied by TOPNLMS is tested prior to shipment to verify read/write functionality and data retention. Units are packaged in anti-static protective packaging to prevent ESD damage during transit and storage. All units are backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions, providing procurement teams with the confidence to stock spares without concern about shelf-life risk.

Support FAQ

Q1: How do I verify that the TSXMFPP224K is compatible with my specific TSX Premium CPU model?
The TSXMFPP224K is compatible with TSX Premium CPUs in the TSX P57, TSX P47, and TSX P37 families that support 224KB Flash EPROM memory cards. Compatibility depends on the CPU firmware version — consult the Schneider Electric TSX Premium hardware reference manual or the Unity Pro / PL7 Pro software documentation to confirm the maximum supported memory card capacity for your specific CPU reference. If you are unsure, contact our technical team with your CPU part number and we will confirm compatibility before shipment.

Q2: What is included in the 12-month warranty and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, including read/write failures, data retention failures, and physical defects present at the time of delivery. It does not cover damage caused by incorrect installation, ESD mishandling, overvoltage events, or physical impact. To initiate a warranty claim, contact [email protected] with your order number, a description of the failure, and photographic evidence of the defect. Replacement units are dispatched upon claim verification.

Q3: How should the TSXMFPP224K be stored as a long-term spare?
Store the TSXMFPP224K in its original anti-static packaging in a dry, temperature-controlled environment between -25°C and +70°C with relative humidity below 95% non-condensing. Avoid storing near strong electromagnetic fields or in environments with significant vibration. Flash EPROM memory cards have excellent long-term data retention characteristics — the stored program will remain intact for years under proper storage conditions. Inspect the card and its packaging annually as part of your spare parts audit cycle.

Q4: Can I transfer an existing program from a failed memory card to a new TSXMFPP224K?
If the original memory card has failed and the program cannot be read directly, the program must be restored from a backup file stored in your PLC programming software (Unity Pro or PL7 Pro). This is why maintaining an up-to-date program backup on a secure engineering workstation is a critical complement to stocking physical spare parts. Once the new TSXMFPP224K is installed in the CPU, the program can be downloaded from the programming software in a standard online transfer procedure. TOPNLMS recommends always maintaining at least two independent program backups before performing any memory card replacement.
