Schneider TM241CE40R Original Industrial Spare M241 Compatible

Product Overview

Schneider TM241CE40R Original Industrial Spare M241 Compatible: Ensuring System Stability in Demanding Automation Environments

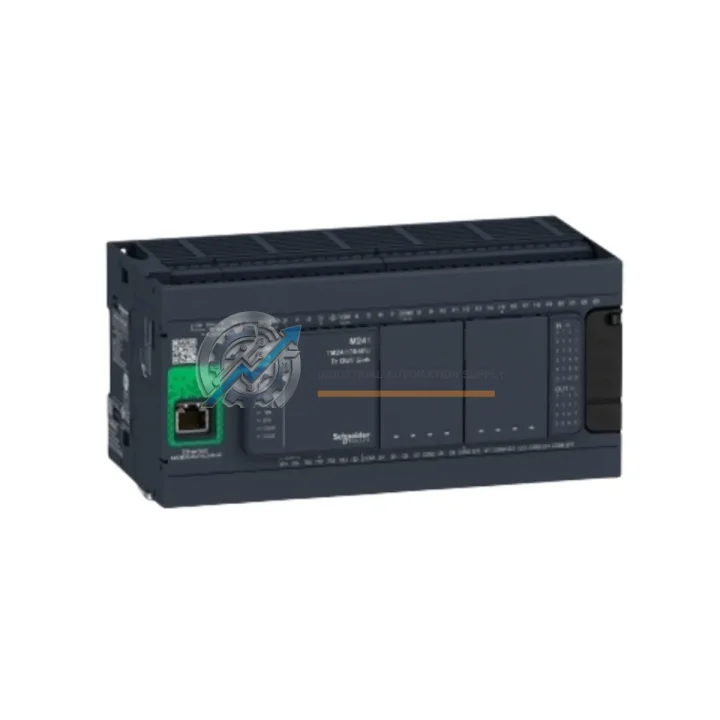

The Schneider Electric TM241CE40R is a core controller unit from the Modicon M241 series — a compact, high-performance PLC platform widely deployed across manufacturing lines, building automation systems, material handling equipment, and process control panels worldwide. When a TM241CE40R fails or reaches end-of-service life, the downstream impact on production continuity can be severe. Sourcing a verified original replacement unit is the single most effective action a maintenance team can take to restore system integrity and minimize unplanned downtime.

At TOPNLMS, every TM241CE40R unit is sourced as an original Schneider Electric component, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are executing an emergency swap during a breakdown event or building a strategic spare parts buffer for a multi-site M241 installation, this listing provides a reliable, traceable supply path.

Critical Technical Specs

Preventive Maintenance Strategy

A TM241CE40R replacement event is rarely isolated. In practice, when a compact PLC controller reaches the point of failure or scheduled replacement, the surrounding control cabinet components have often accumulated equivalent operating hours and thermal stress. A disciplined maintenance approach treats the controller swap as a trigger for a broader system health review.

During the same maintenance window, technicians should inspect and — where service life indicators suggest — replace the TM3DI16 digital input expansion module and TM3DQ16R relay output module, which share the same backplane bus and are subject to identical environmental conditions. Connector wear on the TM241CE40R’s RS-485 serial port is a common source of intermittent communication faults; verifying the integrity of the VW3A8306 serial communication cable at this stage prevents a secondary fault from masking a successful controller replacement.

Power supply integrity is equally critical. The ABL8REM24030 or equivalent 24 VDC regulated power supply feeding the M241 rack should be load-tested during the outage window. A degraded power supply operating within nominal voltage range but with elevated ripple is a leading cause of unexplained PLC resets and I/O read errors — symptoms that are frequently misattributed to the controller itself. Replacing the power supply proactively alongside the TM241CE40R eliminates this diagnostic ambiguity.

For installations using Modbus TCP or EtherNet/IP communication, the TM4ES4 Ethernet switch module and associated RJ45 patch cables should be inspected for port degradation. In high-vibration environments, Ethernet connectors are a known failure point. Similarly, if the M241 system interfaces with a Magelis HMIGTO or HMISTO HMI panel, the communication link between the HMI and the TM241CE40R should be validated post-replacement to confirm address mapping and driver compatibility with the new controller firmware version.

Terminal block condition on the NSYTRV series DIN rail terminal strips connected to the relay output section deserves attention during any relay-output PLC replacement. Relay outputs drive inductive loads — motors, solenoids, contactors — and the associated wiring terminations accumulate oxidation and micro-arcing damage over time. Inspecting and re-torquing these connections, or replacing worn Linergy FK terminal blocks, is a low-cost action that significantly reduces the risk of nuisance trips after the new controller is commissioned.

Finally, for sites maintaining a formal spare parts inventory, this replacement event is the appropriate moment to replenish the buffer stock. A recommended minimum holding for an M241-based line includes one spare TM241CE40R controller, one TM3DI16, one TM3DQ16R, and a set of TM3XTRA1 expansion bus connectors. This configuration covers the statistically most probable failure modes without requiring excessive capital commitment.

Strategic Replacement Solutions

The TM241CE40R is a direct in-series replacement for earlier Modicon M241 compact controller variants, including units originally programmed under SoMachine v4.x environments. Because the M241 platform maintains backward compatibility across its firmware generations, a TM241CE40R sourced today can be loaded with a backed-up application program from an older unit with minimal reconfiguration — provided the I/O configuration and communication parameters are preserved in the project file.

For sites still operating legacy Twido TWD series or early Zelio Logic SR3 controllers in non-critical auxiliary roles, the M241 platform represents a viable migration path that preserves Schneider Electric ecosystem compatibility while delivering substantially improved processing speed, onboard memory, and communication flexibility. The transition can be staged — replacing the primary controller with a TM241CE40R while retaining existing TM2 or TM3 I/O expansion modules — reducing the total cost and complexity of the upgrade.

TOPNLMS maintains stock of TM241CE40R units specifically to support emergency replacement scenarios where lead times from distribution channels are unacceptable. Units are dispatched with pre-shipment electrical testing documentation, and the 12-month warranty covers both early-life failure and latent defects identified during commissioning. For multi-unit procurement supporting planned maintenance programs or new panel builds, volume pricing is available on request via [email protected].

Support FAQ

Q1: Is this TM241CE40R an original Schneider Electric unit or a compatible replacement?
This is an original Schneider Electric TM241CE40R. TOPNLMS supplies only genuine OEM components. Each unit is sourced through verified supply channels and undergoes pre-shipment inspection. A 12-month warranty is provided from the date of delivery.

Q2: Can this unit be loaded directly with an existing M241 application program?
Yes. The TM241CE40R is fully compatible with application programs developed in EcoStruxure Machine Expert (formerly SoMachine). Provided your project file is backed up and the I/O configuration matches, the replacement unit can be commissioned by downloading the existing program via USB or Ethernet without requiring hardware reconfiguration.

Q3: What is the recommended spare parts holding strategy for an M241-based production line?
For a single-line installation, a minimum buffer of one TM241CE40R controller plus one each of the primary I/O expansion modules (TM3DI16, TM3DQ16R) is recommended. For multi-line or critical process applications, a two-unit controller buffer is advisable. Spare parts should be stored in anti-static packaging in a temperature-controlled environment and rotated on a 3–5 year cycle to prevent capacitor aging.

Q4: How is the unit tested before shipment, and what does the 12-month warranty cover?
Each TM241CE40R undergoes power-on functional verification prior to dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect wiring, overvoltage events, or physical mishandling. Warranty claims are processed via [email protected] with a standard RMA procedure.
