Schneider TSXTLYEX Ruggedized Bus Terminator for Harsh Environments

Product Overview

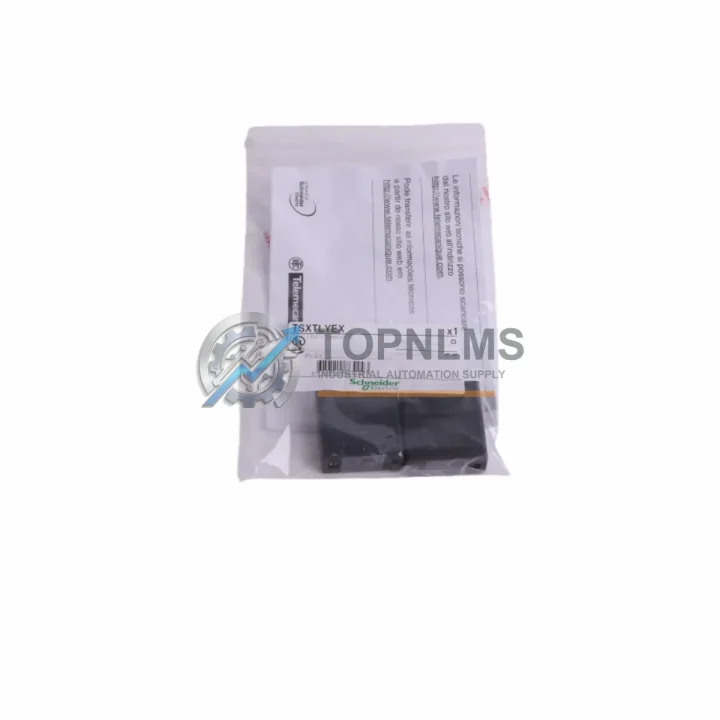

Schneider TSXTLYEX Ruggedized Bus Terminator for Harsh Environments

The Schneider Electric TSXTLYEX is a precision-engineered extension bus terminator designed for the Modicon TSX Premium and TSX Micro PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Built to terminate the TSX BUSX extension bus with electrical integrity, the TSXTLYEX ensures signal stability across multi-rack configurations operating in high-noise, high-vibration, and thermally demanding industrial environments. Whether deployed in a centralized control cabinet or distributed across a remote I/O rack in a harsh-environment facility, this terminator module is a critical component for maintaining bus communication reliability and system uptime.

Industrial facilities cannot afford bus communication failures. In continuous production lines — from petrochemical processing to automotive assembly — a degraded or unterminated extension bus can introduce signal reflections, data corruption, and cascading PLC faults that halt operations. The TSXTLYEX eliminates these risks by providing a correctly impedance-matched termination point at the end of the TSX BUSX extension bus, preserving signal integrity across all connected racks and modules. Its compact DIN-rail-compatible form factor integrates seamlessly into existing Modicon TSX rack assemblies without additional wiring or configuration.

At TOPNLMS, every TSXTLYEX unit is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. Stock is maintained on-hand in Xiamen, China, enabling rapid fulfillment for both urgent replacement orders and planned maintenance procurement. All units are covered by a 12-month warranty from the date of shipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The TSXTLYEX operates as part of a broader Modicon TSX system architecture. In a typical multi-rack installation, the TSX BUSX extension bus connects the main CPU rack — housing the TSX P57 or TSX P47 processor module — to one or more expansion racks populated with TSX DEY and TSX DSY digital I/O modules, TSX AEY analog input modules, and TSX ASY analog output modules. The TSXTLYEX is installed at the final rack in the bus chain, providing the electrical termination that prevents signal reflection and ensures deterministic communication between the CPU and all downstream I/O.

In environments with significant electromagnetic interference — such as those near variable frequency drives (VFDs), large motor starters, or high-current switching equipment — proper bus termination becomes even more critical. The TSXTLYEX works in conjunction with shielded TSX CBY extension bus cables and the TSX BUSX bus coupler modules to form a complete, EMI-hardened communication backbone. For installations requiring network-level communication, the Modicon TSX platform supports TSXETY110 and TSXETY410 Ethernet communication modules, as well as TSXSCP111 and TSXSCP114 serial communication modules for Modbus RTU and Uni-Telway protocols — all of which depend on a stable, properly terminated extension bus for reliable data exchange.

Power integrity is equally important in harsh-environment deployments. The TSX PSY power supply modules — including the TSX PSY2600M and TSX PSY5000M — provide regulated 24 VDC and 5 VDC bus power to all rack-mounted modules. A correctly terminated TSXTLYEX bus ensures that power distribution across the rack backplane remains stable, reducing the risk of module brownouts or spurious resets during load transients. For safety-critical applications, the Modicon TSX platform can be integrated with Preventa XPS safety relay modules and safety I/O to form a compliant safety architecture — where bus communication reliability, guaranteed by the TSXTLYEX, is a foundational requirement.

Application in Critical Infrastructure

The Schneider Electric TSXTLYEX is deployed across a wide range of critical infrastructure sectors where continuous, fault-free PLC operation is non-negotiable. In oil and gas upstream and midstream facilities, Modicon TSX systems control wellhead automation, pipeline SCADA, and compressor station logic — environments characterized by explosive atmospheres, wide temperature swings, and persistent vibration from rotating machinery. Proper bus termination with the TSXTLYEX is essential to maintaining communication integrity between the CPU and remote I/O racks mounted in field junction boxes or pressurized enclosures.

In mining operations, TSX Premium PLCs manage conveyor belt control, crusher automation, and ventilation systems in underground environments where dust ingress, humidity, and mechanical shock are constant challenges. The TSXTLYEX ensures that the extension bus remains electrically stable even as the control cabinet is subjected to ground vibration and thermal cycling. Water and wastewater treatment plants rely on Modicon TSX systems for pump station control, chemical dosing automation, and SCADA integration — facilities that operate 24/7 with minimal maintenance windows, making spare parts availability and drop-in replacement compatibility critical procurement considerations.

In power generation and electrical substation environments, TSX Premium systems handle protection relay interfacing, transformer monitoring, and switchgear control. The electromagnetic environment in these facilities is among the most demanding in industrial automation, with high-frequency switching transients and strong magnetic fields from power transformers. The TSXTLYEX, as part of a properly configured TSX BUSX system, provides the signal termination integrity needed to sustain reliable PLC operation under these conditions. Metallurgical and steel production facilities similarly depend on Modicon TSX systems for rolling mill control, furnace automation, and crane management — applications where a bus communication fault can result in significant production loss or safety incidents.

Security & Quality FAQ

Q: What warranty coverage is provided with the TSXTLYEX?
A: Every TSXTLYEX unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. If the unit exhibits any functional defect within the warranty period under normal operating conditions, we will provide a replacement or full refund. Our warranty applies to both new and tested-refurbished units, clearly identified at the time of quotation.

Q: How is each unit tested before shipment?
A: All TSXTLYEX units undergo a pre-shipment inspection process that includes visual examination for physical damage, connector integrity verification, and functional testing where applicable. Units are packaged in anti-static protective packaging with individual labeling. A test report or certificate of conformity is available upon request for quality-assurance-sensitive procurement processes.

Q: Is the TSXTLYEX compatible with all Modicon TSX rack configurations?
A: The TSXTLYEX is designed specifically for the Schneider Electric Modicon TSX BUSX extension bus and is compatible with TSX Premium and TSX Micro multi-rack configurations using TSX RKY series racks. It must be installed at the terminal end of the extension bus chain. It is not interchangeable with Modicon Quantum or Modicon M340 bus components. If you are uncertain about compatibility with your specific rack configuration, contact our technical team before ordering.

Q: Can TOPNLMS support long-term or repeat supply of the TSXTLYEX?
A: Yes. TOPNLMS maintains standing inventory of Modicon TSX series components, including the TSXTLYEX, to support both emergency replacement and planned maintenance procurement. We can accommodate blanket purchase orders, scheduled releases, and project-based bulk supply. For long-term supply agreements or volume pricing, contact our sales team directly at [email protected] or +86 18359293191.
