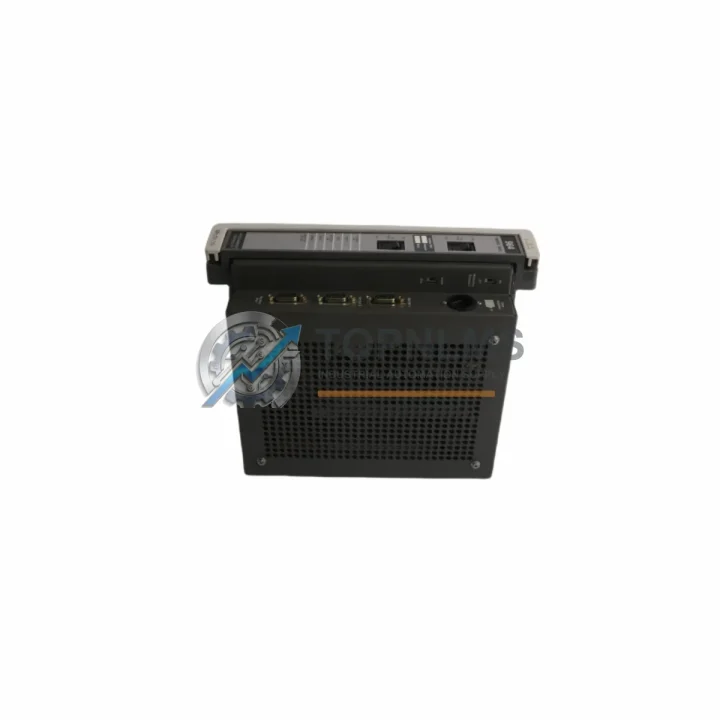

Schneider Electric PC-E984-685 Original Industrial Spare MODICON 984 Compatible

Product Overview

Schneider Electric PC-E984-685 Original Industrial Spare MODICON 984 Compatible: System Stability & Industrial Spare Maintenance Value

The Schneider Electric PC-E984-685 is a genuine CPU module from the legendary MODICON 984 series — one of the most widely deployed programmable logic controller platforms in heavy industry, process automation, and critical manufacturing environments. For maintenance engineers and plant managers operating legacy control systems, sourcing an original, tested PC-E984-685 is not merely a procurement decision; it is a direct investment in system uptime, operational continuity, and long-term asset protection.

Whether your facility runs continuous process lines, batch manufacturing, or discrete assembly operations, the MODICON 984 CPU remains the backbone of thousands of installed control cabinets worldwide. Replacing a failed or degraded PC-E984-685 with a verified original unit eliminates the risk of compatibility gaps, firmware mismatches, and unpredictable I/O behavior that often accompany counterfeit or refurbished alternatives.

Critical Technical Specs

Preventive Maintenance Strategy

When a PC-E984-685 CPU module is flagged for replacement during a scheduled shutdown or emergency corrective maintenance event, experienced maintenance teams treat the intervention as an opportunity to audit the entire control cabinet. A CPU failure or degradation rarely occurs in isolation — it is often accompanied by aging components in the same rack or electrical circuit that are approaching end-of-life.

During the same maintenance window, engineers should inspect and consider replacing the MODICON 984 rack power supply module (such as the PC-0984-110 or PC-0984-120), which shares the same operational duty cycle as the CPU and is subject to capacitor aging and voltage drift. The MODICON 984 I/O modules — including discrete input modules (PC-0984-385) and analog output modules — should be checked for contact oxidation, loose terminal connections, and signal drift, particularly in high-vibration or high-humidity environments.

The Modbus Plus network adapter card (SA-85) installed in the host PC or operator workstation should be verified for firmware compatibility with the replacement CPU. Communication faults between the CPU and upstream SCADA or DCS systems are a common post-replacement issue when network adapter firmware is mismatched. Similarly, the MODICON 984 memory backup battery — a standard lithium cell that preserves ladder logic and configuration data during power loss — should be replaced as a matter of course whenever the CPU module is swapped.

Maintenance planners should also schedule inspection of the MODICON 984 coprocessor module (PC-E984-265 or similar) if installed, as coprocessor health directly affects CPU execution speed and PID loop performance. The terminal block assemblies and field wiring connectors on associated I/O modules should be torqued to specification and inspected for insulation degradation. In facilities with older wiring infrastructure, this step alone can prevent nuisance trips and false fault signals after the CPU is restored to service.

For plants running Modbus Plus networks, the BM85 bridge multiplexer and any SA-85 network interface cards in the communication loop should be tested for signal integrity. Degraded network infrastructure can cause the new CPU to log spurious communication errors, masking the true health of the restored system. Finally, if the control cabinet includes a MODICON 984 operator panel or local HMI, verify that the panel firmware and configured node addresses remain compatible with the replacement CPU’s communication parameters.

Stocking a small buffer inventory of these associated components — power supply modules, I/O modules, network adapters, and backup batteries — alongside the PC-E984-685 CPU is a recognized best practice in industrial spare parts management. It reduces mean time to repair (MTTR) and eliminates the multi-day lead times that can extend an unplanned outage into a production crisis.

Strategic Replacement Solutions

The MODICON 984 platform, while mature, remains in active service across a significant installed base of industrial facilities globally. Many plant operators face a strategic choice: invest in a full control system migration to a modern Schneider Electric Modicon M340 or M580 platform, or extend the operational life of the existing 984 architecture through targeted spare parts procurement and preventive maintenance.

For facilities where a full migration is not economically justified in the near term, sourcing an original PC-E984-685 CPU module is the most cost-effective path to system restoration. An original unit preserves full compatibility with existing ladder logic programs, I/O configurations, Modbus Plus network topology, and operator interface panels — eliminating the re-engineering, re-commissioning, and operator retraining costs associated with platform migration.

The PC-E984-685 is a direct replacement for degraded or failed units of the same part number. It is also a functional upgrade path for facilities currently running lower-specification MODICON 984 CPU variants (such as the PC-E984-265 or PC-E984-485), where the higher memory capacity and I/O handling capability of the 685-class CPU can improve scan time performance and accommodate expanded I/O without rack redesign.

Every unit shipped from TOPNLMS undergoes functional testing prior to dispatch. This includes power-on verification, communication port testing, and visual inspection for physical damage, corrosion, or component anomalies. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence required for critical spare parts purchasing decisions.
