Siemens 6DP1616-8CA Original Industrial Spare IM616 Compatible

Product Overview

Siemens 6DP1616-8CA Original Industrial Spare IM616 Compatible — System Stability & Maintenance Value

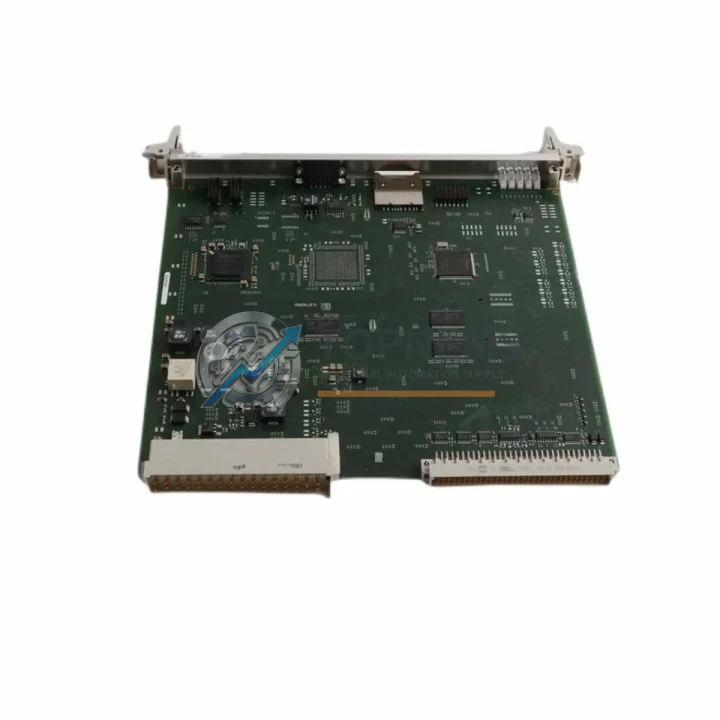

The Siemens 6DP1616-8CA is an original IM616 PROFIBUS DP interface module designed for integration within the SIMATIC TDC / TELEPERM ME / 505 distributed control system architecture. In industrial environments where continuous process uptime is non-negotiable — petrochemical plants, power generation facilities, steel mills, and large-scale manufacturing lines — this module serves as a critical communication bridge between the central controller and field-level I/O devices across the PROFIBUS DP network.

Sourced as an original Siemens spare part, the 6DP1616-8CA is fully compatible with existing IM616-based control cabinets without requiring firmware reconfiguration or hardware adaptation. For maintenance engineers managing aging DCS infrastructure, having a verified, tested replacement unit on the shelf is the single most effective strategy for reducing mean time to repair (MTTR) and protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

When a PROFIBUS communication fault is traced to the 6DP1616-8CA, experienced maintenance teams know that the fault rarely exists in isolation. The IM616 module operates within a tightly coupled control cabinet ecosystem, and a thorough inspection during any planned or unplanned shutdown should extend to the surrounding components that share the same electrical environment.

Start with the PROFIBUS DP cable and connectors — degraded shielding or loose 9-pin D-sub connectors are a leading cause of intermittent communication errors that are often misattributed to the interface module itself. Verify bus termination at both ends of the segment. Next, inspect the 24 V DC power supply module feeding the rack; voltage ripple or marginal output under load can cause the IM616 to reset unexpectedly. Siemens PS307 or equivalent rack power supplies should be load-tested during the same maintenance window.

The CPU module (such as the TDC CPU555 or compatible processor card) should have its firmware version logged and compared against the known-compatible version for the 6DP1616-8CA. Mismatched firmware revisions are a documented source of PROFIBUS initialization failures. While the cabinet is open, check the I/O expansion modules — ET 200M or SM321/SM322 digital I/O modules connected downstream on the PROFIBUS segment — for status LED anomalies that may indicate address conflicts or wiring faults.

Relay output modules and signal isolators in the same control loop should be inspected for contact wear and calibration drift, particularly in high-cycle applications. Terminal blocks and DIN rail assemblies should be re-torqued to manufacturer specification; loose field wiring is a chronic source of intermittent faults in older installations. If the cabinet includes a communications gateway or DP/PA coupler for PROFIBUS PA field instruments, verify that the coupler’s segment voltage and current budget remain within specification after any module replacement.

For facilities running SIMATIC WinCC or STEP 7 SCADA and engineering stations, confirm that the hardware configuration (HW Config) reflects the replacement module’s GSD file and station address before going live. Finally, review the UPS or battery backup unit supplying the control cabinet — a weak UPS that fails to hold voltage during a grid transient is a common root cause of repeated module failures that appear unrelated to power quality.

Proactive procurement of a second 6DP1616-8CA as a cold-standby spare, alongside a spare PROFIBUS DP connector set and a replacement rack backplane fuse module, is the minimum recommended inventory posture for any facility where this module is installed in a critical process loop.

Strategic Replacement Solutions

The 6DP1616-8CA addresses one of the most persistent challenges in legacy DCS maintenance: sourcing a verified original replacement for a module that may no longer be in active production. Substituting with an unverified third-party equivalent risks introducing firmware incompatibilities, reduced EMC performance, and voided system certifications — risks that are unacceptable in safety-instrumented or regulated process environments.

By stocking the original Siemens 6DP1616-8CA, maintenance teams can execute a hot-swap replacement in under 30 minutes without requiring a system re-configuration, provided the replacement module is pre-configured to the correct PROFIBUS station address. This dramatically reduces unplanned downtime compared to sourcing a replacement reactively after a failure event, where lead times from authorized distributors can extend to 8–16 weeks for obsolete Siemens DCS components.

For facilities planning a phased migration from TELEPERM ME or SIMATIC 505 to a modern S7-400 or PCS 7 architecture, maintaining a functional IM616-based system with original spare parts extends the viable operational life of the existing infrastructure by 3–7 years, providing the budget runway needed for a controlled, risk-managed migration rather than a forced emergency replacement.

Every unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch. The 12-month warranty covers all manufacturing defects and confirmed functional failures, with direct technical support available for compatibility verification before purchase.

Support FAQ

Q1: Is the 6DP1616-8CA compatible with both SIMATIC TDC and TELEPERM ME systems?
Yes. The IM616 module family, including the 6DP1616-8CA, was designed for use across the SIMATIC TDC and TELEPERM ME DCS platforms. Compatibility with your specific rack and CPU revision should be verified against the Siemens hardware compatibility matrix or by contacting our technical team before ordering.

Q2: What does the 12-month warranty cover, and how is the module tested before shipment?
Each 6DP1616-8CA unit is powered on and subjected to functional communication testing prior to shipment. The 12-month warranty covers confirmed functional defects under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How quickly can I receive the module, and do you ship internationally?
Standard orders are dispatched within 1–3 business days. International shipping is available to most industrial regions. Express logistics options are available for emergency maintenance situations — contact us directly at [email protected] or +86 18359293191 to arrange priority dispatch.

Q4: Can I verify the PROFIBUS station address configuration before installation?
Yes. The IM616 station address is set via hardware DIP switches on the module face. We recommend confirming the required address from your existing HW Config project in STEP 7 or TDC engineering software before installation. Our technical team can assist with pre-configuration guidance if needed.
