Siemens 6ES7151-1AA03-0AB0 Original Industrial Spare ET 200S Compatible

Product Overview

Siemens 6ES7151-1AA03-0AB0 Original Industrial Spare ET 200S Compatible: Ensuring System Stability in Demanding Industrial Environments

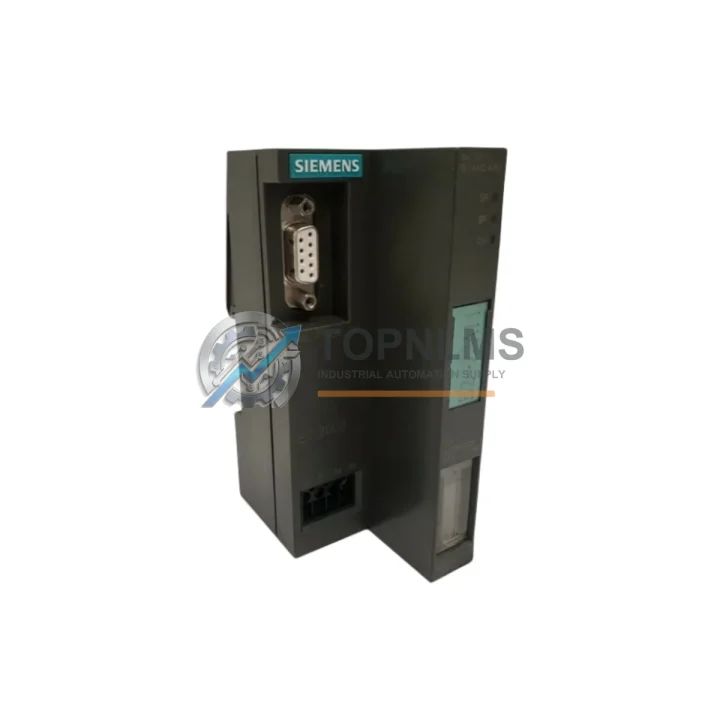

The Siemens 6ES7151-1AA03-0AB0 is the IM 151-1 PROFIBUS DP interface module for the SIMATIC ET 200S distributed I/O system — a cornerstone component in countless factory automation architectures across process industries, automotive manufacturing, and discrete production lines. When this module fails or degrades, the entire ET 200S station loses communication with the PROFIBUS DP master, triggering immediate production stoppages. Sourcing a verified original replacement is not optional — it is a maintenance imperative.

At TOPNLMS, every 6ES7151-1AA03-0AB0 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, this module ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

The 6ES7151-1AA03-0AB0 sits at the heart of the ET 200S station, but a comprehensive maintenance strategy must extend beyond the interface module itself. During any planned inspection or corrective maintenance event involving this module, experienced maintenance engineers routinely evaluate the surrounding components to prevent cascading failures and reduce the risk of repeat downtime.

The 24 V DC power module (such as the 6ES7138-4CA01-0AA0 PM-E power module) that feeds the ET 200S station should be checked for output voltage stability and thermal performance — a degraded power supply is a common root cause of intermittent IM 151-1 communication faults. Alongside this, the terminal modules (e.g., 6ES7193-4CA40-0AA0) that mechanically seat the interface module and I/O modules should be inspected for contact wear and secure DIN rail engagement.

Digital input modules (6ES7131-4BF00-0AA0 series) and digital output modules (6ES7132-4BF00-0AA0 series) within the same ET 200S station are subject to the same environmental stresses as the interface module. Replacing the IM 151-1 without verifying the I/O module status leaves the station vulnerable to secondary failures within weeks of restart. Analog input modules such as the 6ES7134-4FB01-0AB0 should also be tested for signal drift, particularly in high-vibration or thermally variable environments.

For stations integrated into a larger PROFIBUS DP network, the PROFIBUS cable connectors and bus termination resistors at each segment end must be verified. A faulty termination is frequently misdiagnosed as an interface module failure. Similarly, if the DP master is a CP 342-5 or CP 443-5 communications processor mounted in an S7-300 or S7-400 rack, its firmware version and diagnostic buffer should be reviewed during the same maintenance window.

Where the ET 200S station controls motor starters or safety circuits, the associated motor starter modules (e.g., 6ES7138-4DA04-0AB0) and relay output modules should be tested under load. Fuse modules within the station — particularly those protecting 24 V DC circuits — are low-cost, high-impact items that should be part of every spare parts kit alongside the 6ES7151-1AA03-0AB0.

Strategic Replacement Solutions

The 6ES7151-1AA03-0AB0 (firmware version 3, hardware revision 0AB0) is the direct successor to earlier IM 151-1 variants including the 6ES7151-1AA02-0AB0 and 6ES7151-1AA01-0AB0. It maintains full backward compatibility with existing ET 200S station configurations, meaning no hardware reconfiguration or STEP 7 / TIA Portal project modification is required for a like-for-like swap. This makes it the preferred replacement module for aging installations where minimizing engineering intervention during a fault event is critical.

For facilities managing legacy SIMATIC S7-300 or S7-400 systems with long remaining service life expectations, maintaining at least one 6ES7151-1AA03-0AB0 in local stock eliminates the lead-time risk associated with emergency procurement. Mean time to repair (MTTR) for a PROFIBUS DP station fault drops from hours or days — when waiting for parts — to under 30 minutes with a pre-stocked replacement module.

TOPNLMS supplies this module with full pre-shipment electrical testing, original manufacturer packaging where available, and a documented 12-month warranty covering functional defects. Units are dispatched within 1–3 business days from verified stock, with international shipping options available to support global maintenance operations.

Support FAQ

Q1: Is the 6ES7151-1AA03-0AB0 compatible with my existing ET 200S station without reconfiguration?
Yes. The 0AB0 hardware revision is a direct plug-in replacement for all prior IM 151-1 standard variants. No changes to your STEP 7 or TIA Portal hardware configuration are required. The module adopts the existing PROFIBUS DP address set on the station.

Q2: What is covered under the 12-month warranty?
All units are tested for electrical functionality prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is shipped with a test record. Warranty claims are handled directly through TOPNLMS with priority turnaround.

Q3: How should I verify the module is the root cause before ordering a replacement?
Check the PROFIBUS DP master diagnostic buffer for station fault codes. Inspect the 24 V DC supply voltage at the ET 200S power module. Verify PROFIBUS cable integrity and termination at both segment ends. If the station LED shows a BF (Bus Fault) or SF (System Fault) condition after ruling out cable and power issues, the IM 151-1 is the most probable failure point.

Q4: Can I order multiple units for a spare parts inventory program?
Yes. TOPNLMS supports bulk procurement for maintenance departments and MRO inventory programs. Volume pricing is available on request. We recommend holding a minimum of one IM 151-1 module per three ET 200S stations in your facility as a baseline spare parts strategy.
