Siemens 6ES7151-1BA02-0AB0 Replacement for ET 200S IM151-1: Seamless PROFIBUS DP Migration & Upgrade Solution

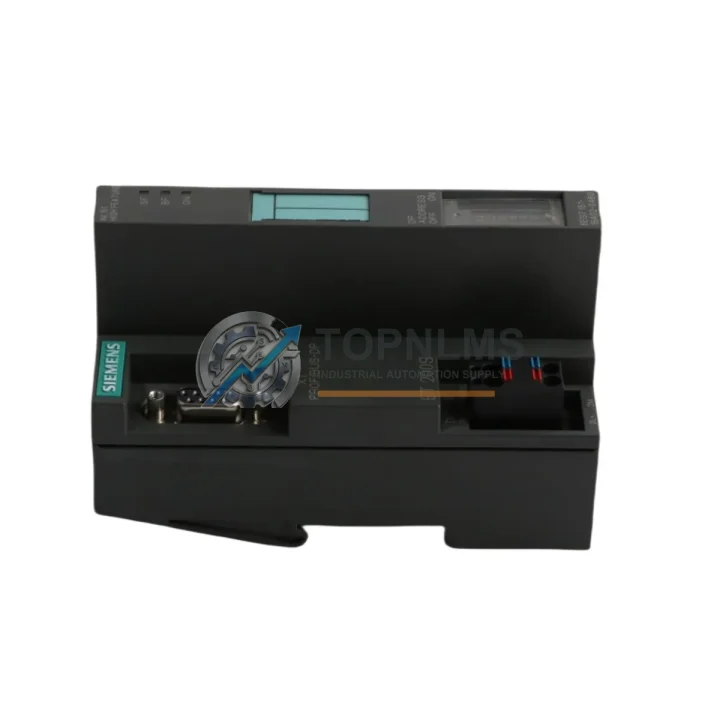

The Siemens 6ES7151-1BA02-0AB0 is the IM151-1 Standard Interface Module for the ET 200S distributed I/O station, designed to connect the ET 200S rack to a PROFIBUS DP master — typically a SIMATIC S7-300, S7-400, or third-party DP master controller. As this module approaches end-of-life and spare stock becomes increasingly scarce, many plant engineers and procurement teams are actively sourcing verified replacement units or planning a structured migration path to maintain system continuity without triggering a full control-system overhaul.

TOPNLMS stocks tested, ready-to-ship units of the 6ES7151-1BA02-0AB0 with a 12-month warranty, supporting both direct drop-in replacement and phased upgrade scenarios. Whether you are maintaining an existing ET 200S installation or planning a migration to a newer distributed I/O architecture, this page provides the technical guidance and procurement assurance you need.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration or replacement of the 6ES7151-1BA02-0AB0 rarely involves the interface module in isolation. In practice, field engineers replacing a failed or aging IM151-1 Standard module will simultaneously audit the surrounding station components to prevent repeat downtime events.

The 6ES7138-4CA01-0AA0 PM-E Power Module is the most common companion component — it supplies 24 V DC to the ET 200S backplane and is typically replaced alongside the interface module when the station has been in service for more than five years. Similarly, the 6ES7193-4CA30-0AA0 TM-IM/IM Terminal Module forms the physical mounting base for the IM151-1 and should be inspected for contact wear during any interface module swap.

On the I/O side, digital input modules such as the 6ES7131-4BF00-0AA0 4DI 24VDC HF and digital output modules like the 6ES7132-4BF00-0AA0 4DO 24VDC/0.5A HF are the most widely deployed I/O cards in ET 200S stations running on PROFIBUS DP. If the station has analog measurement loops, the 6ES7134-4GB11-0AB0 2AI U ST Analog Input Module is a frequent co-replacement item, particularly in process control and temperature monitoring applications.

For sites where the PROFIBUS DP segment itself is being restructured — for example, when consolidating multiple DP segments onto a single master or extending cable runs — the 6ES7972-0BB52-0XA0 PROFIBUS DP Bus Connector 90° and 6GK1500-0FC10 RS485 Repeater are standard infrastructure components that support reliable signal integrity across longer cable distances or higher node counts.

In modernization projects where the plant is transitioning from PROFIBUS DP to PROFINET, the 6GK1415-2AA10 DP/PN Coupler provides a transparent protocol bridge, allowing the existing ET 200S station with the IM151-1 to remain operational on the PROFIBUS segment while the upstream controller migrates to a PROFINET-based CPU such as the S7-1500 series. This approach eliminates the need for a simultaneous cutover of all field devices, significantly reducing migration risk and unplanned downtime.

For programming and diagnostics during commissioning or fault-finding, the 6ES7972-0CB20-0XA0 PC Adapter USB A2 remains the standard tool for connecting a STEP 7 or TIA Portal engineering station to the PROFIBUS DP segment for online monitoring, forcing I/O states, and verifying station configuration after module replacement.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7151-1BA02-0AB0 without modifying the STEP 7 hardware configuration?
A: In most cases, yes. The -0AB0 hardware revision is compatible with the same GSD file and STEP 7 hardware catalog entry as earlier revisions. After physical replacement, cycle power to the ET 200S station and verify that the DP master re-establishes communication. If the STEP 7 project was configured with a specific hardware revision that does not match, a minor hardware configuration update and download may be required — this is a non-intrusive change that does not affect the user program.

Q: Is the wiring to the I/O terminal modules affected by the interface module replacement?
A: No. The IM151-1 Standard module connects only to the terminal module backplane via the integrated connector. All field wiring terminates on the individual I/O terminal modules, which remain undisturbed during the interface module swap. This makes the replacement a low-risk, single-technician task that can typically be completed within 30 minutes.

Q: What PROFIBUS DP baud rates are supported?
A: The 6ES7151-1BA02-0AB0 supports all standard PROFIBUS DP baud rates from 9.6 kbit/s up to 12 Mbit/s. The baud rate is automatically detected from the DP master — no manual configuration is required on the interface module itself.

Q: Can this module be used with a non-Siemens PROFIBUS DP master?
A: Yes. The module is fully compliant with the IEC 61158 PROFIBUS DP standard and can be integrated with any certified DP master using the published GSD file. It has been successfully deployed with DP masters from ABB, Schneider Electric, Rockwell Automation, and Beckhoff, among others.

Q: What is the physical space requirement in the control cabinet?
A: The IM151-1 Standard module occupies a single slot on the ET 200S terminal module rail. No additional DIN rail space is required beyond the existing station footprint. The module height and depth are identical to the unit being replaced, so no cabinet re-layout or cable management changes are needed.

Q: Is there a direct upgrade path if we want to move to PROFINET in the future?
A: Yes. The recommended migration path is to replace the IM151-1 Standard with the ET 200SP IM155-6 PN ST interface module, which supports PROFINET IO. This requires new ET 200SP terminal bases and I/O modules, but the field wiring can often be reused with appropriate terminal adapters. Alternatively, the DP/PN Coupler approach described above allows a phased migration without replacing field devices.

Warranty Assurance

Every 6ES7151-1BA02-0AB0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes functional power-on testing, PROFIBUS DP communication verification, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a DOA (Dead on Arrival) or in-warranty failure, TOPNLMS provides a replacement unit dispatch within 2 business days of fault confirmation, with return logistics support arranged at no additional cost to the buyer. Our after-sales response team is reachable via email and phone during business hours (UTC+8), with a committed first-response SLA of 24 hours for warranty claims.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders of 5 units or more qualify for priority allocation from our bonded warehouse stock in Xiamen, with same-week dispatch available for in-stock quantities.

We understand that unplanned downtime in industrial control systems carries significant operational and financial consequences. Our procurement assurance model is built around minimizing your exposure: verified stock, documented testing, fast dispatch, and a warranty that covers the full replacement cycle — not just the component cost.
