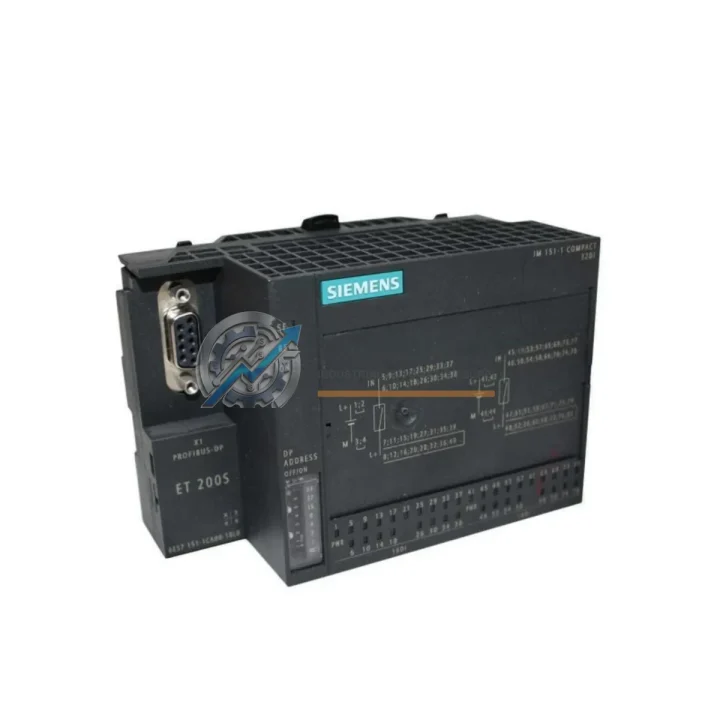

Siemens 6ES7151-1CA00-1BL0 Original Industrial Spare ET200S Compatible

Product Overview

Siemens 6ES7151-1CA00-1BL0 Original Industrial Spare ET200S Compatible: System Stability & Industrial Spare Parts Maintenance Value

The Siemens 6ES7151-1CA00-1BL0 is the IM 151-1 Standard Interface Module for the ET 200S distributed I/O system, designed to operate as a PROFIBUS DP slave. In modern manufacturing environments — from automotive assembly lines to chemical processing plants — this interface module serves as the critical communication bridge between the PROFIBUS DP master (typically a Siemens S7-300 or S7-400 PLC) and the distributed I/O station on the plant floor. Its role in maintaining uninterrupted data exchange between the controller and field devices makes it one of the highest-priority spare parts in any preventive maintenance program.

When this module fails or degrades, the entire ET 200S station loses communication with the PLC, resulting in an immediate process shutdown. Downtime in industrial environments is never just an inconvenience — it translates directly into lost production, emergency labor costs, and potential safety risks. Stocking a verified original 6ES7151-1CA00-1BL0 as a ready-to-deploy spare is one of the most cost-effective risk mitigation strategies available to maintenance engineers and plant managers.

Critical Technical Specs Table

Preventive Maintenance Strategy

A well-structured preventive maintenance program for an ET 200S station goes far beyond replacing the interface module in isolation. The 6ES7151-1CA00-1BL0 sits at the top of the station’s communication hierarchy, but its performance is directly dependent on the health of every component in the same control cabinet and PROFIBUS segment.

During scheduled maintenance shutdowns, experienced maintenance teams use the replacement of the IM 151-1 as an opportunity to audit the entire ET 200S rack. The 6ES7132-4HB01-0AB0 4-channel digital output module and 6ES7131-4BF00-0AA0 8-channel digital input module are among the most frequently replaced electronic modules in the same station — their terminal modules and spring-loaded connectors should be inspected for oxidation and loose contacts at the same time. If the station includes analog signal processing, the 6ES7134-4FB01-0AB0 analog input module and 6ES7135-4GB01-0AB0 analog output module warrant close attention, particularly in environments with high ambient temperature or vibration.

The PROFIBUS DP cable and bus connector — such as the 6ES7972-0BB52-0XA0 PROFIBUS connector with 90° cable exit — should be inspected for insulation damage, proper termination resistor settings, and secure seating at both the IM 151-1 port and the upstream DP master. A degraded bus connector is a common root cause of intermittent communication faults that are often misdiagnosed as interface module failure. Alongside the bus connector, the 6GK1500-0FC10 PROFIBUS bus terminal or equivalent repeater units in long-distance segments should be verified for correct termination.

Power supply integrity is equally critical. The 6ES7138-4CA01-0AA0 PM-E power module within the ET 200S station provides the 24 VDC supply to the electronic modules — a failing PM-E will cause erratic module behavior that mimics interface module faults. Checking the PM-E’s output voltage under load and inspecting its fuse module (6ES7138-4FA00-0AA0) should be standard practice during any IM 151-1 replacement job. If the control cabinet also houses a Siemens SITOP power supply such as the 6EP1334-2BA20, its output ripple and load regulation should be verified with a multimeter before the station is returned to service.

For stations operating in environments with significant electrical noise — near variable frequency drives, large contactors, or welding equipment — signal isolators and surge protection devices on the PROFIBUS segment and 24 VDC supply lines are worth inspecting. Replacing the IM 151-1 without addressing upstream noise sources will result in premature failure of the new module.

Strategic Replacement Solutions

The 6ES7151-1CA00-1BL0 has been in production for many years and remains the standard interface module for ET 200S PROFIBUS DP stations. However, many plants operating legacy S7-300 systems are now facing the challenge of sourcing original spare parts as Siemens transitions its portfolio toward the ET 200SP and PROFINET-based architectures.

Sourcing a verified original 6ES7151-1CA00-1BL0 from a reliable industrial spare parts supplier is the fastest and lowest-risk path to restoring a failed ET 200S station. Unlike a full system migration to ET 200SP — which requires new terminal modules, new GSD files, updated PLC hardware configuration, and potentially new PROFINET infrastructure — a like-for-like replacement of the IM 151-1 can be completed in under 30 minutes by a qualified technician, with zero changes to the existing PLC program or network topology.

For plants managing aging PROFIBUS infrastructure, maintaining a minimum stock of one spare 6ES7151-1CA00-1BL0 per production line — or per critical ET 200S station — is a widely adopted best practice. The cost of a single unplanned production stoppage typically exceeds the cost of maintaining a full spare parts kit by an order of magnitude. When combined with spare electronic modules, a spare PM-E power module, and a set of PROFIBUS connectors, the 6ES7151-1CA00-1BL0 forms the core of a robust ET 200S emergency spare kit that can restore any station to full operation within one shift.

All units supplied by TOPNLMS are sourced from verified channels, individually tested for communication integrity and diagnostic function prior to shipment, and covered by a 12-month warranty. Each module is shipped in anti-static packaging with full traceability documentation.

Support FAQ

Q1: Is this a genuine original Siemens 6ES7151-1CA00-1BL0, or a compatible replacement?
This is a genuine original Siemens 6ES7151-1CA00-1BL0 IM 151-1 Standard Interface Module. We do not supply counterfeit, refurbished-as-new, or third-party compatible substitutes. Each unit is individually tested before shipment and ships with a 12-month warranty.

Q2: How do I verify compatibility with my existing ET 200S station before ordering?
The 6ES7151-1CA00-1BL0 is compatible with all standard ET 200S PROFIBUS DP stations. To confirm compatibility, check your existing IM 151-1 label for the exact part number and firmware version. If your station uses the IM 151-1 FO (fiber optic) or IM 151-1 High Feature variant, a different part number is required. Contact us with your station’s GSD file or hardware configuration export and we will confirm compatibility before shipment.

Q3: What is the typical lead time and how is the module tested before shipment?
In-stock units ship within 1–3 business days. Each 6ES7151-1CA00-1BL0 is powered up and tested for PROFIBUS DP communication, diagnostic response, and backplane bus integrity before packaging. A test report is available upon request. Express shipping options are available for emergency breakdown situations.

Q4: What is covered under the 12-month warranty, and what is the claims process?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund within the warranty period.
