Siemens 6DD1681-0GK0 Replacement for SIMADYN D

Product Overview

Siemens 6DD1681-0GK0 Replacement for SIMADYN D: Smooth Migration from Legacy SINEC H1 Systems

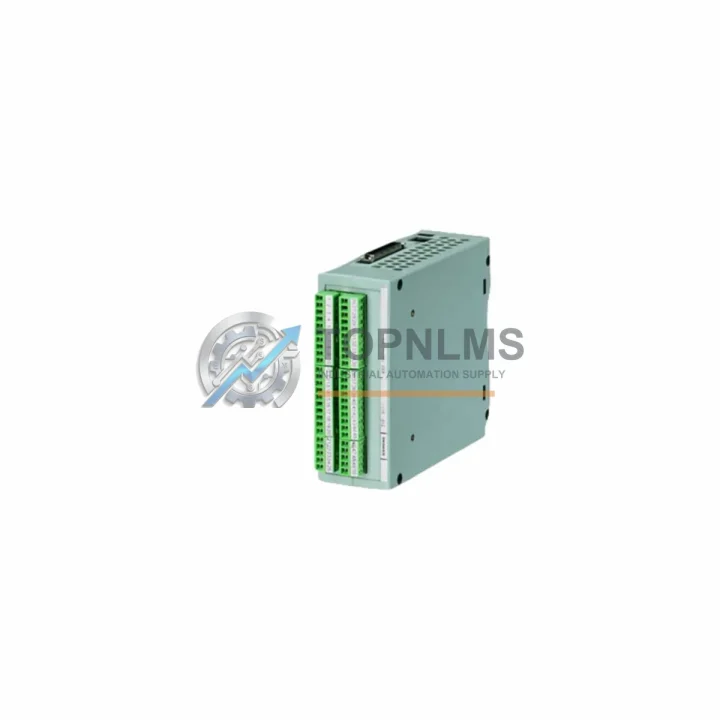

The Siemens 6DD1681-0GK0 is the SINEC H1 Interface Module designed for the SIMADYN D digital drive and control system platform. As SIMADYN D installations age and OEM support contracts expire, plant engineers and procurement teams face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing wiring, rack architecture, communication protocols, and control logic — without triggering a full system overhaul.

At TOPNLMS, we stock the 6DD1681-0GK0 as a direct drop-in replacement for failed or end-of-life units. Each module is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned upgrade cycle or responding to an unplanned shutdown, our team can support fast turnaround from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMADYN D migration rarely involves a single module swap. In practice, the 6DD1681-0GK0 is typically replaced as part of a broader system stabilization effort that may also involve adjacent components within the same rack or control cabinet.

When the SINEC H1 interface module fails or is flagged for replacement, engineers often simultaneously audit the 6DD1660-0AB0 CPU module and the 6DD1607-0AA0 memory module, both of which share the same SIMADYN D backplane and are subject to similar aging profiles. If the system communicates upstream with a Siemens S5-115U or S5-135U PLC via SINEC H1, the network segment itself may require attention — including the associated 6GK1541-1AA00 SINEC H1 CP module installed in the S5 rack.

For sites transitioning toward a more modern architecture, the 6DD1681-0GK0 can serve as a bridge module during a phased migration to SIMATIC S7-400 or SIMATIC S7-300 platforms, where CP 443-1 or CP 343-1 Industrial Ethernet communication processors handle the equivalent network role. During such transitions, 6ES7 407-0DA02-0AA0 power supply modules and 6ES7 390-1AE80-0AA0 DIN rail mounting hardware are commonly procured alongside the interface module to support the expanded rack configuration.

In drive-intensive applications where SIMADYN D controls SIMOREG DC Master or MASTERDRIVES units, the interface module’s SINEC H1 link is critical for setpoint and status word exchange. Replacement of the 6DD1681-0GK0 in these environments should be coordinated with a check of the 6SE7090-0XX84-0AB0 CUVC control board and associated T400 technology board to ensure the full drive communication chain is intact post-swap.

Terminal modules, signal isolators, and I/O marshalling components within the same cabinet — such as 6ES5 700-series analog input modules or third-party signal conditioners — should also be verified for compatibility if the SINEC H1 segment topology is being reconfigured during the replacement process.

Retrofit Guidance FAQ

Q: Will the 6DD1681-0GK0 work with my existing SINEC H1 network segment without reconfiguration?
A: Yes. The module uses the same SINEC H1 protocol stack and MAC-layer addressing as the original. No network reconfiguration is required for a like-for-like swap. Verify the station address DIP switch settings match your original module before powering up.

Q: Do I need to modify my STRUC G application program after replacing this module?
A: No program changes are required for a direct replacement. The module’s function block interface and I/O mapping remain identical. If you are migrating to a different platform (e.g., S7-400 with CP 443-1), a program conversion using STEP 7 will be necessary.

Q: Is the front connector from the old module reusable?
A: Yes. The SIMADYN D front connector is a separate component and is fully reusable. Simply transfer the wired connector from the old module to the replacement unit. No rewiring is needed.

Q: Will this module fit in my existing CS7 or CS12 rack without mechanical modification?
A: Yes. The 6DD1681-0GK0 uses the standard SIMADYN D single-width module form factor and slots directly into any compatible rack position. No bracket, adapter, or cabinet modification is required.

Q: What if my system uses both SINEC H1 and PROFIBUS DP simultaneously?
A: The 6DD1681-0GK0 handles the SINEC H1 segment only. PROFIBUS DP communication in SIMADYN D is managed by a separate DP interface module (e.g., 6DD1607-series). Both modules can coexist in the same rack without conflict.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power up the rack and observe the module’s LED status indicators. A steady green RUN LED with no fault LEDs active indicates normal operation. Use your SINEC H1 network management tool or STRUC G online diagnostics to confirm the station is visible on the network segment.

Warranty Assurance

Every Siemens 6DD1681-0GK0 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a visual and functional pre-shipment inspection to verify physical integrity, connector condition, and board-level cleanliness. Modules showing signs of damage, corrosion, or component failure are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our team at [email protected] or +86 18359293191, describe the fault symptom, and we will arrange a replacement dispatch or credit resolution within a commercially reasonable timeframe. We do not require the customer to ship the defective unit back before initiating a replacement in most cases.

Our procurement guarantee covers: verified sourcing from authorized or traceable supply channels, pre-shipment inspection documentation available on request, export packaging suitable for international air and sea freight, and full after-sales support from our technical team for installation and commissioning queries.

For urgent plant-down situations, please contact us directly by phone to discuss priority dispatch options from our Xiamen stock.
