Schroff 23000-015 Original Industrial Spare 19-Inch Subrack Compatible

Product Overview

Schroff 23000-015 Original Industrial Spare 19-Inch Subrack Compatible: System Stability and Industrial Spare Parts Maintenance Value

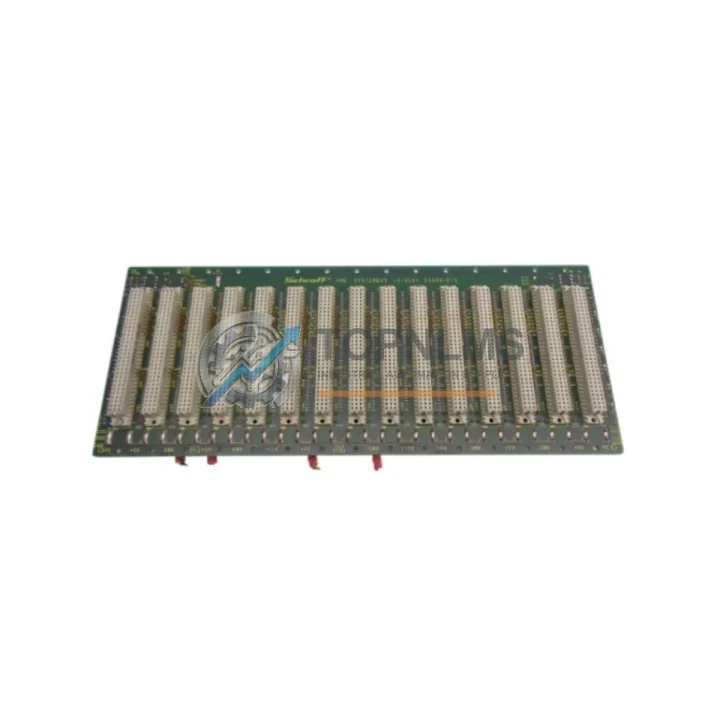

The Schroff 23000-015 is an original backplane board engineered for the 19-Inch Subrack Series industrial enclosure systems manufactured by Schroff (nVent), Germany. In modern industrial automation environments — from automotive assembly lines to chemical process control facilities — the structural and electrical integrity of the subrack backplane is foundational to system uptime. When this component fails or degrades, the entire control cabinet can become inoperable, triggering unplanned downtime that costs far more than a proactive spare parts strategy ever would.

Sourcing an original Schroff 23000-015 backplane board ensures that your 19-Inch subrack enclosure maintains its original mechanical tolerances, bus connectivity, and grounding integrity — critical factors for signal reliability in PLC, DCS, and distributed I/O architectures. Unlike aftermarket alternatives, the original part guarantees compliance with IEC 60297 and DIN 41494 mechanical standards and preserves the EMC shielding performance of the enclosure system. TOPNLMS supplies this component with full traceability, pre-shipment functional testing, and a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a maintenance team schedules a control cabinet inspection or responds to an unplanned shutdown, the backplane board is rarely the only component that requires attention. The Schroff 23000-015 backplane interfaces directly with multiple subsystems, and a thorough preventive maintenance cycle should address the entire electrical and mechanical ecosystem of the subrack enclosure.

During a scheduled inspection, technicians should simultaneously evaluate the Schroff power supply modules mounted within the same subrack — power rail degradation is a leading cause of backplane bus errors and intermittent card faults. The card guide rails and ejector levers (Schroff 24560 series or equivalent) should be checked for wear, as damaged guides can cause misalignment that stresses backplane connectors over time. If the subrack houses Siemens SIMATIC S7-300 or S7-400 CPU modules, the bus connectors on those modules should be inspected alongside the backplane to rule out contact resistance issues that mimic backplane failure.

For facilities running Siemens ET 200M distributed I/O systems or Beckhoff EtherCAT I/O terminals within the same control cabinet, it is advisable to verify the integrity of the PROFIBUS DP or PROFINET communication cables routed through the enclosure. Damaged cable shielding or loose M12 connectors can introduce noise that manifests as backplane communication errors, making the backplane appear faulty when the root cause lies in the cabling infrastructure.

The terminal blocks and DIN rail assemblies — such as Phoenix Contact CLIPLINE or Weidmüller OMNIMATE series — within the same cabinet should be torque-checked during the same maintenance window. Loose terminals cause voltage drops that corrupt I/O signals and trigger false alarms on the PLC rack. Similarly, 24VDC SITOP power supply units feeding the subrack should be load-tested to confirm stable voltage delivery within tolerance — a degraded power supply is frequently misdiagnosed as a backplane or CPU fault.

If the control system includes signal isolators or analog input modules — such as Pepperl+Fuchs KFD series isolators or Siemens SM 331 analog input modules — these should be calibrated and verified during the same outage window. Backplane replacement is an ideal opportunity to perform a full rack-level audit, reducing the probability of a secondary failure shortly after the primary repair is completed. Finally, inspect the subrack fan tray units: thermal management is critical for backplane longevity, and a failed fan accelerates connector oxidation and PCB degradation significantly.

Strategic Replacement Solutions

The Schroff 23000-015 is a direct original replacement for aging backplane boards in legacy 19-Inch subrack installations. Many industrial facilities continue to operate control systems built in the 1990s and 2000s that rely on Schroff subrack infrastructure. Rather than undertaking a full system migration — which carries significant engineering cost, revalidation effort, and production risk — sourcing original spare backplane boards is the most cost-effective strategy for extending the operational life of these systems by 5 to 10 additional years.

Original Schroff backplane boards maintain full mechanical and electrical compatibility with existing card populations, preserving the investment in installed Eurocard-format modules, VME boards, and proprietary industrial cards. There is no need for firmware updates, re-parameterization, or system revalidation when replacing like-for-like with an original part. This dramatically reduces the mean time to repair (MTTR) during an unplanned outage — a technician can swap the backplane, reseat the cards, and restore production within hours rather than days.

For facilities managing multiple subrack enclosures across different production lines or buildings, maintaining a strategic buffer stock of Schroff 23000-015 backplane boards is a recognized best practice in industrial spare parts management. The carrying cost of one or two spare units is negligible compared to the cost of a single production stoppage. TOPNLMS supplies original Schroff components with full traceability, pre-shipment functional testing, and a 12-month warranty — giving procurement and maintenance teams the confidence to hold stock without risk.
