NI PXI-1045 Replacement/Upgrade Solution for PXI Series

Product Overview

NI PXI-1045 Replacement/Upgrade Solution for PXI Series: Seamless Transition from Legacy Chassis

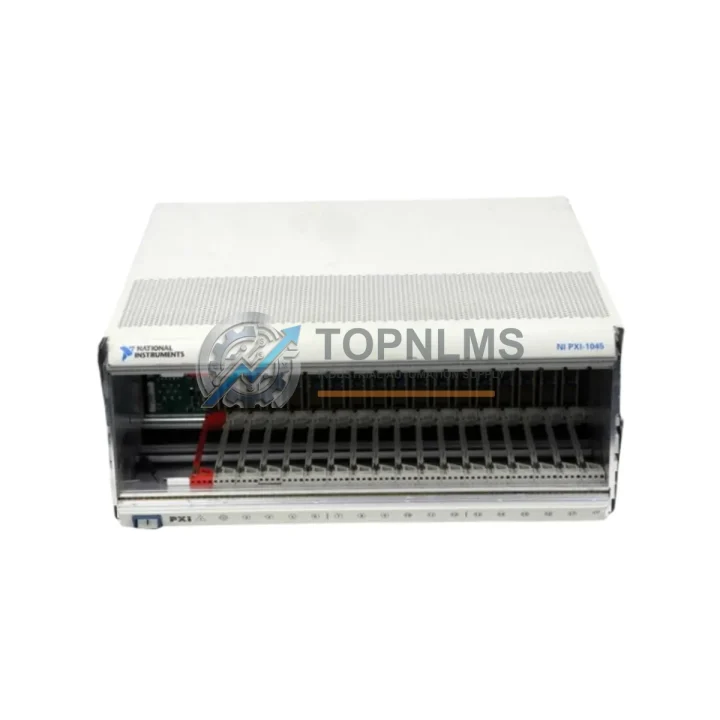

The NI PXI-1045 is an 18-slot PXI chassis manufactured by National Instruments, widely deployed across automated test and measurement systems, industrial control platforms, and defense-grade instrumentation environments. As this model approaches or has reached end-of-life status in many installed bases, engineering teams face the critical challenge of sourcing a verified replacement that preserves system continuity without requiring a full platform redesign.

TOPNLMS supplies the NI PXI-1045 (SKU: PXI-1045) as a direct replacement and upgrade solution for facilities currently operating legacy PXI-based systems. Whether your existing chassis has failed, is approaching scheduled maintenance, or your procurement team is building a strategic spare inventory, this unit ships fully tested and ready for immediate rack integration.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a failed or obsolete PXI chassis involves more than swapping the enclosure. A successful retrofit requires careful coordination of the modules, cabling, host interface, and software configuration that surround the chassis. The NI PXI-1045 is designed to slot into existing PXI system architectures with minimal disruption.

In most migration scenarios, the chassis replacement is performed alongside a review of the NI MXI-4 remote control interface or the NI PCIe-8361 MXI-Express host adapter, which links the PXI chassis to the host PC. If the existing MXI cable or host card is aged, replacing it concurrently with the chassis eliminates a common source of intermittent communication faults post-installation.

Instrumentation modules already installed in the legacy chassis — such as the NI PXI-6251 multifunction DAQ module, NI PXI-5122 digitizer, or NI PXI-4110 programmable DC power supply — transfer directly into the PXI-1045 without firmware changes, provided the NI-DAQmx or NI-VISA driver stack is current. Engineers should verify slot mapping in NI MAX (Measurement & Automation Explorer) after physical reinstallation to confirm resource names are preserved.

For systems that also include serial or GPIB instrument control, the NI PXI-8430 serial interface module and NI PXI-GPIB controller are fully compatible with the PXI-1045 backplane and require no reconfiguration beyond slot reassignment. Timing and synchronization modules such as the NI PXI-6682 timing and synchronization module also retain their trigger routing and clock distribution functions across the 18-slot backplane without modification.

Where the legacy system used an older chassis with fewer slots, the PXI-1045’s 17 peripheral slots provide headroom to add new measurement channels or communication interfaces during the same maintenance window — reducing future downtime by consolidating the upgrade cycle.

Retrofit Guidance FAQ

Q: Will my existing PXI modules physically fit in the PXI-1045?
A: Yes. The PXI-1045 accepts all standard 3U PXI and CompactPCI peripheral modules. Modules from the NI PXI-6000, PXI-5000, PXI-4000, and PXI-8000 series are all mechanically and electrically compatible.

Q: Do I need to reconfigure my NI-DAQmx tasks or LabVIEW VIs after replacing the chassis?
A: In most cases, no. If the host adapter (MXI-4 or PCIe-8361) and module slot positions are preserved, NI MAX will recognize the system with the same resource names. A forced rescan in NI MAX is recommended after power-up to confirm all modules are enumerated correctly.

Q: Is the power supply compatible with my facility’s AC input?
A: The integrated power supply accepts 100–240 VAC at 50/60 Hz, making it compatible with both domestic Chinese industrial power standards and international facility voltages without any hardware modification.

Q: How does the PXI-1045 handle trigger routing compared to my old chassis?
A: The PXI-1045 implements the full PXI trigger bus (PXI_Trig0–7) and PXI star trigger line across all 18 slots, consistent with the PXI specification. Trigger routing configured in software via NI-DAQmx or NI-Sync will function identically after migration.

Q: What is the physical installation space requirement?
A: The PXI-1045 occupies 7U of vertical rack space in a standard 19-inch equipment rack. If your existing rack has the same 7U allocation for the legacy chassis, no structural changes are required.

Q: Can I use this chassis with a non-NI host PC running third-party software?
A: Yes, provided the host adapter (MXI-4 or MXI-Express) is installed and the appropriate NI driver stack (NI-VISA, NI-DAQmx) is loaded. The chassis itself is hardware-agnostic at the backplane level.

Warranty Assurance

Every NI PXI-1045 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each chassis undergoes a functional power-on test and visual inspection to verify backplane integrity, cooling fan operation, and power supply output stability.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund based on the customer’s preference. Our after-sales response target is within 24 business hours for warranty claims submitted via email or phone. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize system downtime at the customer’s facility.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation is available upon request for international orders. Units are packed in anti-static foam with outer carton protection rated for international freight handling.

TOPNLMS maintains stock of the NI PXI-1045 and related PXI system components to support both emergency replacement orders and planned maintenance procurement cycles. Lead time for in-stock units is typically 3–7 business days to most international destinations.
