Applied Materials 0100-AE108 Replacement for SAM Series

Product Overview

Applied Materials 0100-AE108 Replacement for SAM Series: Seamless Transition & Legacy System Compatibility

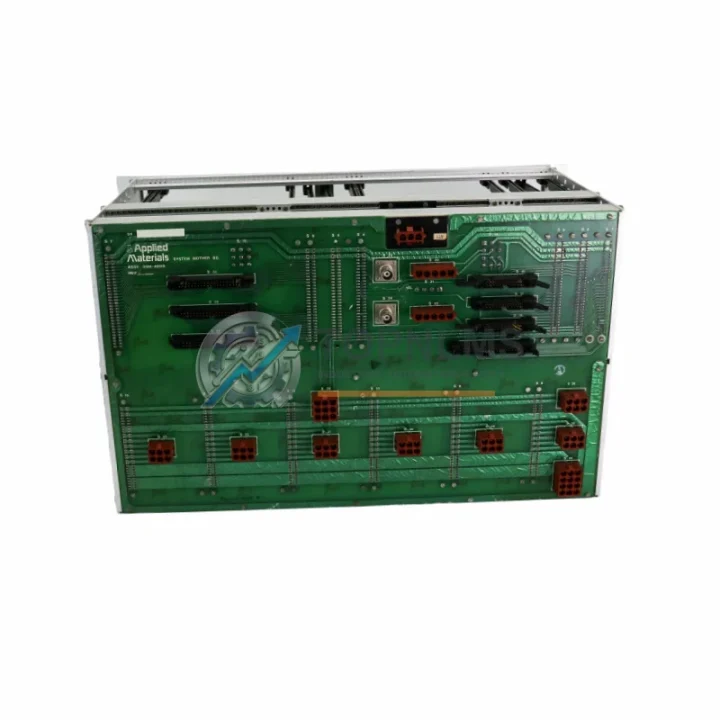

The Applied Materials 0100-AE108 SAM Series Cardcage Assembly is a critical structural and electrical backbone component used in semiconductor process equipment platforms. As Applied Materials progressively phases out legacy SAM-architecture hardware, facilities running older CVD, PVD, or etch tool configurations face increasing pressure to source verified replacement cardcage assemblies before OEM support windows close entirely. This page is designed to help process engineers, equipment managers, and procurement teams evaluate the 0100-AE108 as a direct replacement or upgrade path — covering wiring compatibility, communication architecture, physical installation constraints, and system-level integration considerations.

The 0100-AE108 cardcage assembly serves as the central mounting and interconnect chassis for SAM-series I/O boards, controller cards, and communication modules. When replacing a failed or end-of-life cardcage in an existing tool, the primary concerns are backplane connector alignment, card slot count, power rail compatibility (typically +5 V, ±12 V, and +24 V DC), and the physical form factor relative to the equipment bay. The 0100-AE108 maintains dimensional compatibility with the original SAM platform rack envelope, allowing drop-in replacement without modification to the surrounding enclosure or cable harness routing.

In practice, field engineers replacing a degraded cardcage assembly will also need to inspect and potentially replace associated components that share the same service interval. The 0100-09769 backplane interface board and 0100-76028 power distribution board are commonly replaced in the same maintenance window, as both are mechanically integrated with the cardcage and subject to the same thermal and vibration stress cycles. Similarly, the 0100-35007 SAM controller card and 0100-21229 analog I/O board should be bench-tested before reinstallation into the new cardcage to confirm they are not the root cause of the original failure.

From a communication protocol standpoint, the SAM platform uses a proprietary serial backplane bus for inter-card communication, with external connectivity typically routed through 0100-01407-series ribbon cable assemblies to the host VME or PCI controller chassis. When migrating from an older SAM revision to a current-production 0100-AE108 assembly, verify that the backplane bus termination resistor packs are correctly populated for your specific card complement — incorrect termination is a common source of intermittent communication faults post-replacement. If your facility is also upgrading the host controller from a legacy VME backplane to a modern PCI-based architecture, the 0100-76302 interface transition board may be required to bridge the two bus standards without re-engineering the wiring harness.

Physical installation of the 0100-AE108 requires removal of the existing cardcage from the equipment bay, transfer of all installed cards to the new assembly in the same slot positions (unless a card map revision is being applied), and reconnection of the DC power harness, chassis ground strap, and any external I/O ribbon cables. The cardcage weighs approximately 2.6 kg unloaded; with a full complement of SAM I/O and controller cards, total assembly weight can approach 6–8 kg, so two-person handling is recommended during installation to avoid connector damage. Torque specifications for the captive mounting screws follow Applied Materials standard M4 fastener guidelines.

For facilities executing a broader tool modernization program — for example, migrating from SAM-based process control to a current-generation Applied Materials Centura or Producer platform architecture — the 0100-AE108 can serve as an interim solution to extend the operational life of existing tools while the capital planning and qualification process for new equipment is completed. In this context, sourcing a verified replacement cardcage assembly with documented test history is a lower-risk approach than attempting to repair a failed assembly in-house, particularly when the tool is on a critical production schedule.

Our inventory of the 0100-AE108 is sourced from decommissioned Applied Materials tools and authorized surplus channels, with each unit undergoing incoming inspection for physical damage, backplane connector integrity, card guide alignment, and power rail continuity before being listed as available. Units are shipped from our Xiamen warehouse with ESD-protective packaging, foam-lined outer cartons, and full documentation including inspection records and a 12-month replacement warranty certificate.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful cardcage replacement rarely involves the cardcage alone. In most SAM-platform retrofit projects, the 0100-AE108 is ordered alongside a set of supporting components to ensure the rebuilt assembly is fully functional before the tool is returned to production. The 0100-09769 backplane interface board is the most frequently co-ordered item, as it provides the electrical bridge between the cardcage backplane and the external controller bus — a unit that has often accumulated the same service hours as the cardcage itself. The 0100-76028 power distribution board is similarly recommended for inspection and replacement, given its role in conditioning and distributing the DC power rails to all installed cards.

For facilities that are also refreshing their I/O complement, the 0100-21229 analog I/O board and 0100-35007 SAM controller card are natural additions to the replacement BOM. If the tool’s communication link to the fab host system has been intermittent, replacing the 0100-01407 ribbon cable assembly at the same time eliminates a common failure point without adding significant cost or installation time. In cases where the host controller is being upgraded from VME to PCI architecture, the 0100-76302 interface transition board allows the existing SAM cardcage wiring to be retained, avoiding a full harness re-pull.

For broader platform modernization projects, facilities sometimes pair the cardcage replacement with an upgrade of the HMI workstation running the Applied Materials process recipe software, or with the addition of a signal isolation module between the SAM I/O cards and field instrumentation to improve noise immunity in high-RF process environments. Our team can advise on compatible signal isolator specifications based on your specific tool configuration and process chemistry.

Retrofit Guidance FAQ

Q: Do I need to re-terminate any wiring when installing the 0100-AE108?
A: No. The 0100-AE108 uses the same connector positions and pinout as the original SAM cardcage. All existing wiring harnesses, ribbon cables, and ground straps connect directly without modification. Verify that the DC power harness connector locking tabs are fully engaged after installation.

Q: Will my existing SAM controller cards and I/O boards fit in the new cardcage?
A: Yes. The card slot pitch, guide rail dimensions, and backplane connector positions are identical to the original SAM cardcage specification. Transfer cards in the same slot positions as documented in your tool’s card map to avoid bus address conflicts.

Q: Is any programming or firmware update required after replacing the cardcage?
A: The cardcage assembly itself contains no programmable firmware. No software changes are required as a result of the cardcage replacement. If you are also replacing the SAM controller card (0100-35007), verify that the replacement card’s firmware revision matches your process recipe requirements before returning the tool to production.

Q: What communication protocols does the SAM platform support?
A: The SAM platform uses a proprietary Applied Materials serial backplane bus for internal card-to-card communication. External communication to the fab host system is typically via RS-232 or SECS/GEM over Ethernet, depending on the tool generation and host MES configuration. The 0100-AE108 cardcage does not alter the external communication interface.

Q: How do I verify the replacement cardcage is functioning correctly before returning the tool to production?
A: After installation, power up the tool in diagnostic mode and verify that all installed cards are recognized by the SAM controller. Check the system event log for any backplane communication errors. Run a full I/O checkout sequence per the Applied Materials tool qualification procedure before resuming process runs.

Q: Can the 0100-AE108 be used in a different Applied Materials tool model?
A: The 0100-AE108 is designed for the SAM platform architecture. Compatibility with other Applied Materials tool families (e.g., Centura, Endura, Producer) depends on whether those tools use the SAM cardcage form factor. Contact us with your tool model and configuration details for a compatibility assessment.

Warranty Assurance

Every 0100-AE108 Cardcage Assembly shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes physical damage assessment, backplane connector pin integrity check, card guide alignment verification, and DC power rail continuity testing. Units that do not pass all inspection criteria are not listed for sale.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Verified warranty claims are resolved by replacement shipment — we do not require the customer to wait for repair turnaround. Replacement units are drawn from inspected stock and shipped with the same ESD-protective and foam-lined packaging as the original order.

For procurement teams requiring documentation, we can provide inspection records, test reports, and warranty certificates in PDF format upon request. All orders are processed with full commercial invoice and packing list documentation suitable for customs clearance in major import markets. Lead time from order confirmation to shipment is typically 1–3 business days for in-stock units.

For volume orders, spare parts program inquiries, or tool-level BOM support, contact our technical sales team directly.
