SHARP JW-28KB Replacement Upgrade Solution for JW Series

Product Overview

SHARP JW-28KB Replacement & Upgrade Solution for JW Series: Smooth Migration from Legacy Backplane Systems

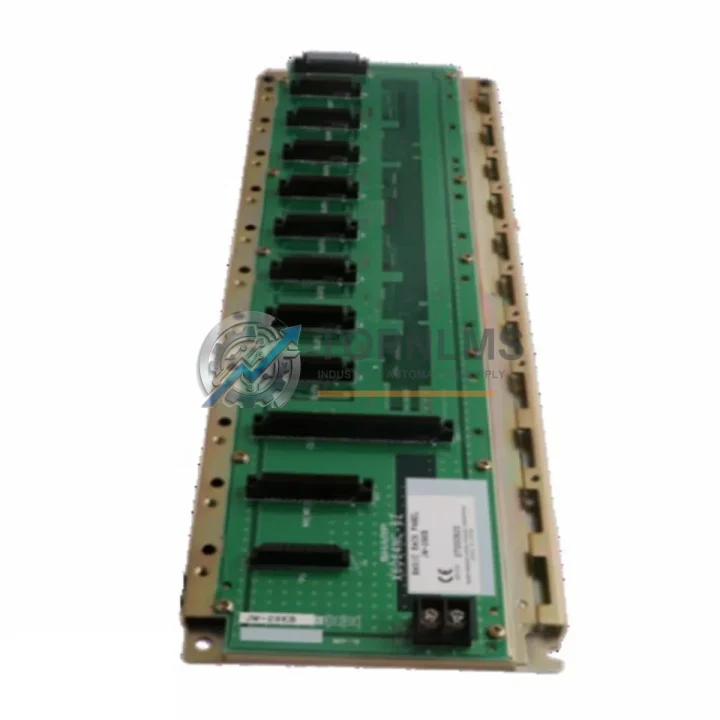

The SHARP JW-28KB is an 8-slot expansion rack panel (backplane) designed for the SHARP JW Series programmable logic controller platform. As SHARP’s JW Series has reached end-of-life status in many markets, plant engineers and maintenance teams are increasingly seeking verified replacement units to sustain production continuity without committing to a full control-system overhaul. TOPNLMS supplies tested JW-28KB backplane units to support exactly this scenario — a controlled, low-risk migration that preserves existing wiring, I/O addressing, and program logic while restoring hardware reliability.

The JW-28KB backplane accommodates up to 8 module slots and serves as the physical and electrical backbone of a JW Series expansion chassis. It interfaces directly with the JW-32CUH3 or JW-22CU CPU modules via the internal bus, distributing power and communication signals to all installed I/O and specialty modules. When the original backplane develops bus faults, connector wear, or power-rail degradation, replacing it with a verified JW-28KB unit is the most cost-effective path to restoring system integrity — far less disruptive than migrating to a new PLC platform mid-production.

For facilities running mixed JW Series configurations, the JW-28KB is commonly installed alongside the JW-14KB (4-slot compact rack) and JW-22KB (6-slot rack) in distributed I/O architectures. Replacing a failed JW-28KB does not require re-addressing I/O modules such as the JW-8AD analog input module or JW-8DY transistor output module, provided the slot positions are maintained. This dramatically reduces commissioning time and eliminates the need for program re-compilation or HMI tag remapping.

Wiring compatibility is a primary concern during any backplane replacement. The JW-28KB uses the same DIN-rail mounting footprint and module locking mechanism as other JW Series racks, meaning field wiring to terminal blocks on installed I/O modules — including discrete input modules like the JW-8DR and analog output modules like the JW-4DA — remains completely undisturbed. The power supply connector accepts the standard JW Series 24 VDC bus input, compatible with the JW-PA2 or equivalent power supply modules already installed in the control cabinet.

Communication continuity is equally straightforward. The JW-28KB backplane does not itself carry a communication protocol address; protocol handling is managed by the CPU and dedicated communication modules such as the JW-21CM (RS-232C) or JW-10CM (RS-485/MEWNET) installed in the rack slots. Replacing the backplane therefore has no impact on network node addressing, baud rate settings, or MEWNET-W topology — the communication modules simply re-seat into the new rack and resume operation.

Physical installation in the control cabinet is a direct swap. The JW-28KB shares the same panel cutout dimensions and DIN-rail clip positions as the original unit. Cabinet space planning, cable management, and grounding connections require no modification. This is particularly valuable in legacy control cabinets where space is constrained and re-engineering the enclosure layout would introduce significant downtime and cost.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful JW-28KB backplane replacement is rarely a single-component exercise. In practice, maintenance engineers conducting a rack swap will simultaneously inspect and often replace adjacent components that share the same service interval. The JW-PA2 power supply module, which feeds the backplane bus, should be tested for output voltage stability before re-commissioning. If the system uses a JW-32CUH3 CPU module, the battery-backed RAM and program retention should be verified after the rack swap to confirm that the ladder logic and I/O configuration remain intact.

For sites expanding I/O capacity during the same maintenance window, the JW-8DR discrete relay output module and JW-8AD analog input module can be added to the newly installed JW-28KB rack without any changes to the CPU program, provided the slot addresses are pre-allocated in the existing I/O table. Similarly, if the facility is transitioning from point-to-point wiring to a networked I/O architecture, a JW-10CM RS-485 communication module can be installed in one of the available slots to enable MEWNET-W connectivity to remote I/O stations.

Where the control cabinet also houses an operator interface, the existing SHARP JW Series-compatible HMI or operator panel will continue to communicate with the CPU via the front-panel programming port or dedicated communication slot — no HMI reconfiguration is required following a backplane replacement. For sites that have already migrated their HMI to a modern touch panel, the communication module slot in the JW-28KB provides the RS-232C or RS-485 interface needed to maintain connectivity.

Retrofit Guidance FAQ

Q: Do I need to re-wire field terminals when replacing the JW-28KB backplane?
No. Field wiring connects to the I/O modules, not to the backplane itself. As long as the I/O modules are carefully removed and re-seated in the same slot positions on the new rack, all field wiring remains connected and undisturbed.

Q: Will my PLC program need to be reloaded after the backplane swap?
No. The program resides in the CPU module (e.g., JW-32CUH3), not in the backplane. Provided the CPU module is handled correctly and its battery is functional, the program is retained throughout the swap procedure.

Q: Are communication protocol settings affected?
No. Protocol configuration (baud rate, node address, MEWNET-W parameters) is stored in the CPU and communication modules. Re-seating these modules into the new JW-28KB rack restores all communication settings automatically.

Q: Does the JW-28KB fit the same panel cutout as the original?
Yes. The replacement JW-28KB shares the identical physical dimensions and DIN-rail mounting positions as the original SHARP unit. No cabinet modification is required.

Q: Can I add new I/O modules to the replacement rack?
Yes, provided the CPU program has pre-allocated addresses for the additional slots. Consult your existing I/O table before adding modules to avoid address conflicts.

Warranty Assurance

Every JW-28KB unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including bus continuity testing, slot connector inspection, and power-rail integrity checks. Units that do not meet specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available to minimize production downtime. Our after-sales team can be reached at [email protected] or +86 18359293191 for technical pre-sales consultation, compatibility confirmation, and post-shipment support.

For procurement teams requiring documentation, TOPNLMS can provide inspection reports, packing lists, and commercial invoices suitable for import clearance. Bulk orders and standing purchase agreements are accommodated with lead-time commitments and reserved stock arrangements.
