Schneider TSXP572634M Ruggedized Unity CPU for Harsh Environments

Product Overview

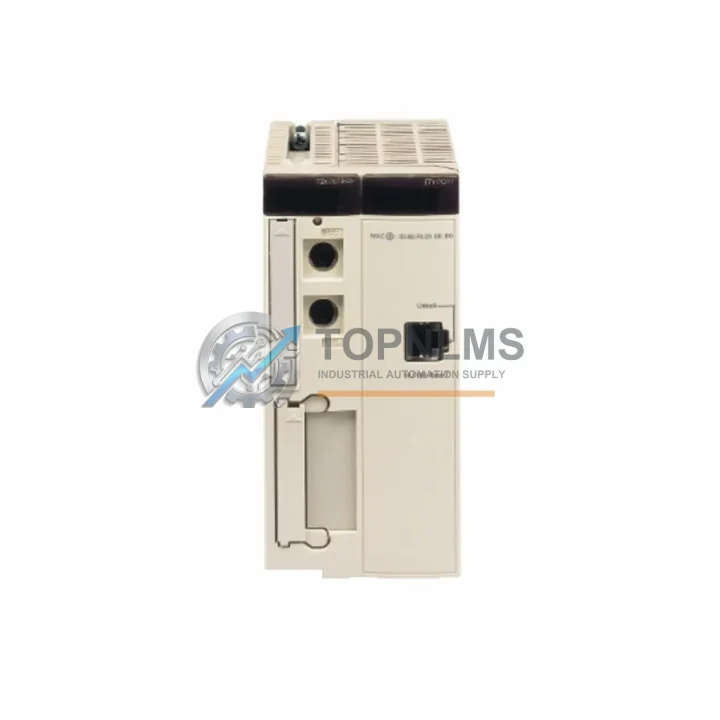

Schneider TSXP572634M Ruggedized Unity CPU for Harsh Environments

The Schneider Electric TSXP572634M is a high-performance Unity CPU module from the TSX Premium series, engineered to deliver continuous, reliable control in the most demanding industrial environments. Designed for mission-critical automation architectures, this CPU module maintains stable operation under conditions of extreme temperature variation, high humidity, heavy dust accumulation, mechanical vibration, and intense electromagnetic interference — making it the preferred choice for engineers specifying control systems in oil & gas, mining, power generation, water treatment, metallurgy, and continuous process manufacturing.

The TSXP572634M integrates seamlessly into Schneider Electric’s TSX Premium platform, supporting the Unity Pro programming environment for IEC 61131-3 compliant ladder logic, function block diagram, structured text, and sequential function chart programming. Its robust processor architecture handles complex real-time control tasks with deterministic scan times, ensuring that safety interlocks, process loops, and production sequences execute without deviation even under peak load conditions.

In high-temperature foundry and steel mill environments where ambient temperatures routinely exceed standard operating limits, the TSXP572634M’s industrial-grade components sustain full processing capacity without thermal throttling. When deployed alongside TSX Premium I/O modules such as the TSXDEY16D2 digital input module and the TSXAEY414 analog input module, the system delivers precise field signal acquisition from thermocouples, pressure transmitters, and flow meters — even when signal cables run through electrically noisy cable trays shared with variable frequency drives and motor starters.

Electromagnetic compatibility is a critical design criterion for the TSXP572634M. The module meets IEC 61000 EMC standards, providing robust immunity to conducted and radiated interference generated by large induction motors, welding equipment, and high-voltage switching gear commonly found in heavy industrial facilities. When paired with the TSXPSY2600M power supply module, the system maintains stable 5 VDC and 24 VDC bus voltages even during mains fluctuations and transient surges, protecting the CPU and connected I/O racks from power-quality events that could otherwise cause spurious resets or data corruption.

Communication flexibility is another hallmark of the TSX Premium platform. The TSXP572634M supports onboard Modbus and FIPIO communication, and can be extended with dedicated communication modules such as the TSXETY110 Ethernet TCP/IP module for SCADA integration, the TSXSCP114 serial link module for legacy device connectivity, and the TSXPBP100 PROFIBUS DP master module for distributed I/O expansion. This multi-protocol capability allows the TSXP572634M to serve as the central controller in heterogeneous automation architectures where PLCs, DCS outstations, variable frequency drives, intelligent motor control centers, and safety relay modules must exchange data reliably across the plant network.

For safety-critical applications, the TSXP572634M can be integrated with Schneider Electric’s Preventa safety modules and external safety relay units to implement emergency stop circuits, light curtain monitoring, and two-hand control functions that comply with IEC 62061 and ISO 13849 safety integrity requirements. In water treatment and chemical processing plants, where continuous operation is mandatory and unplanned downtime carries significant regulatory and environmental consequences, the CPU’s watchdog and self-diagnostic functions provide early fault detection, enabling maintenance teams to address issues during scheduled windows rather than emergency shutdowns.

The module’s DIN-rail mounting and standard TSX Premium rack compatibility — including the TSXRKY4, TSXRKY6EX, and TSXRKY12EX rack families — simplify installation and future expansion. Terminal modules and pre-wired cable assemblies further reduce field wiring time and the risk of connection errors in high-density control cabinets. When replacing aging TSX Micro or Modicon Quantum CPUs in retrofit projects, the TSXP572634M’s Unity Pro compatibility and extensive I/O module library minimize re-engineering effort and accelerate commissioning.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable control system is never a single module — it is an integrated architecture of complementary components working in concert. The TSXP572634M CPU forms the processing core, but its full protective capability is realized when deployed with a carefully selected suite of supporting hardware. The TSXPSY2600M power supply module provides clean, regulated power to the CPU and I/O bus, while surge protection devices installed at the control cabinet entry point guard against lightning-induced transients on field signal cables.

For distributed I/O in remote junction boxes or field panels, the TSXETY110 Ethernet module extends the control network across the plant, allowing remote I/O racks equipped with TSXDEY32D2K digital input modules and TSXDSY32T2K digital output modules to communicate with the central CPU over standard industrial Ethernet infrastructure. In applications requiring analog process control, the TSXAEY414 four-channel analog input module and TSXASY410 analog output module provide the signal conditioning and resolution needed for precise PID loop control of temperature, pressure, flow, and level variables.

Communication integrity is maintained through the TSXSCP114 serial communication module, which bridges the TSX Premium system to legacy Modbus RTU devices such as intelligent motor protection relays, power meters, and variable frequency drives from multiple manufacturers. For plants using PROFIBUS DP fieldbus architecture, the TSXPBP100 master module enables the TSXP572634M to manage up to 125 slave devices — including remote I/O stations, valve positioners, and smart transmitters — on a single fieldbus segment. Safety relay modules and Preventa XPS safety controllers can be wired in series with the CPU’s output circuits to enforce hardware-level safety interlocks that remain active regardless of software state.

Application in Critical Infrastructure

In upstream oil and gas facilities, the TSXP572634M controls wellhead safety shutdown systems, gas compression trains, and pipeline pig launcher/receiver sequences where a single control failure can trigger environmental incidents or personnel injury. Its deterministic scan time and hardware watchdog ensure that emergency depressurization valves receive their open commands within the required response time defined by the facility’s safety instrumented system design.

In underground mining operations, the CPU manages conveyor belt interlocking, ventilation fan control, and dewatering pump sequencing in environments characterized by coal dust, methane gas, and continuous mechanical vibration from blasting and heavy equipment. The module’s vibration-rated components and conformal-coated circuit boards — standard on industrial-grade TSX Premium hardware — resist the ingress of conductive dust particles that would compromise standard commercial-grade electronics.

Power generation facilities rely on the TSXP572634M for turbine auxiliary control, cooling water system management, and transformer protection relay coordination. In water and wastewater treatment plants, the CPU orchestrates dosing pump sequencing, UV disinfection system control, and SCADA data acquisition across multiple treatment stages, operating continuously for years without scheduled reboots. Metallurgical plants use the module to control induction furnace power regulation, rolling mill speed synchronization, and quench tank temperature management — applications where microsecond-level timing accuracy and fault-tolerant operation directly determine product quality and yield.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the TSXP572634M?
Every TSXP572634M shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement or full refund — no lengthy RMA bureaucracy. Our warranty reflects our confidence in the quality of every unit we stock and test.

Q2: How is each unit tested before shipment?
All TSXP572634M units undergo pre-shipment functional verification including power-on self-test, communication port integrity check, and memory read/write validation using Unity Pro diagnostic tools. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the TSXP572634M compatible with my existing TSX Premium racks and Unity Pro projects?
Yes. The TSXP572634M is fully compatible with all TSX Premium rack families (TSXRKY4, TSXRKY6EX, TSXRKY12EX) and is programmed using Unity Pro software. Existing Unity Pro application files can be downloaded directly to the TSXP572634M without modification in most cases, making it an ideal drop-in replacement for failed or end-of-life CPU modules in existing installations.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated stock of TSX Premium series components to support customers with multi-year maintenance contracts and spare parts programs. We can provide scheduled delivery agreements, reserved stock allocations, and advance shipment notifications to ensure your facility never faces an unplanned production stoppage due to CPU module unavailability. Contact our technical sales team to discuss your specific inventory requirements.
