Schneider TSX3721001 Ruggedized PLC Base Controller

Product Overview

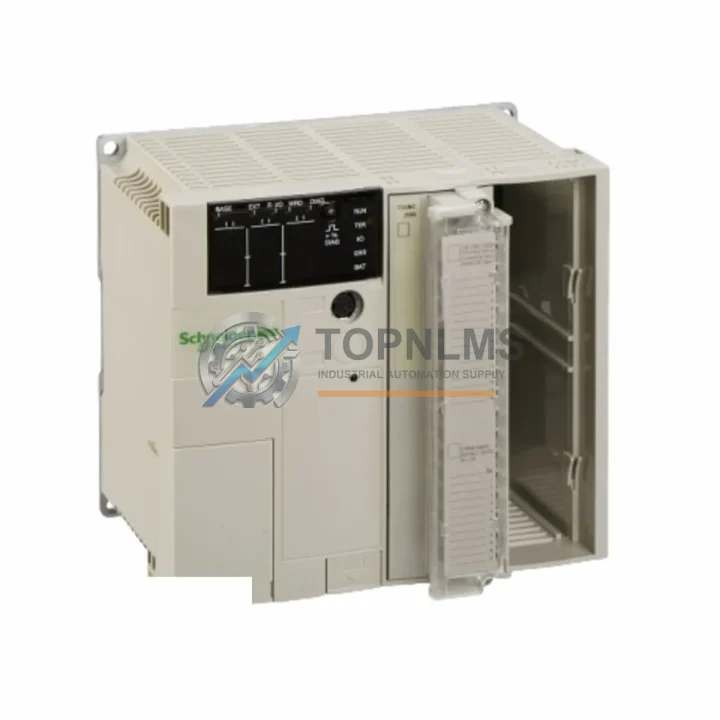

Schneider TSX3721001 Ruggedized PLC Base Controller: Industrial Resilience for Harsh Environments

The Schneider Electric TSX3721001 is a modular PLC base controller from the proven TSX Micro Series, engineered to deliver uncompromising reliability in the most demanding industrial environments. Whether deployed on a continuous petrochemical production line, inside a high-vibration mining control cabinet, or within a moisture-laden water treatment facility, the TSX3721001 maintains stable, deterministic control where lesser systems fail. Its compact modular architecture, robust EMI shielding, and wide operating temperature tolerance make it a cornerstone component for engineers who cannot afford unplanned downtime.

Designed for integration into complex automation architectures, the TSX3721001 serves as the central processing unit coordinating I/O expansion modules, communication modules, and safety relay modules within a unified TSX Micro platform. Its onboard programming port supports Schneider Electric’s Unity Pro and PL7 Pro environments, enabling rapid commissioning and remote diagnostics — critical capabilities for facilities operating around the clock in oil and gas, metallurgy, power distribution, and heavy manufacturing.

Rugged Specifications Table

Comprehensive Protection Solutions

The TSX3721001 is rarely deployed in isolation. In a typical heavy-industry control cabinet, it operates alongside a suite of complementary Schneider Electric components that together form a resilient, fully integrated automation system. The TSX3722001 and TSX3723001 variants within the TSX Micro family extend memory and I/O capacity for larger process loops, while dedicated TSX DMZ 28DT and TSX DMZ 64DTK discrete I/O expansion modules allow engineers to scale digital inputs and outputs without replacing the base controller.

For analog signal conditioning in environments with high electromagnetic interference — common in arc furnace facilities and variable-frequency drive (VFD) enclosures — the TSX AEZ 414 analog input module provides 4-channel, 12-bit resolution acquisition with built-in filtering. Communication integrity is maintained through the TSX SCP 114 PCMCIA communication card, which supports Modbus Plus and Uni-Telway protocols, ensuring the TSX3721001 can exchange data reliably with upstream SCADA systems and downstream field devices even across long cable runs subject to induced noise.

Power supply stability is equally critical. The TSX PSY 2600M regulated 24 VDC power supply module is purpose-matched to the TSX Micro platform, delivering clean, surge-protected power to the base controller and its expansion rack. In safety-critical zones, the TSX3721001 is frequently paired with Preventa XPS safety relay modules to enforce machine guarding and emergency stop logic, providing a hardware-level safety layer independent of the PLC program. Terminal block modules such as the TSX BLY 01 wiring accessories simplify field wiring and reduce installation errors in dense control cabinets. Together, these components form a cohesive, field-proven ecosystem that minimizes integration risk and maximizes mean time between failures (MTBF) in continuous production environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the TSX3721001 manages wellhead control panels, compressor sequencing, and pipeline valve actuation where 24/7 uptime is non-negotiable. Its deterministic scan cycle and hardware watchdog timer ensure that a software fault triggers a safe, controlled shutdown rather than an uncontrolled process excursion.

In mining and mineral processing, the controller withstands the constant mechanical vibration of conveyor drives, crusher motors, and ball mill systems. Its DIN-rail mounting and conformal-coated PCB options resist the fine conductive dust that penetrates standard enclosures, preventing insulation breakdown and short-circuit faults that cause costly production halts.

Within power generation and distribution substations, the TSX3721001 handles transformer tap-changer control, capacitor bank switching, and protection relay coordination. Its Modbus RTU communication capability allows seamless integration with energy management systems (EMS) and remote terminal units (RTUs) across RS-485 multi-drop networks spanning hundreds of meters.

In municipal water and wastewater treatment plants, the controller governs pump station sequencing, chemical dosing systems, and aeration basin control. The wide humidity tolerance and corrosion-resistant housing materials ensure reliable operation in the high-moisture, chemically aggressive atmospheres typical of these facilities.

For metallurgical and steel production environments, where radiated heat from furnaces and induction heaters creates extreme thermal stress on electronic components, the TSX3721001’s extended operating temperature range and thermal management design maintain processing integrity through continuous casting, rolling mill, and heat treatment cycles.

Security & Quality FAQ

Q1: Does the TSX3721001 come with a warranty, and what does it cover?
Yes. Every TSX3721001 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund — no bureaucratic delays.

Q2: How is each unit tested before shipment?
All TSX3721001 controllers undergo a multi-point functional inspection prior to dispatch: power-on self-test (POST) verification, I/O channel continuity checks, communication port handshake testing, and visual inspection for physical damage. Units that do not pass all checkpoints are quarantined and not shipped. A test report is available upon request for critical procurement projects.

Q3: Is the TSX3721001 compatible with existing TSX Micro expansion modules and legacy Schneider Electric wiring?
Yes. The TSX3721001 is fully backward-compatible with the TSX Micro expansion module ecosystem, including discrete I/O modules, analog modules, and communication cards designed for the TSX 37 platform. Existing PL7 Pro programs can be loaded directly without modification, making it an ideal drop-in replacement for aging or failed base controllers in live production systems.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare parts programs?
Absolutely. TOPNLMS maintains dedicated stock of TSX Micro Series components — including the TSX3721001 — to support planned maintenance schedules, emergency breakdowns, and multi-unit capital projects. We work with procurement teams to establish blanket orders and reserved inventory arrangements, ensuring your facility is never left waiting for a critical spare during a production emergency. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
