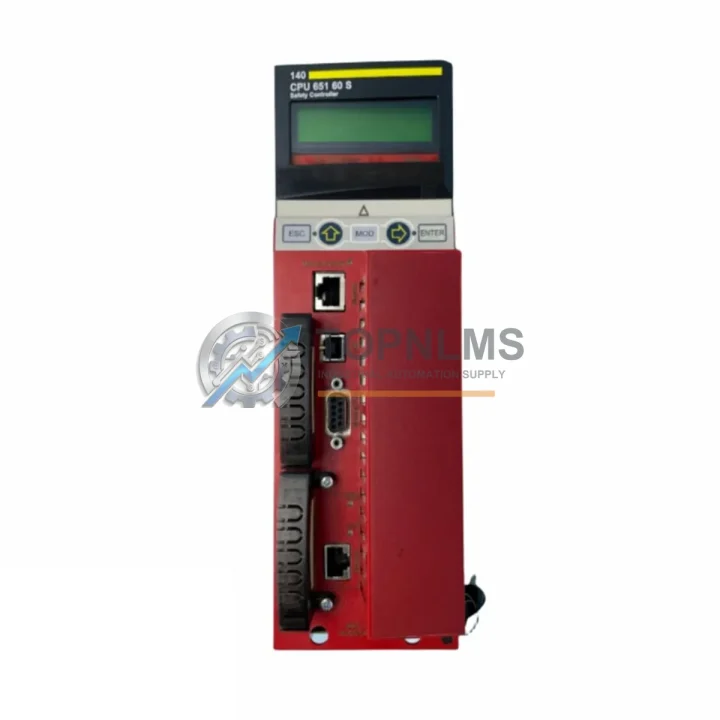

Schneider 140CPU65160S Replacement for Quantum PLC

Product Overview

Schneider 140CPU65160S Replacement for Quantum PLC: Seamless Migration & Upgrade

The Schneider Electric 140CPU65160S is a high-performance CPU module designed for the Modicon Quantum automation platform — one of the most widely deployed process-control architectures in heavy industry, oil & gas, water treatment, and power generation. As legacy Quantum systems approach end-of-life or require capacity expansion, the 140CPU65160S serves as a direct replacement and upgrade path for earlier CPU variants such as the 140CPU43412A, 140CPU53414B, and 140CPU65150, offering enhanced memory, faster scan times, and broader communication support without requiring a full rack redesign.

For facilities running aging Modicon Quantum racks, migrating to the 140CPU65160S preserves the existing 140XBP01600 or 140XBP01000 backplane infrastructure, eliminating the cost and downtime associated with full-system replacement. The module slots directly into the standard Quantum rack, retaining compatibility with installed 140CPS11420 or 140CPS21400 power supply modules and existing field wiring terminations. No rack rewiring is required in the majority of retrofit scenarios.

Communication continuity is a critical concern during any PLC migration. The 140CPU65160S supports Modbus Plus and Modbus TCP/IP natively, ensuring backward compatibility with existing SCADA systems, HMI panels, and remote I/O drops. Sites using 140NOE77101 Ethernet communication modules or 140NOM21100 Modbus Plus network option modules can retain these components without protocol reconfiguration. For installations requiring expanded connectivity, the CPU’s integrated Ethernet port supports direct connection to Wonderware, iFIX, or Citect SCADA environments.

Field I/O compatibility is preserved across the migration. Existing 140ACI04000 analog input modules, 140DDI35300 discrete input modules, and 140DDO35300 discrete output modules remain fully operational under the 140CPU65160S without modification to I/O maps or channel addressing. This is particularly valuable in process industries where re-engineering I/O assignments would require extensive loop testing and process shutdown.

Program migration from earlier Quantum CPUs is straightforward using Unity Pro or EcoStruxure Control Expert software. Existing ladder logic, function block diagrams, and structured text programs can be imported, validated, and downloaded to the 140CPU65160S with minimal modification. The expanded user memory (up to 7 MB) accommodates larger application programs, enabling consolidation of previously distributed control logic into a single CPU without performance degradation.

Physical installation follows the standard Quantum form factor. The module occupies a single slot in the Quantum rack and is secured by the standard front-panel locking mechanism. No special tools or mounting hardware are required. Replacement can typically be completed within a planned maintenance window of two to four hours, including program download, I/O verification, and communication testing — significantly reducing unplanned downtime risk compared to full-platform migrations.

For sites requiring interim operation during the migration process, the 140CPU65160S supports hot-standby redundancy configurations when paired with a 140CPU65160S redundant unit and 140CHS11000 hot-standby cable, providing continuous process control during switchover testing. This architecture is commonly specified in critical infrastructure applications where zero-downtime migration is a contractual requirement.

Procurement lead times for legacy Quantum CPU modules from OEM channels can extend to 16–26 weeks. TOPNLMS maintains verified stock of the 140CPU65160S, enabling same-week dispatch for urgent replacement requirements. Each unit undergoes functional verification prior to shipment, including power-on self-test, memory integrity check, and communication port validation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Quantum platform migration typically involves more than the CPU module alone. When upgrading to the 140CPU65160S, engineers commonly address the following associated components in the same project scope. The 140NOE77101 Ethernet TCP/IP communication module is frequently upgraded in parallel to enable full Modbus TCP/IP connectivity to modern SCADA and MES systems. Where Modbus Plus network segments remain in service, the 140NOM21100 network option module provides the bridge between legacy field devices and the new CPU architecture.

Power supply integrity is verified during CPU replacement; sites with aging 140CPS11420 units often schedule simultaneous power supply replacement to eliminate a secondary failure point. For installations requiring expanded discrete I/O capacity, the 140DDI35300 and 140DDO35300 modules are added to available rack slots during the same maintenance window. Analog signal conditioning is addressed through the 140ACI04000 analog input module, which supports 4–20 mA and voltage input ranges compatible with most field transmitters.

Programming and commissioning require a TSXPCX3030 or USB-to-serial programming cable for initial connection, followed by Unity Pro or EcoStruxure Control Expert for program upload, modification, and download. HMI panels connected via Modbus TCP/IP — such as Schneider Electric HMIGTO series or third-party Weintek and Proface terminals — require no protocol reconfiguration when the 140CPU65160S retains the same IP addressing scheme as the replaced unit. Signal isolators and terminal blocks within the control cabinet are unaffected by the CPU swap and do not require replacement under standard migration conditions.

Retrofit Guidance FAQ

Q: Can the 140CPU65160S replace a 140CPU43412A without rack modification?
A: Yes. The 140CPU65160S uses the same Quantum rack slot form factor. No backplane or rack hardware changes are required. Verify power supply capacity (140CPS11420 or 140CPS21400) is sufficient for the new CPU’s power draw before installation.

Q: Will existing Modbus Plus field devices continue to operate after the CPU swap?
A: Yes. The 140CPU65160S retains native Modbus Plus support. Existing 140NOM21100 network option modules and field device node addresses remain valid. No re-addressing or protocol reconfiguration is required.

Q: Can I import my existing Concept or ProWORX program into the new CPU?
A: Programs written in Concept or ProWORX must be converted using Unity Pro or EcoStruxure Control Expert’s import utilities. Ladder logic and function block structures are generally preserved; review I/O addressing and derived data types after import. A full simulation run is recommended before live download.

Q: How much physical space does the 140CPU65160S require in the control cabinet?
A: The module occupies a single standard Quantum rack slot. No additional DIN rail space or cabinet modification is required. The front-panel depth is identical to previous Quantum CPU generations, ensuring door clearance is maintained.

Q: What is the recommended procedure for minimizing downtime during replacement?
A: Upload and back up the existing program before removal. Prepare the replacement unit with the program pre-loaded offline. Schedule replacement during a planned shutdown window. After installation, perform I/O force tests and communication verification before returning to automatic mode. Total replacement time is typically two to four hours for experienced engineers.

Q: Is hot-standby redundancy supported?
A: Yes. The 140CPU65160S supports hot-standby redundancy when paired with a second 140CPU65160S unit and connected via the 140CHS11000 hot-standby cable. This configuration provides automatic switchover in the event of a primary CPU fault, with no interruption to process control.

Warranty Assurance

Every 140CPU65160S unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol including power-on self-test, memory read/write verification, communication port functional check, and visual inspection for physical integrity. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to fault verification. Return shipping for defective units under warranty is coordinated by TOPNLMS. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

For urgent replacement requirements — including unplanned shutdowns and emergency maintenance scenarios — TOPNLMS offers priority dispatch with same-week shipment from verified stock. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared for all international shipments to facilitate customs clearance.

For procurement inquiries, technical compatibility questions, or warranty support, contact the TOPNLMS technical team directly.
