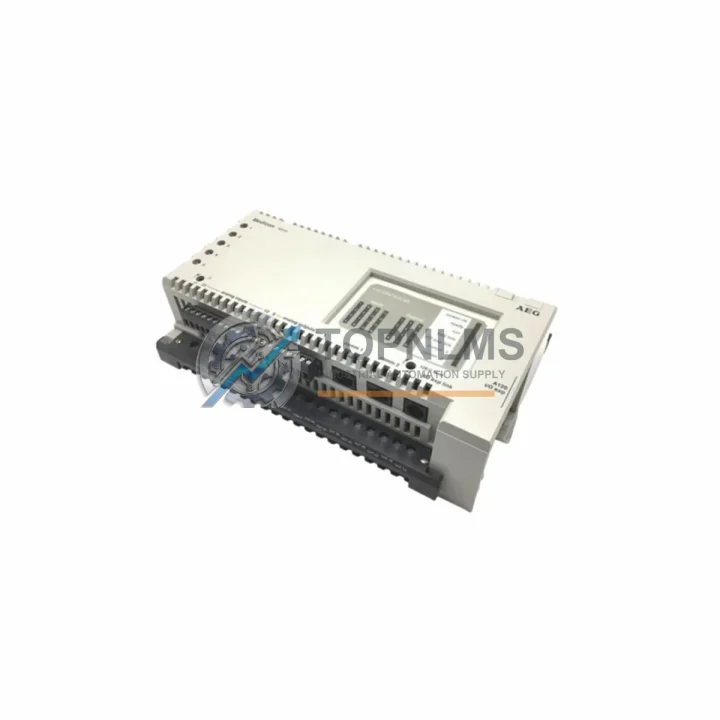

Schneider 110 CPU 612 00 Replacement/Upgrade for Modicon Micro

Product Overview

Schneider 110 CPU 612 00 Replacement/Upgrade Solution for Modicon Micro: Smooth Transition from Legacy PLC Systems

The Schneider Electric 110 CPU 612 00 is a CPU module from the Modicon Micro series — a compact, rack-mounted programmable logic controller platform widely deployed across manufacturing, water treatment, building automation, and process control applications throughout the 1990s and early 2000s. As the Modicon Micro platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face a critical decision: source a verified replacement unit to extend the life of the existing system, or plan a structured migration to a modern control architecture.

At TOPNLMS, we specialize in exactly this scenario. Whether you need a direct drop-in replacement for a failed 110 CPU 612 00 to minimize unplanned downtime, or you are planning a phased upgrade of your Modicon Micro control cabinet to a current-generation platform, our team provides verified hardware, pre-shipment testing, and technical guidance to support your project from procurement through commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration or replacement of the 110 CPU 612 00 rarely involves the CPU module in isolation. In most Modicon Micro installations, the CPU shares a rack with discrete and analog I/O modules such as the 110 DAI 840 00 (16-point 24 VDC digital input) and 110 DAO 840 00 (16-point transistor digital output), which typically remain serviceable and can be retained during a CPU swap. The rack power supply — commonly a 110 PSU 100 00 or 110 PSU 200 00 — should be inspected and load-tested before recommissioning, as aging capacitors in legacy PSUs are a frequent secondary failure point.

Communication infrastructure is another key consideration. Many Modicon Micro systems use a 110 NOM 211 00 or 110 NOM 212 00 Modbus/Uni-Telway communication module to interface with SCADA, HMI panels, or remote I/O drops. These modules are protocol-compatible with the replacement CPU and can be retained without reconfiguration in most cases. If your site is planning a protocol upgrade to Modbus TCP or Ethernet/IP as part of the modernization, a gateway module or a migration to the Modicon M241 platform with its onboard Ethernet port provides a natural upgrade path while preserving existing field wiring.

For sites using remote I/O expansion, the 110 XBE 100 00 I/O bus extender and associated remote I/O heads remain compatible with a direct CPU replacement and do not require re-addressing. Programming cables — specifically the TSX PCX 1031 USB-to-serial adapter — are required to upload or download programs via the terminal port on the 110 CPU 612 00, and should be confirmed available on the engineering workstation before the maintenance window begins.

Where the control cabinet also houses a legacy HMI or operator panel communicating via Uni-Telway, the replacement CPU maintains full protocol compatibility, ensuring that operator screens, alarm displays, and setpoint entry functions continue to operate without modification to the HMI application. Signal isolators and terminal multiplier modules installed between the CPU rack and field instrumentation are unaffected by the CPU replacement and require no recalibration.

Retrofit Guidance FAQ

Q: Can I swap the 110 CPU 612 00 without rewiring the control cabinet?
A: Yes. A direct replacement unit installs into the same rack slot using the existing backplane connector. No field wiring changes are required. Confirm the rack bus is de-energized before removal.

Q: Do I need to reload the PLC program after replacing the CPU?
A: If the original program was saved to a PCMCIA memory card, it can be re-inserted into the replacement CPU and the program will load automatically on power-up. If no card is available, the program must be downloaded from the engineering PC using PL7 Pro or Concept software via the TSX PCX 1031 programming cable.

Q: Is the replacement CPU compatible with my existing Modbus RTU network?
A: Yes. The 110 CPU 612 00 replacement unit supports Modbus RTU and Uni-Telway on the built-in serial port. No changes to SCADA polling addresses or HMI communication parameters are required.

Q: What if my rack also has a 110 NOM communication module installed?
A: The communication module operates independently of the CPU and will resume normal operation after the CPU replacement without reconfiguration, provided the module firmware and address settings are unchanged.

Q: How much physical space does the replacement unit require?
A: The replacement 110 CPU 612 00 occupies the same single rack slot as the original. No additional panel space or DIN rail modification is needed.

Q: Can TOPNLMS support a phased migration to a newer Schneider platform?
A: Yes. We can supply both the immediate replacement unit to restore production and advise on a structured migration plan to the Modicon M221 or M241 series, including I/O mapping, communication protocol bridging, and program conversion support.

Warranty Assurance

Every 110 CPU 612 00 unit shipped by TOPNLMS undergoes pre-shipment functional testing to verify power-on operation, communication port integrity, and I/O bus handshake before dispatch. Units are shipped in anti-static packaging with full traceability documentation.

All units are covered by a 12-month warranty from the date of shipment. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund, subject to inspection. Our after-sales response target is within 24 business hours for warranty claims.

We maintain stock of Modicon Micro series components to support emergency procurement requirements. Express shipping to mainland China, Southeast Asia, the Middle East, and Europe is available. Lead times and shipping options are confirmed at the time of order. For urgent requirements, contact our team directly to confirm stock availability and dispatch schedule before placing your order.

For volume procurement, OEM partnerships, or project-based supply agreements, TOPNLMS offers dedicated account support and competitive pricing on multi-unit orders.
